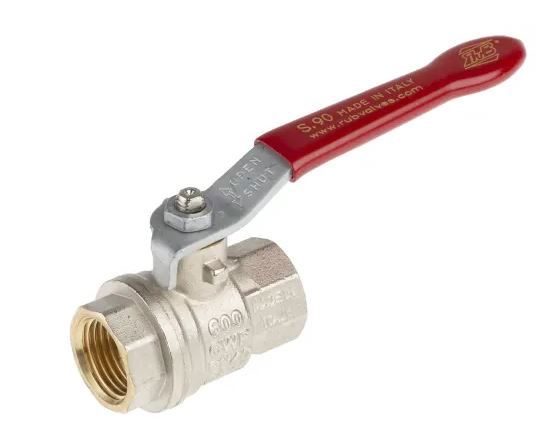

Fischer Panda 32.10.12.015H 1 1/4" Brass Ball Valve

Fischer Panda 1 1/4" Hot Pressed Brass Ball Valve (32.10.12.015H)

The Fischer Panda 32.10.12.015H is a heavy-duty  1 1/4" female-threaded hot pressed brass ball valve (Kugelhahn 1 1/4"). Rated for operating pressures up to 40 bar (PN40), this high-pressure shut-off valve is engineered for marine generator raw water intake systems, engine cooling circuits, sea-chests, and auxiliary fluid lines.

Manufactured from hot-pressed brass (CW617N) for increased structural density and high mechanical strength, the valve features a chrome-plated brass ball and PTFE (Teflon) seats for smooth, low-torque operation and long service life. The lever handle allows rapid quarter-turn isolation during routine cooling maintenance or emergency shut-off.

Key Features

• High Pressure Rating (PN40): Built to withstand continuous pressure up to 40 bar (580 PSI), ensuring high thermal and pressure headroom in raw-water and cooling circuits.

• Hot-Pressed Brass Body: Forged under high pressure to eliminate internal porosity and casting defects, maximizing burst strength and structural durability.

• Full-Bore Flow Design: Minimizes internal flow restriction, pressure drop, and turbulence through raw-water intake circuits.

• Blowout-Proof Stem & PTFE Seats: Engineered with low-friction PTFE seals and an internally installed stem for safety under elevated pressures.
