Fusion 010-11076-01 NMEA 2000 Cable 6m (19 ft) Specs

Fusion NMEA 2000 Backbone/Drop Cable (6 m / 19 ft)

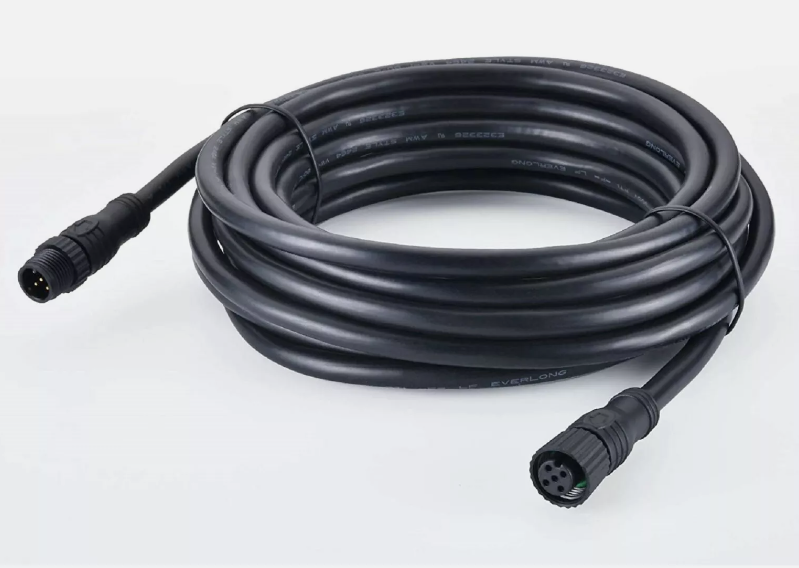

The Fusion 010-11076-01 (Garmin Part Number: 010-11076-01) is a high-grade, marine-standard NMEA 2000 Micro-C cable (6.0 m / 19 ft). Designed by Garmin/Fusion Entertainment, it serves a dual role in marine NMEA 2000 communications networks: acting either as a backbone extension cable between T-connectors or as a drop cable connecting marine entertainment head units (such as Fusion Apollo, RA series, and AV series stereos) and MFD displays directly to a T-connector.

Constructed with fully shielded 5-conductor twisted-pair copper wiring (2* Power, 2* Data, 1* Drain/Shield), this cable prevents electromagnetic interference (EMI) from ignition systems and high-current power cables. Factory-molded 5-pin Micro-C male and female threaded connectors with rubber internal O-rings guarantee IPX7 water immersion protection behind dashboard consoles and under decks.

Key Features

• Dual Functionality: Can be used as a drop cable (connecting a single device to the backbone) or as a backbone cable extension (bridging distant T-connectors).

• Fully Shielded Low-Loss Wiring: Foil and braid shielding protects NMEA 2000 CAN bus data lines against noise from engines, alternators, and VHF radios.

• IPX7 Waterproof Connectors: Overmolded Micro-C strain reliefs with ribbed brass locking nuts prevent moisture intrusion, salt corrosion, and signal degradation.

• Universal NMEA 2000 Compatibility: Plug-and-play compatible with all NMEA 2000 certified devices across Fusion, Garmin, Simrad, Lowrance, Raymarine (SeaTalkng via adapter), and Furuno networks.

Specifications
