Fusion 010-11078-00 NMEA 2000 T-Connector Specs

Fusion NMEA 2000 T-Connector

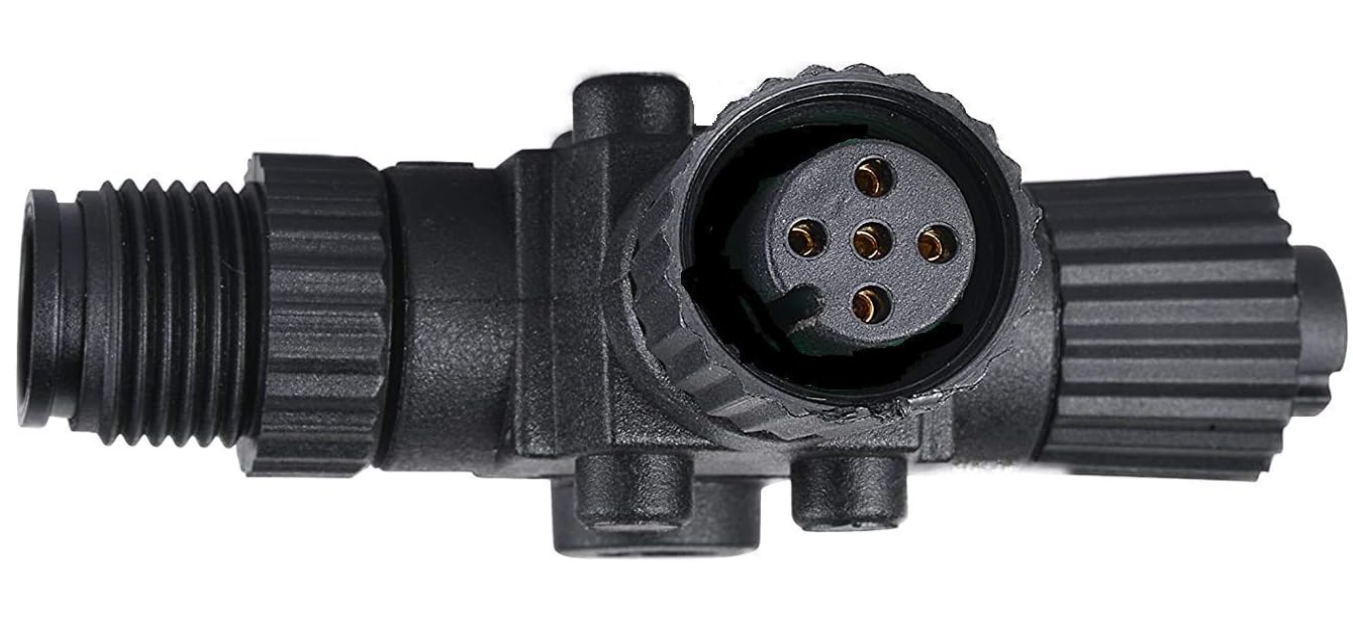

The Fusion 010-11078-00 (Garmin Part Number: 010-11078-00) is an essential marine-grade NMEA 2000 Micro-C T-connector (network tee). Engineered to expand CAN bus communications backbone lines, it provides the physical connection port required to attach additional electronic devices—such as Fusion marine stereos, remotes, MFDs, sensors, or power taps—to a vessel's NMEA 2000 network.

Constructed from impact-resistant, non-corrosive marine polymer, it features standard 5-pin Micro-C connections: two horizontal ports (one male, one female) for extending the linear backbone cable run, and one vertical right-angle female port for connecting a device drop cable. Internal gold-plated contacts and threaded brass coupling nuts ensure a low-resistance connection with IPX7 waterproof sealing.

Key Features

• Universal NMEA 2000 Compatibility: Connects seamlessly into any standard Micro-C NMEA 2000 network backbone across Fusion, Garmin, Simrad, Lowrance, B&G, Raymarine, and Furuno installations.

• Compact Right-Angle Footprint: Designed to fit in tight spaces behind dashboards, under consoles, or inside wiring raceways.

• Modular Multi-Tee Construction: Side-by-side keying allows multiple T-connectors to be locked together directly to form a centralized multi-port distribution block.

• Gold-Plated Brass Contacts: Corrosion-resistant internal pin construction provides maximum electrical conductivity and signal integrity in salty marine environments.

Specifications
