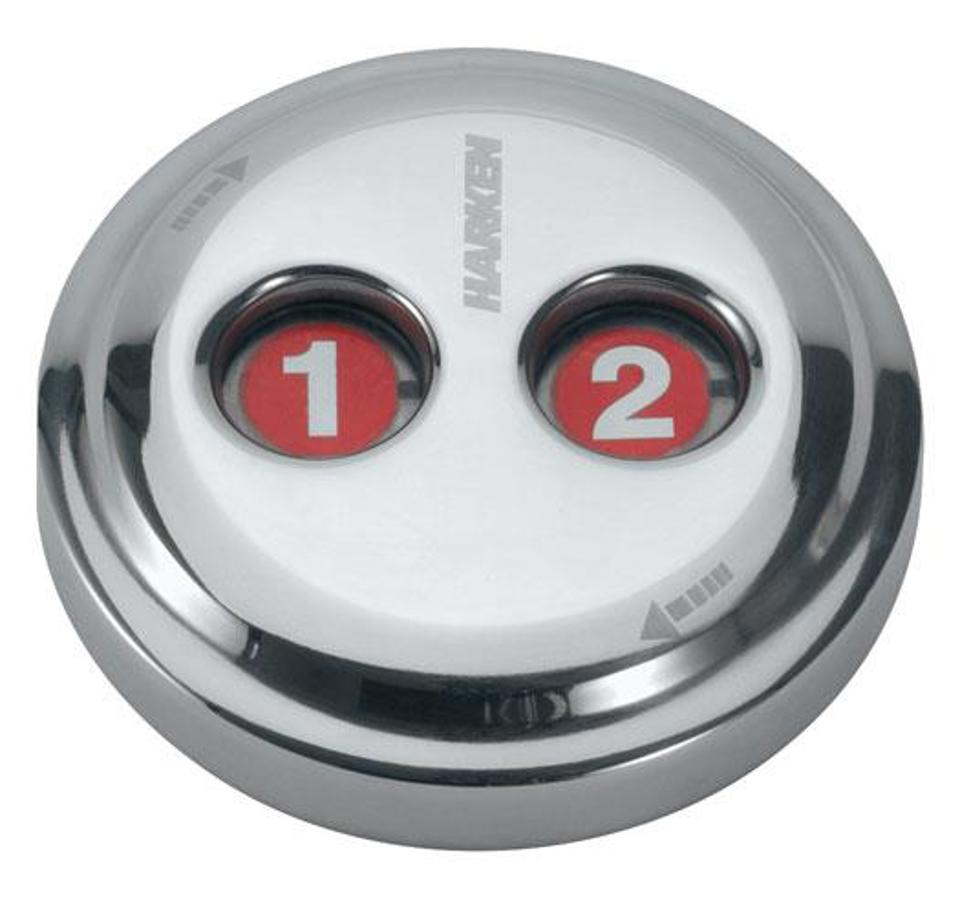

Harken DSDSS1 Digital System Switch

Harken DSDSS1 Digital System Switch

The Harken DSDSS1 is a high-reliability, low-profile digital deck switch engineered to control high-load electrically powered or hydraulic sailboat systems, including electric winches, windlasses, and furling units. Designed to replace traditional mechanical foot switches that are prone to mechanical failure and water intrusion, the DSDSS1 utilizes solid-state digital switching to deliver maintenance-free operation in harsh marine deck environments.

The switch features a dual-function dynamic activation profile requiring a firm, intentional press to activate, preventing accidental operation from stray sheets, halyards, or crew foot traffic. Sealed inside an impact-resistant, UV-stabilized housing with an IP67 waterproof rating, the DSDSS1 sends a low-voltage digital control signal directly to a Harken Digital System Controller or relay box, protecting the switch mechanism from high DC amperage arcs and thermal degradation.

Key Features

• Solid-State Digital Reliability: Eliminates moving mechanical contacts and high-amperage arcing, dramatically increasing service life over traditional foot switches.

• Accidental Activation Resistance: Calibrated press threshold requires deliberate continuous pressure, preventing accidental engagement by running rigging or standing crew.

• Low-Voltage Signal Control: Switches low-current control signals to an external relay/controller, isolating the deck control surface from heavy DC battery current.

• Waterproof & UV Sealed: IP67-sealed enclosure prevents water ingress from heavy deck wash, spray, or continuous submersion.

• Low-Profile Deck Mount: Sleek, flush-mount design minimizes line snag hazards on active deck areas.

Specifications
