Hella Marine 2840W 2NM Masthead Light 12V White

Hella Marine 2840W 2NM Masthead Light 12V White

Low stock: 1 left

Regular price $ 30.36 USD
Regular price $ 15.18 USD Sale price $ 30.36 USD
Sale Pre Order
Shipping calculated at checkout.

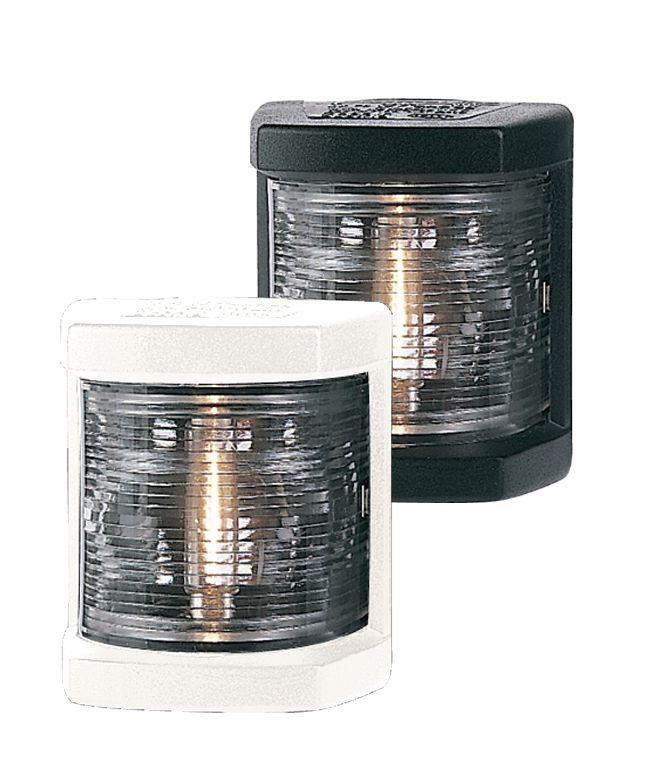

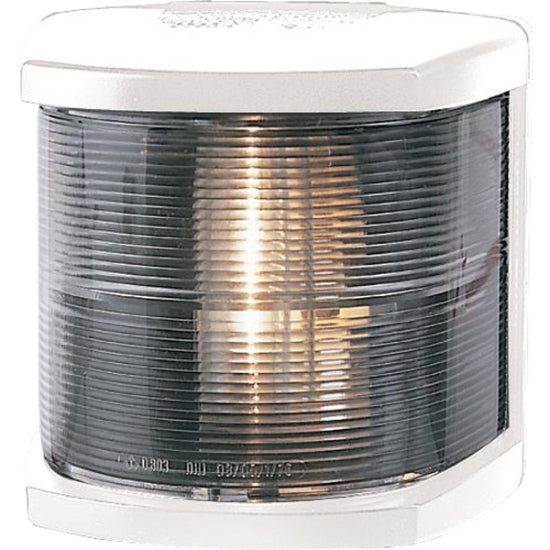

Hella Marine 2NM Masthead 12V Navigation Light (White Housing)

The Hella Marine 2840W (Hella 12V Global Reference: 2LT 002 840-011) is a classic, high-reliability 2 Nautical Mile (2NM) Masthead navigation light designed for powerboats and sailing vessels up to 12 meters (39 feet) in length. Engineered to project a crisp $225^\circ$ forward arc of white light, it complies fully with international IMO COLREG 72, USCG, and ABYC A-16 navigation safety standards for night operations.

Featuring a UV-stabilized white thermoplastic housing and a high-grade clear PMMA acrylic lens, the 2840W utilizes Hella Marine's signature snap-lock housing base for tool-free bulb access and maintenance.

Key Features

  • IMO COLREG 72 & USCG Certified: Approved for navigation light compliance on motor and sailing craft up to 12 m (39 ft).

  • Tool-Free Snap-Lock Base: Innovative snap-fit housing design enables effortless, tool-free bulb replacement without unscrewing the base mount.

  • Saltwater & UV Corrosion Proof: High-impact non-corrosive plastic polymer body and lens won't pit, rust, or degrade under harsh UV exposure.

  • Vibration-Damped Contact System: Internal spring-loaded bulb contacts maintain constant conductivity under engine vibration and wave pounding.

Specifications

Feature Specification
Manufacturer / Brand Hella Marine
Part Code / SKU 2840W (Global Ref: 2LT 002 840-011)
Navigation Light Type Masthead Light (225° Forward White Arc)
Visibility Range 2 Nautical Miles (2 NM)
Vessel Length Compatibility Power & Sailboats up to 12 m (39 ft)
Operating Voltage 12 V DC
Bulb Specification 12V / 10W BAY15d Incandescent (LED Upgrade Capable)
Power Consumption 10 W (Approx. 0.83 A at 12V DC)
Housing Color / Material White UV-Stabilized Impact-Resistant Plastic Polymer
Lens Material PMMA Acrylic Lens (Clear)
Mounting / Installation Flat Surface Vertical/Mast Mount with Snap-Lock Housing
Cable Entry Through-Base Rubber Grommet Seal
Dimensions (H * W * D) 75 mm * 63 mm * 53 mm
Compliance / Approvals IMO COLREG 72, USCG, ABYC A-16, RINA, Maritime NZ
