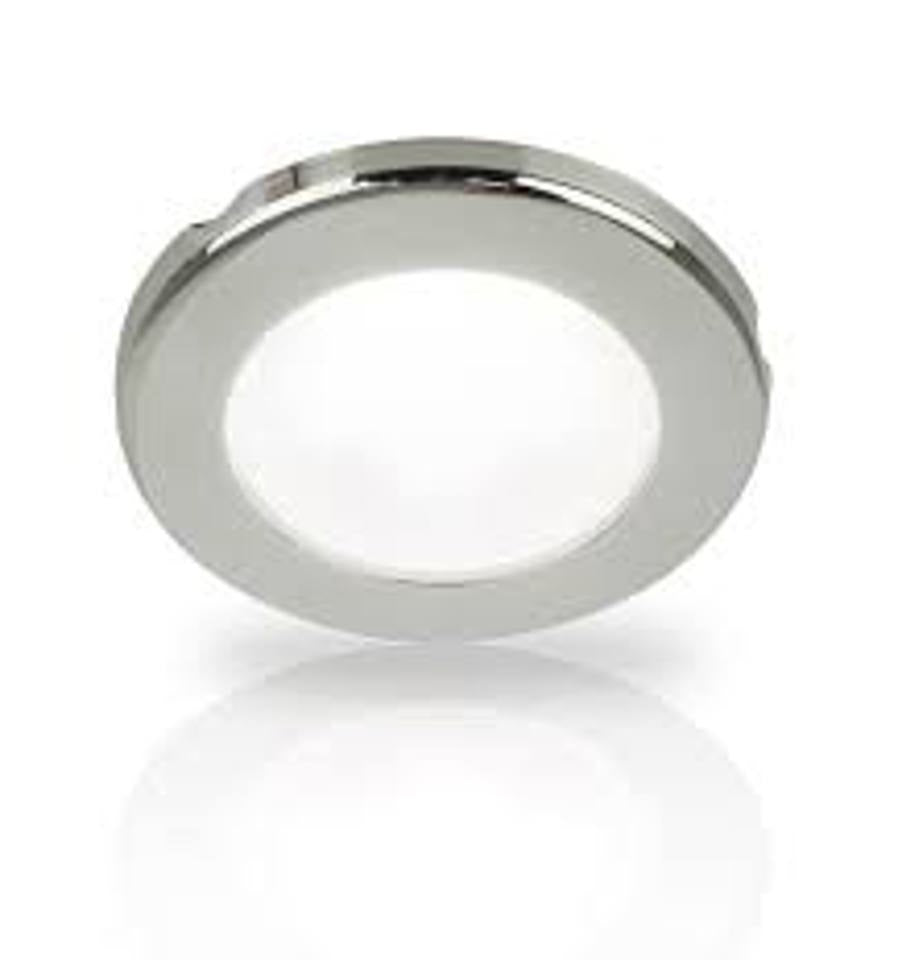

Hella Marine EuroLED 75 Downlight - 12V White (2JA 958 110-027)
The Hella Marine 2JA 958 110-027 (EuroLED 75) is a premium, compact recessed LED downlight engineered for interior salons, cabins, wheelhouses, and covered exterior overhangs on 12V pleasure craft and commercial vessels. Featuring a mirror-finish polished 316 marine-grade stainless steel rim, it projects a clear, even White (5000K) beam to create a bright and comfortable ambiance onboard.
Designed for standard 12V DC electrical architectures, the light features a surface screw-mount configuration covered by a snap-on stainless steel bezel. The completely sealed, solid-state LED engine carries an IP67 ingress rating, making it completely impervious to moisture, high humidity, and direct washdown spray.
Key Features
-
Polished 316 Stainless Steel Rim: Superior corrosion resistance and luxury mirror finish designed for salt-air marine environments.
-
Hermetically Sealed IP67 Rating: Potted solid-state construction prevents moisture intrusion in humid cabin and exterior headliner spaces.
-
Screw-Mount Installation: Standard screw mounting concealed behind a snap-on stainless steel outer bezel.
-
Cool-Running Efficiency: Low thermal output protects surrounding overhead materials and paneling.
-
Ultra-Low Power Draw: Consumes under 3.0 W (<0.25A @ 12V DC), preserving battery reserves.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Hella Marine |
| Part Code / Master SKU | 2JA 958 110-027 |
| Component Category | Interior & Covered Exterior Lighting / Recessed LED Downlights |
| Light Output / Color | White (5000K) |
| Operating Voltage | 12.0V DC Nominal (9–16V DC Range) |
| Power Consumption | < 3.0 W (< 0.25A @ 12V DC) |
| Cable Specifications | 150 mm (∼ 6.0") Pre-wired Marine Grade Tinned Copper Cable |
| Lens Material | UV-Resistant High-Impact Optical Acrylic |
| Rim Finish / Material | Polished 316 Marine-Grade Stainless Steel |
| Mounting Style | Screw Mount (Cutout Diameter: ∅ 50.0 mm / 2.0") |
| Ingress Protection Rating | IP67 Submersible & Washdown Proof |
| Dimensions (Diameter * Depth) | ∅ 72.0 mm * 16.0 mm Recessed Depth (∅ 2.83" * 0.63") |
| Unit Weight | 0.10 kg (∼ 0.22 lbs / 100 g) |
| Compliance & Approvals | CE, ISO 8846 (Ignition Protected), RoHS Compliant |
