Hella Marine 2JA 958 340-117 EuroLED 95 Gen2
Hella Marine 2JA 958 340-117 EuroLED 95 Gen2
Low stock: 1 left
Couldn't load pickup availability

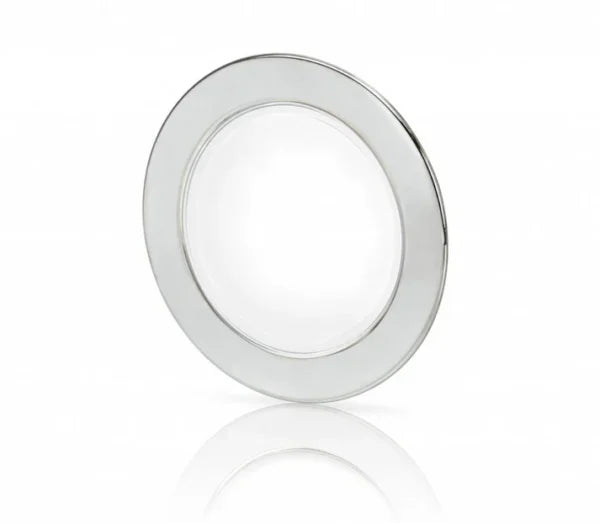

Hella Marine EuroLED 95 Gen2 White/Blue LED Downlight (Round / 316SS Rim)
The Hella Marine 2JA 958 340-117 (and single-pack equivalent 2JA 958 340-111) is a low-profile ∅ 95 mm dual-color (5000K Daylight White / Accent Blue) recessed LED downlight from the second-generation EuroLED 95 series. Delivering over 420 actual lumens of glare-free illumination through a broad 90° diffused acrylic lens, it provides crisp, neutral white working light for helms, cockpits, and saloons, paired with a secondary blue LED mode to create accent ambient lighting.
Constructed with a mirror-polished 316 marine-grade stainless steel round rim and an IP6K9K hermetically sealed composite body, the EuroLED 95 Gen2 is completely impervious to saltwater corrosion, long-term UV degradation, and high-pressure washdowns. Featuring Multivolt™ 9-33 V DC power regulation, it operates seamlessly across both 12V and 24V marine electrical circuits.
Key Features
-

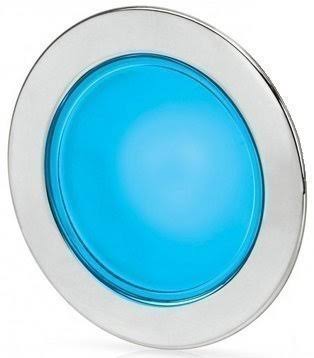

Dual-Color Lighting (5000K White + Blue): Produces 420 lumens of 80+ CRI bright daylight white working light alongside an accent blue secondary mode.
-
316 Marine-Grade Stainless Steel Rim: High-gloss polished stainless steel finish resists pitting, rust, and harsh marine exposure.
-
IP6K9K Hermetic Ingress Protection: Fully sealed solid-state assembly suitable for interior spaces as well as exposed wet exterior hardtops and t-tops.
-
Multivolt 9–33V DC Operation: Internal circuitry protects against voltage fluctuations, spikes, and voltage drop across 12V and 24V marine systems.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Hella Marine |
| Part Code / SKU | 2JA 958 340-117 (Single Pack Variant: 2JA 958 340-111) |
| Series | EuroLED 95 Gen2 |
| Light Output / Color Temp | Dual-Color: 5000K Daylight White / Secondary Blue |
| Luminous Output | > 420 Actual Lumens (White Mode) |
| Color Rendering Index (CRI) | 80+ CRI |
| Beam Angle | 90° Wide Diffused Flood |
| Operating Voltage | 9-33 Volts DC (Multivolt 12V / 24V) |
| Power Consumption | ≤ 6 W (< 0.50A @ 12V / < 0.25A @ 24V) |
| Rim Material & Finish | 316 Marine-Grade Stainless Steel (Round, Polished) |
| Lens Material | High-Impact UV-Resistant Acrylic (PMMA) |
| Mounting Mechanism | Spring Clip Mount (Recessed Hole Required) |
| Cutout / Recess Diameter | ∅ 76 mm (3.0 in) |
| Outer Rim Diameter | ∅ 95 mm (3.74 in) |
| Recessed Depth Clearance | 27.3 mm (1.07 in) |
| Pre-Wired Cable Assembly | 120 mm Marine Tinned Cable |
| Ingress Protection Rating | IP6K9K (Dust-tight & high-pressure steam clean proof) |
| Dimming Compatibility | PWM Dimmable (Both White & Blue Channels) |
| Compliance / Approvals | CE, RCM, UKCA, EN 60945 (EMC Safe) |
