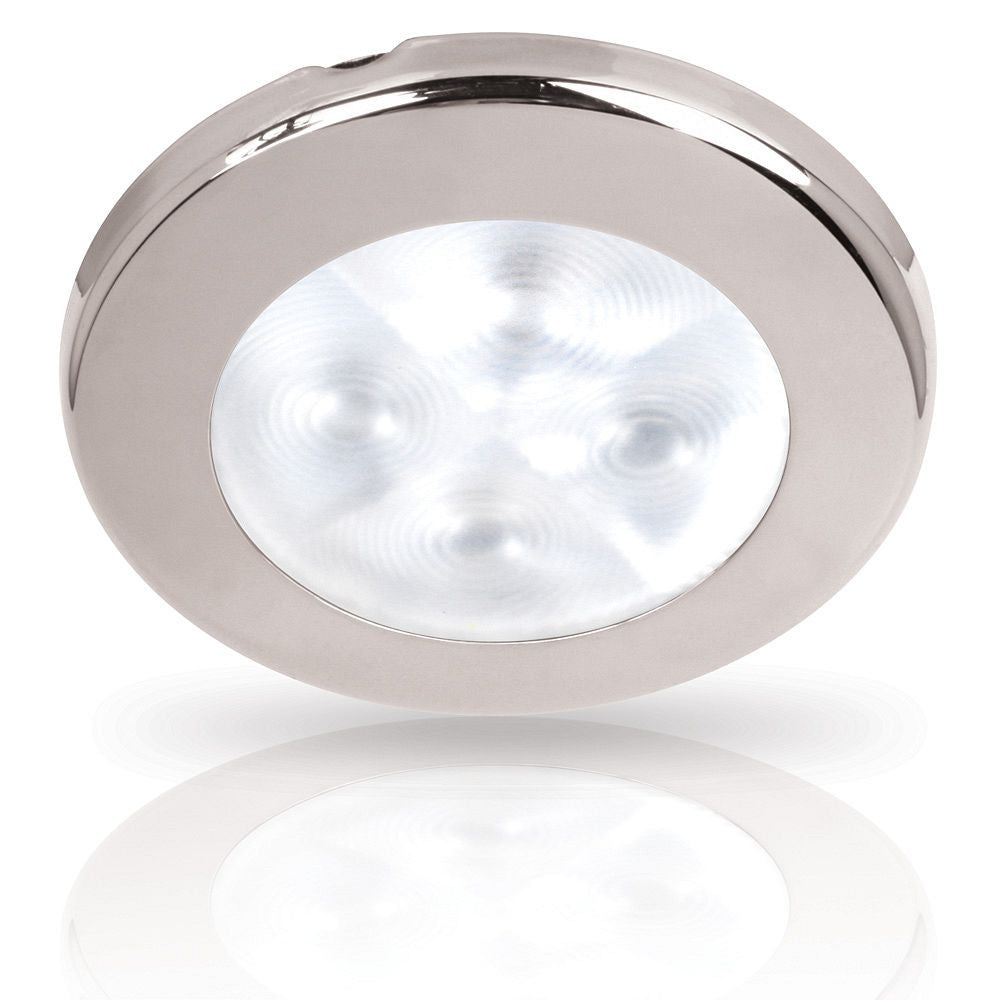

Hella Marine Rakino 24V White Spot LED Downlight – Polished 316 SS Rim (2JA 959 599-651)
The Hella Marine 2JA 959 599-651 is a compact, recess-mounted Rakino Series 24V DC White Spot LED Downlight designed for luxury yacht interiors, helm stations, hardtops, and covered companionways. Featuring a narrow, concentrated Spot Beam pattern, it provides focused light over chart tables, galleys, control consoles, and passage corridors.
Encased in a precision-machined polished 316 marine-grade stainless steel rim, the Rakino downlight blends high aesthetic appeal with long-term resistance to salt air tarnish and corrosion. Built with solid-state LED optics and an encapsulated interior module, it offers low heat emission, minimal power consumption, and long-term durability under vessel vibration and movement.
Key Features
-
Focused Spot Beam Optics: Projects a concentrated beam of white light, ideal for task lighting, passage illumination, and reading zones.
-
Polished 316 Stainless Steel Rim: High-luster marine-grade stainless rim provides high corrosion resistance and high-end aesthetic integration.
-
Low-Profile Flush Recessed Design: Mounts cleanly into overhead panels, hardtops, and cabinetry with minimal rear-depth clearance.
-
Efficient 24V DC Operation: Draws low current, reducing battery load and thermal output compared to traditional halogen downlights.
-
Solid-State LED Architecture: Vibration-proof assembly eliminates delicate filaments, providing extended operational life in rough seas.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Hella Marine |
| Part Code / Master SKU | 2JA 959 599-651 |
| Product Series | Rakino Series |
| Component Category | Marine Interior / Cabin Overhead Spot Downlights |
| Beam Optics | Spot Beam (Narrow Task Distribution) |
| Light Color | White |
| Operating Voltage | 24V DC |
| Power Consumption | < 3.0 W (< 0.125A @ 24V DC) |
| Rim Material / Finish | 316 Marine Grade Stainless Steel (Polished Mirror Finish) |
| Lens Material | Optical Grade UV-Stable Polycarbonate / Acrylic |
| Installation Style | Flush Recessed Mount |
| Dimming Capability | Dimmable via PWM (External Hella Marine Dimmer) |
| Overall Rim Diameter | ∼ 75 mm (∼ 2.95") |
| Cutout Hole Diameter | ∼ 50 - 55 mm (∼ 1.97" - 2.16") |
| Mounting Depth | ∼ 18 mm (∼ 0.71") |
| Unit Weight | ∼ 0.15 kg (∼ 0.33 lbs / 150 g) |
| Compliance & Approvals | CE, RoHS, ISO 8846 (Ignition Protected) |
