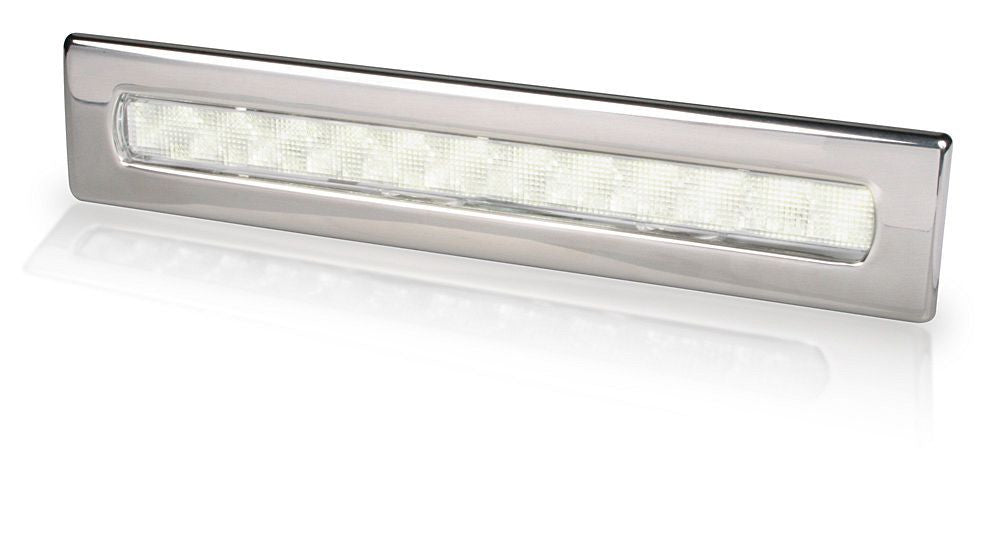

Hella Marine 2JA 980 681-501 Waiheke 24V LED Strip Lamp

Hella Marine Waiheke 24V White LED Strip Lamp

The Hella Marine 2JA 980 681-501 is an ultra-slim, linear 24V DC surface-mount LED strip lamp designed for lighting marine interiors, under-cabinet companionways, gunwales, chart tables, and exterior task spaces. Part of Hella’s Waiheke series, it combines powerful light output with an extremely compact vertical profile (11 mm height) to fit restricted overhead or vertical clearances.

Equipped with a precision-engineered frosted acrylic optic diffuser, the Waiheke casts a smooth, 120° wide floodlight pattern free of harsh LED hotspots or shadows. The unit is capped with polished marine-grade 316 stainless steel end bezels that conceal fasteners for a sleek aesthetic. Built on Hella's "Fit and Forget" sealed platform, the housing is completely hermetic to IP67 standards, providing total resistance to vibration, saltwater washdowns, and ambient humidity.

Key Features

• Ultra-Low Profile Footprint: 11 mm total thickness allows clean installation under cabinets, steps, and gunwales without intruding into headroom.

• Uniform Light Diffusion: Frosted acrylic lens eliminates harsh point-source LED glare and projects an even flood beam.

• 316 Marine Stainless Steel Trim: High-polish 316 stainless steel end caps shield the housing and cover mounting screw locations.

• Hermetic IP67 Construction: Completely sealed against high-pressure water jets, dust, and continuous ambient salt spray.

• Low Power Draw: Efficient design consumes under 3 W (0.12A @ 24V DC) while delivering long service life.
