Hella Marine 2JA 998 560-407 Warm White LED Step Lamp

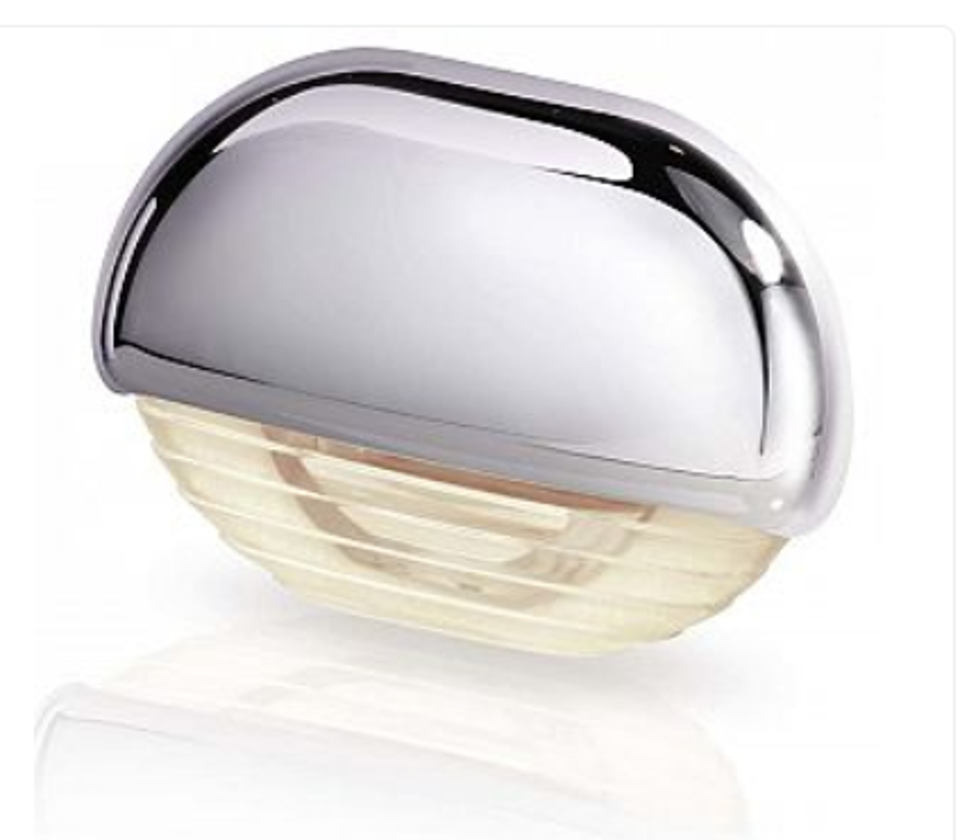

Hella Marine Easy Fit Warm White LED Step Lamp – Chrome Cap / Bulk Packaging (2JA 998 560-407)

The Hella Marine 2JA 998 560-407 is a compact, surface-mount Warm White LED Step Light engineered for interior and exterior marine courtesy illumination. Designed with a downward 30° light throw, it directs illumination straight down onto steps, companionways, walkways, and toe-kicks without causing harsh glare at eye level.

Equipped with Hella's advanced Multivolt 12/24V DC electronics, the unit consumes just 0.5 W of power while delivering stable light output across fluctuating battery voltages. Encapsulated in an IP67 waterproof and shockproof UV-stabilized acrylic housing topped with a decorative Chrome-Plated Cap, it offers long-term resistance to corrosion, continuous washdowns, and vibration.

Key Features

• Glare-Free Downward Optics: 30° downward light angle efficiently illuminates steps and passageways without blinding crew or passengers.

• Ultra-Low Energy Consumption: Draws only 0.5 W (< 0.04A at 12V / < 0.02A at 24V DC).

• Easy Surface Mounting: Fastens directly to flat surfaces using two mounting screws under the snap-on chrome cap.

• Hermetically Sealed IP67 Rating: Potted internal electronics resist complete water submersion, salt spray, and vibration.

• Multivolt 12/24V DC Compatibility: Maintains constant light output under battery discharge or charging spikes.

Specifications
