Ultra durable, power saving LED navigation lamps for enhanced safety. NaviLED® lamps are proven worldwide on commercial, military and recreational vessels.
Ultra low current draw NaviLED® lamps use less than 10% of the power required to run a bulb navigation lamp of the same visible distance. Port and Starboard lamps consume less than 2 watts combined !
No bulbs, No maintenance. Ultra long service life Hella marine LED technology has no filaments to break making NaviLED® lamps extremely shock and vibration proof for reliability and safety in demanding conditions.
MultivoltTM 8-28V DC Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.
Safe and highly visible Hella marine optics deliver 100% correct light output and enhanced visibility compared to bulb navigation lamps.
Fully sealed for life. IP 67 Certified Each NaviLED® lamp is a completely sealed unit. High impact housings ensure durability from waves and impact.

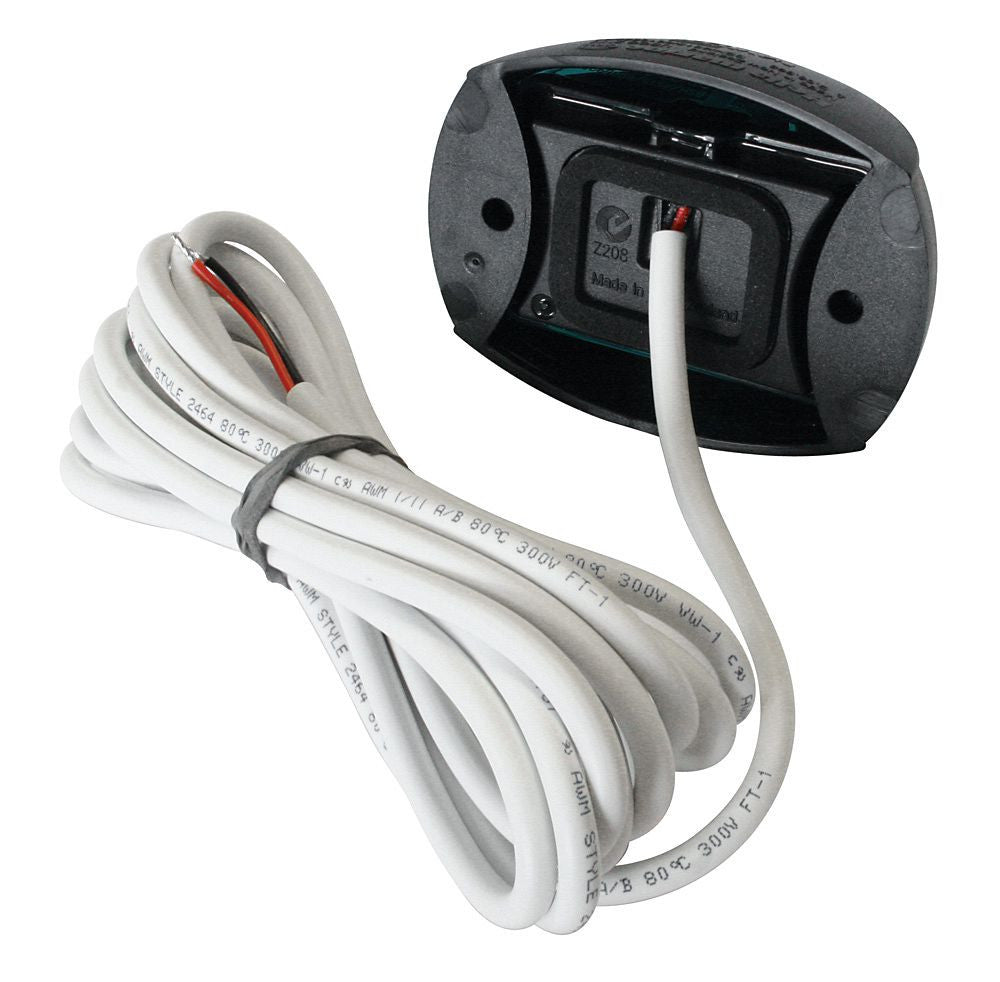

Pre-wired with marine cable Single core (120mm) or twin core (2.5m) sheathed marine cable assemblies available. Ensures time saving, completely sealed installations.
Material Description
UV resistant, enhanced impact resistant acrylic lens High impact shroud
Minimum Visible Distance
2 Nautical Miles (Yachts and Powerboats)
Cable
Pre-wired with marine cable
Operating Voltage
Multivolt 9-33V DC (earlier version 8-28V DC)
Voltage Protection
Spike protected to +500 volts. Reverse polarity protected to -700 volts
