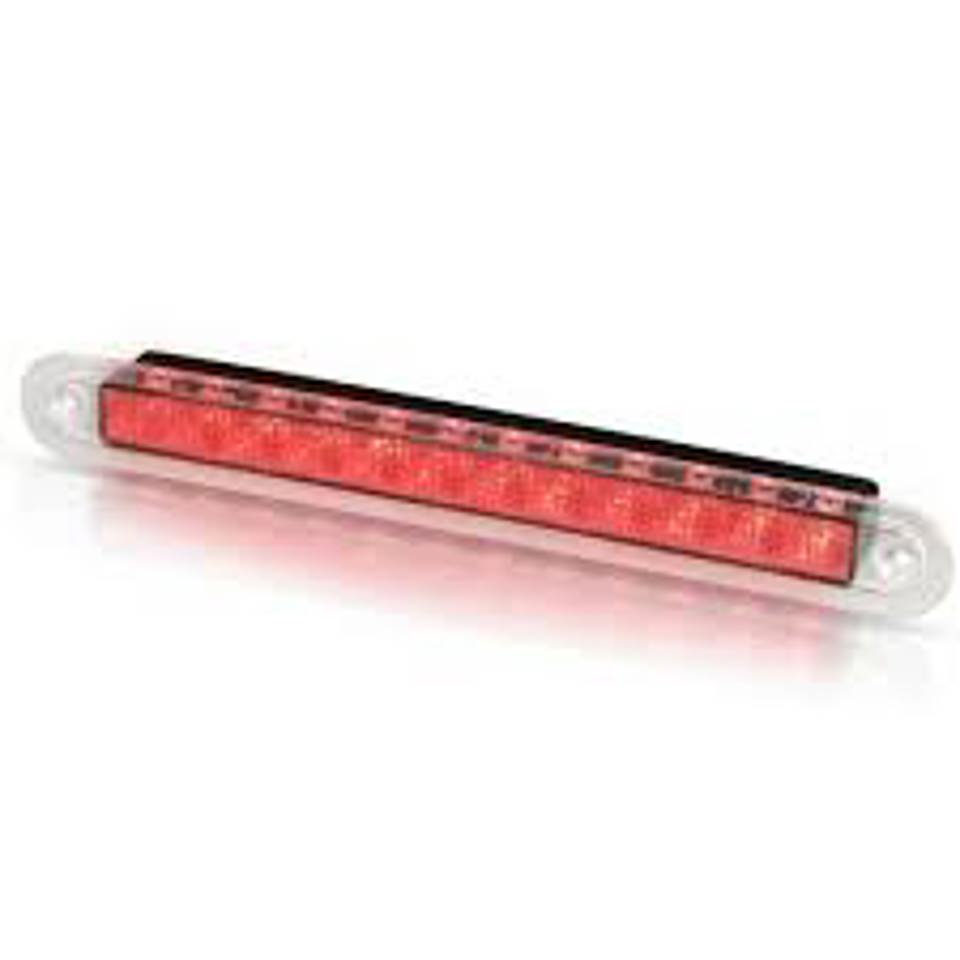

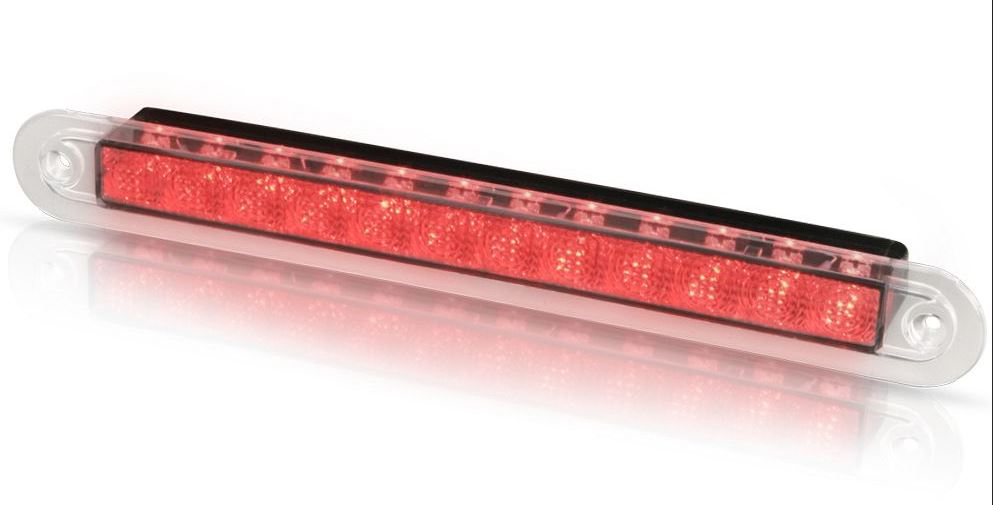

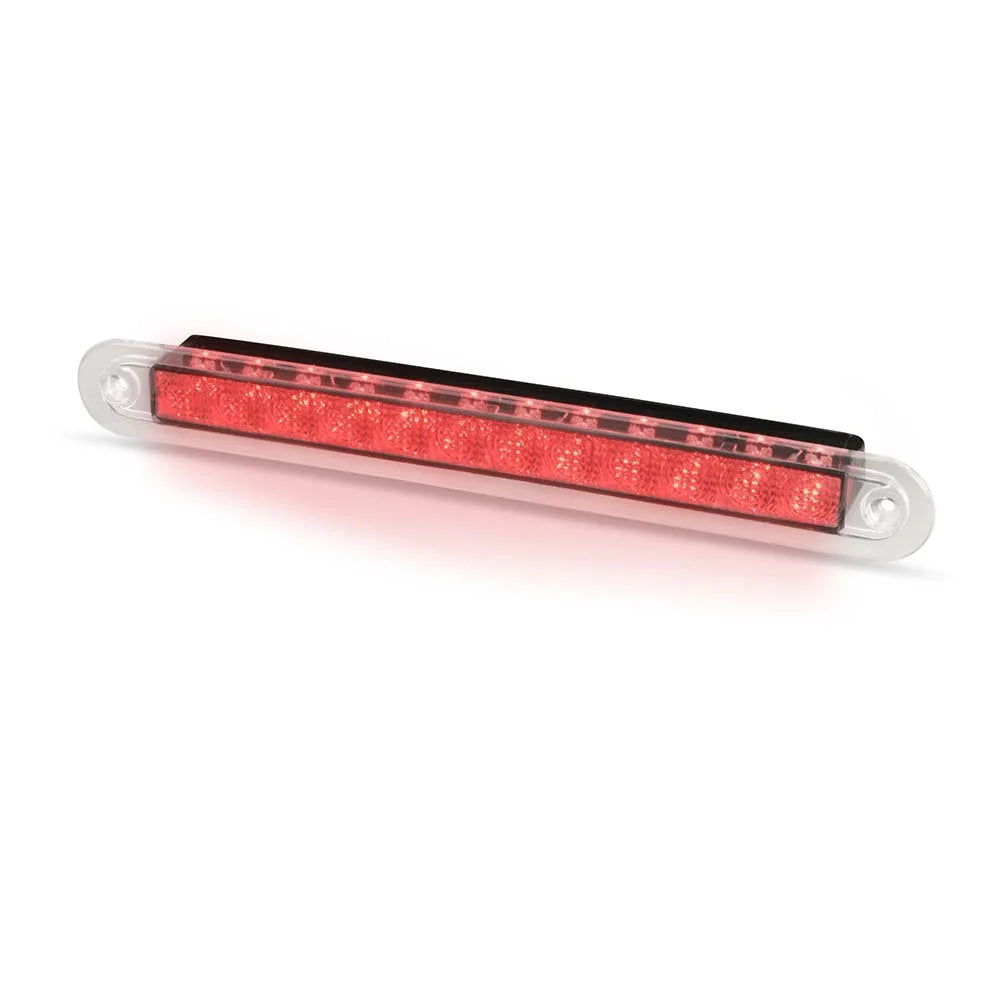

Hella Marine 2XD 959 073-751 Red 24V LED Recess Strip Lamp

Hella Marine 24V Red LED Recess Strip Lamp (Wide Rim)

The Hella Marine 2XD 959 073-751 is an elongated, low-profile recessed LED strip lamp engineered for ambient interior, companionway step, and exterior deck illumination on 24V DC marine power systems. Featuring a wide rim profile and a clear lens that reveals bright red illumination when powered, this lamp preserves night vision during night navigation.

Built with a UV- and chemical-resistant high-impact acrylic lens, the housing is completely hermetically sealed to IP67/IP69K standards for extreme moisture and dust resistance. It comes pre-wired with a 2.5m (∼ 8.2ft) marine-grade cable and features integrated reverse-polarity protection, ensuring reliable operation in harsh marine environments.

Key Features

• Night-Vision Red Illumination: Delivers clear, glare-free red lighting ideal for chart tables, companionways, and bridge areas.

• Flush Recessed Installation: Low-profile wide rim mounts neatly into cutouts, preventing snags on gear or clothing.

• Hermetically Sealed Protection: Rated to IP67 and IP69K for maximum defense against high-pressure washdowns and salt spray.

• Ultra-Low Energy Consumption: Draws under 2.0W (< 0.08A @ 24V DC) for minimal battery system load.

• Extended Cable Pre-Wiring: Includes a pre-sealed 2.5m twin-core marine lead for easy terminal box wiring.
