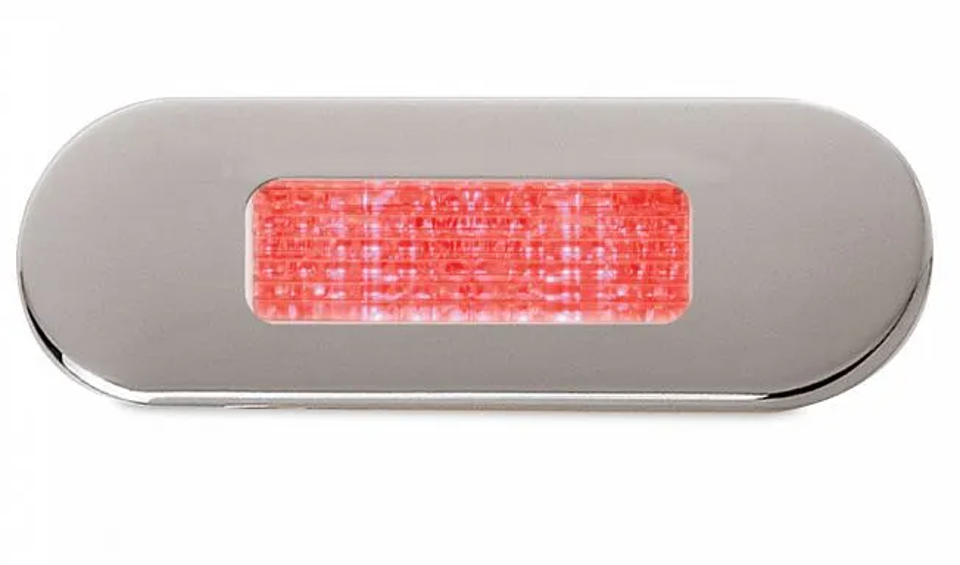

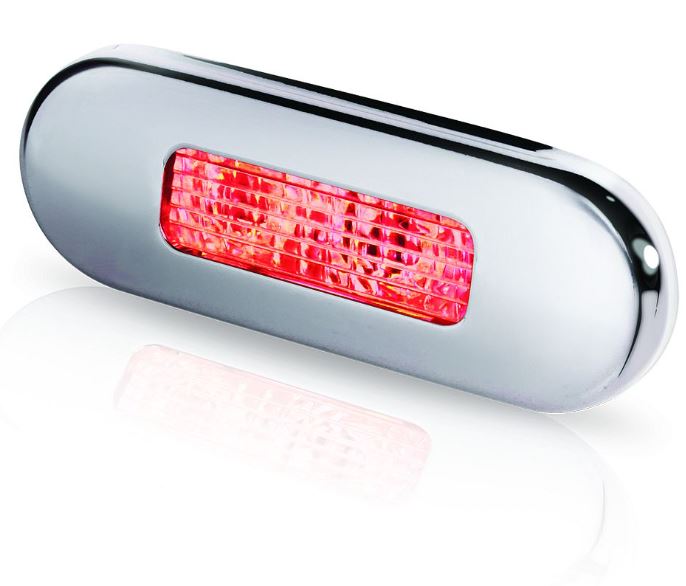

Hella Marine 2XT 959 680-717 Red LED Oblong Step Lamp

Hella Marine Wide Rim LED Oblong Courtesy / Step Light (Red LED)

The Hella Marine 2XT 959 680-717 is a compact, highly durable LED courtesy light engineered for interior and exterior step treads, stairwells, and companionways. Featuring a wide-rim polished 316 marine-grade stainless steel bezel, this model directs light downwards at a 30° angle to illuminate deck and step surfaces without causing direct glare into the eyes.

The lamp uses low-power red LED technology to preserve night vision during underway operations. Built with Multivolt™ electronics, it maintains consistent output across 10-33V DC systems while protecting against voltage spikes and reverse polarity. The optic housing is completely sealed to IP67 standards to withstand harsh saltwater and deck-washdown environments.

Key Features

• Downward 30° Light Pattern: Custom optics project light directly onto step treads to increase safety while preventing blinding night glare.

• 316 Marine-Grade Stainless Steel Rim: High-polish finish offers maximum corrosion protection against marine environments.

• IP67 Waterproof Housing: Hermetically sealed against moisture, dust, and direct water jets.

• Multivolt™ Circuitry: Maintains constant illumination and long LED life between 10-33V DC.

Specifications
