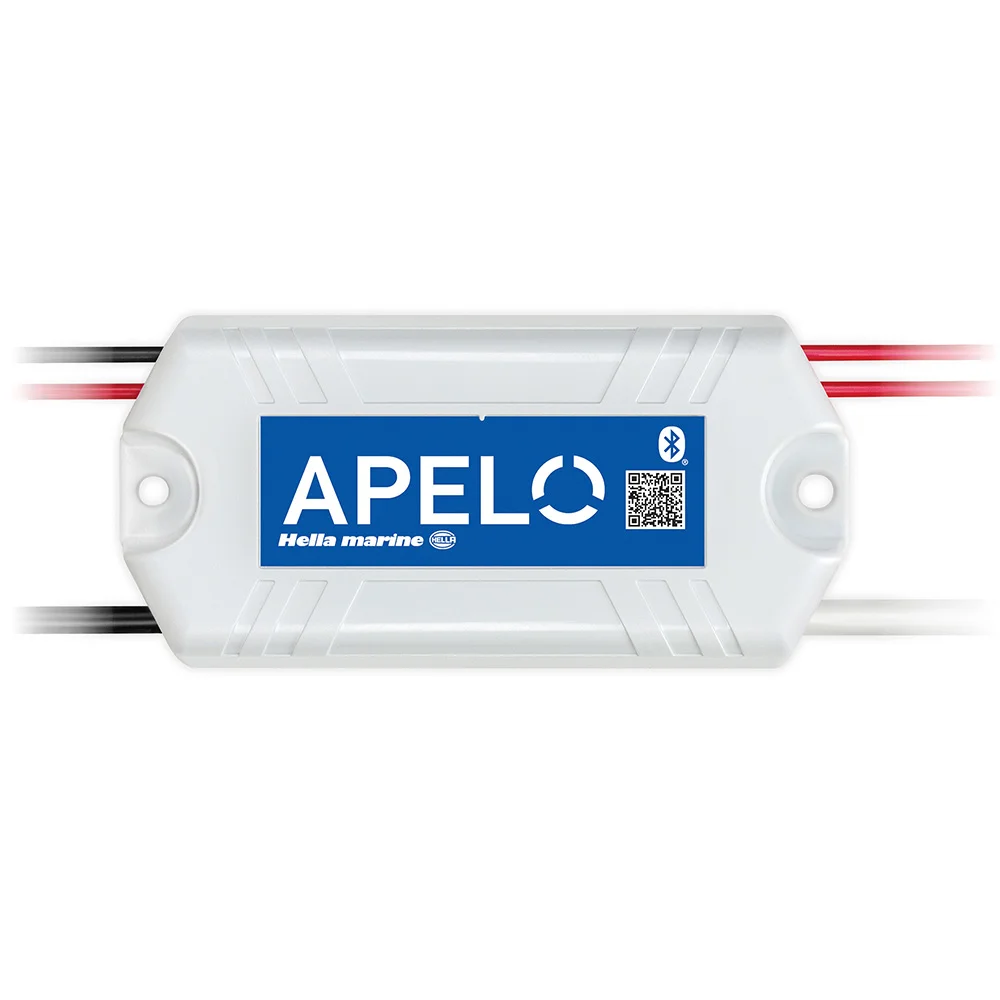

Hella Marine 5XA 285 814-001 Apelo Light Controller

Hella Marine Apelo Bluetooth Mesh Light Controller (12V/24V DC / 150W)

The Hella Marine 5XA 285 814-001 (Model: Apelo Light Controller) is a high-performance 12V/24V DC smart RGB/W lighting controller designed to command, synchronize, and dim marine LED lighting systems. Engineered to operate with Hella Marine's Apelo ecosystem—including Apelo underwater lights, EuroLED 75/95 downlights, and RGB step lamps—this controller also supports universal 3rd-party 4-wire RGB and 5-wire RGBW LED products.

Operating on Bluetooth Low Energy (BLE) Mesh technology, multiple controllers can communicate wirelessly across the vessel without requiring physical data interconnect cables. The unit allows full spectrum color customization, scene creation, and dynamic zone control via the companion Apelo Light Controller App (iOS and Android), as well as physical override control via standard momentary multi-pole switches. Housed in an IP67 completely sealed, V0-rated flame-retardant enclosure, it is purpose-built for harsh saltwater environments.

Key Features

• Bluetooth Low Energy (BLE) Mesh Networking: Connects multiple Apelo controllers wirelessly across the vessel, eliminating long data control wire runs.

• Apelo App & Physical Switch Dual Control: Seamlessly switch between the intuitive smartphone app and physical momentary helm switches to cycle modes, adjust colors, or dim.

• Multivolt 12V/24V Power Handling: Capable of driving up to 13A total continuous load (150W at 12V DC / 6.5A at 24V DC) with 3A per channel drive capacity.

• Broad Ecosystem & Universal Compatibility: Controls RGB, RGBW, single-color, dual-color, and dual-intensity LED marine fixtures.

• IP67 Sealed Housing: Fully potted, corrosion-proof enclosure built for high humidity and wet marine locker conditions.
