Hensel EnyStar FP 0101 Size 1 Enclosure Box

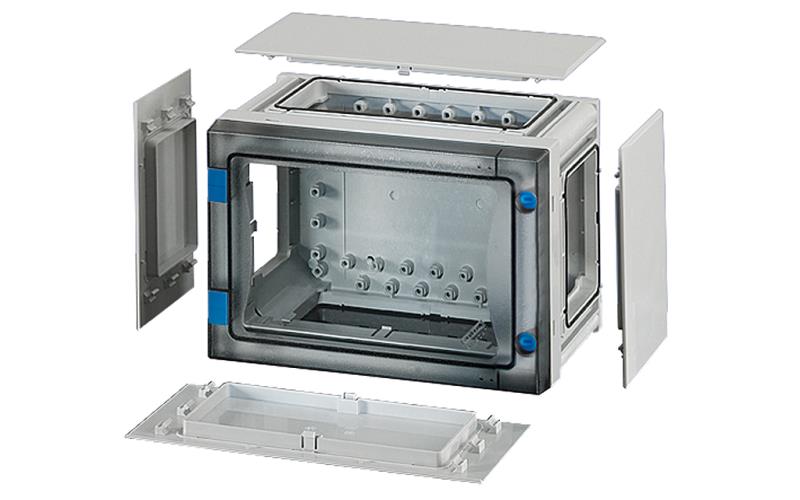

Hensel EnyStar FP 0101 Size 1 Enclosure Box with Transparent Door

The Hensel EnyStar FP 0101 is a high-grade, modular Size 1 distribution enclosure box designed for harsh industrial, outdoor, and marine-adjacent electrical installations. Part of the expandable EnyStar system, the FP 0101 features an impact-resistant transparent hinged door that provides clear visibility of internal breakers, relays, fuses, and digital metering displays without compromising the enclosure's environmental seal.

Constructed from heavy-duty, halogen-free, UV-stabilized polycarbonate, the enclosure offers IP65 dust and water ingress protection along with IK08 mechanical impact resistance. The modular design allows seamless connection to other EnyStar units via integrated knockouts and combination flanges, making it an ideal protective housing for marine distribution boards, solar array junction boxes, and industrial control interfaces.

Key Features

• Modular System Compatibility: Designed for easy side-by-side or vertical combination with other EnyStar boxes using integrated wall knockouts and snap-together connectors.

• Transparent Door Access: High-clarity polycarbonate door permits visual inspection of internal switches, trip status, or gauges without exposure to dust and moisture.

• IP65 & Weatherproof: Continuous polyurethane foam seal guards against water jets, salt-spray, and fine dust accumulation.

• Impact & Flame Resistant: Polycarbonate construction rated to IK08 impact resistance and self-extinguishing flame retardancy (960°C glow-wire test).

• UV & Chemical Resistance: Engineered to withstand prolonged outdoor solar exposure and chemical fumes in engine rooms or chemical plants.

Specifications
