Hensel EnyStar FP 0211 Size 2 Enclosure Box

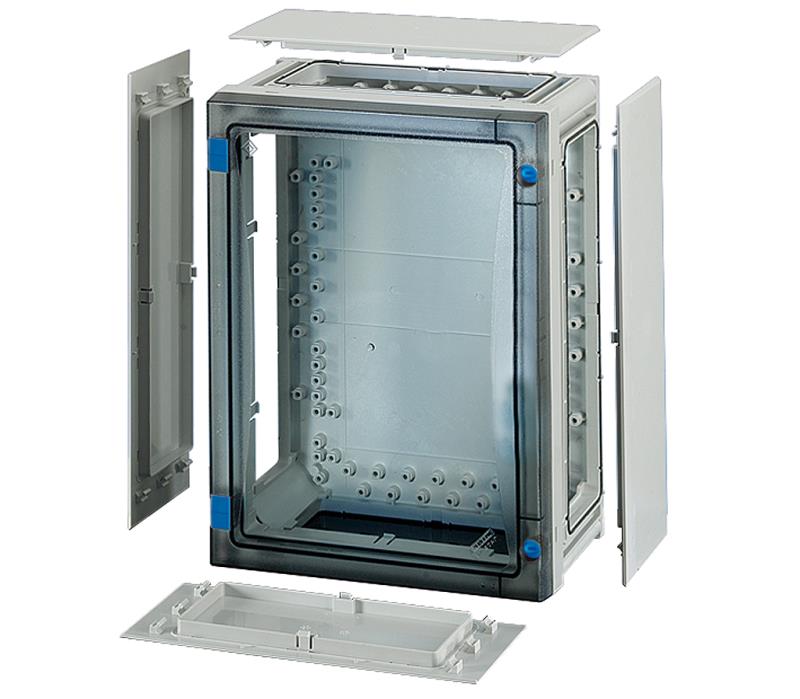

Hensel EnyStar FP 0211 Size 2 Enclosure Box with Transparent Door

The Hensel EnyStar FP 0211 is a high-grade, modular Size 2 distribution enclosure box engineered for demanding industrial, outdoor, and marine-adjacent power distribution applications. Offering double the footprint of Size 1 units, the FP 0211 features a high-impact transparent hinged door that allows full operational visibility of internal circuit breakers, DIN-rail devices, switches, and digital metering displays without exposing internal components to the environment.

Constructed from heavy-duty, halogen-free, UV-stabilized polycarbonate, the FP 0211 delivers IP65 dust and water ingress protection and IK08 mechanical impact resistance. As part of the flexible EnyStar modular system, it features integrated knockouts and combination flanges for rapid side-by-side or vertical expansion, making it a robust housing choice for vessel sub-distribution panels, shore power connections, and industrial control systems.

Key Features

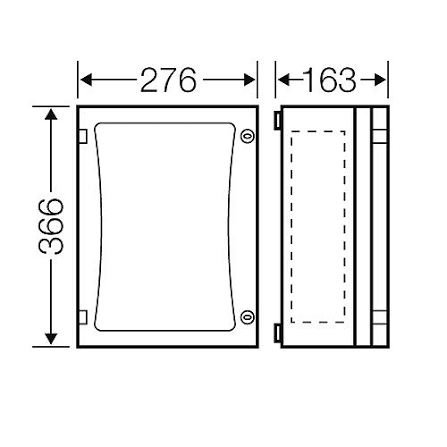

• Expanded Size 2 Footprint: Offers a spacious 276 mm * 366 mm base footprint to accommodate larger DIN-rail breaker assemblies, busbars, and control modules.

• Transparent Door Inspection: High-clarity polycarbonate door allows instant visual verification of switch positions and trip indicators while maintaining an environmental seal.

• IP65 & Weatherproof Protection: Continuous polyurethane foam seal guards against water jets, heavy rain, salt fog, and fine dust accumulation.

• Impact & Flame Resistant: High-impact polycarbonate construction rated to IK08 and self-extinguishing flame retardancy (960°C glow-wire test).

• Modular System Interconnection: Smooth combination flanges allow multi-box panel builds with easy cable pass-through between adjacent enclosures.

Specifications
