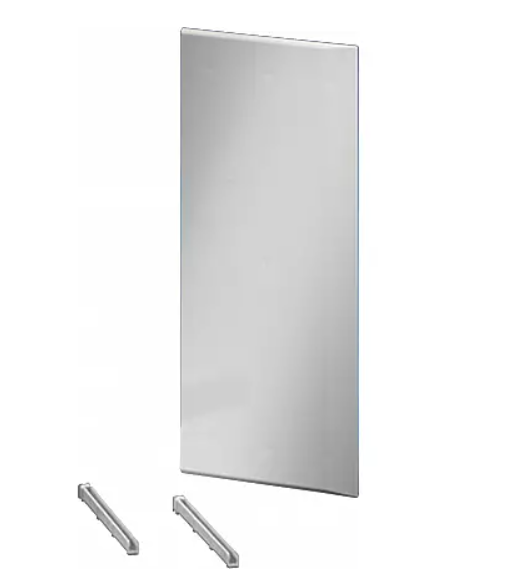

Hensel FP VP 27 Closing Plate 270mm

Hensel FP TS 54 DIN Rail 540mm

The Hensel FP TS 54 is a heavy-duty 540 mm standard 35 mm top-hat DIN rail designed specifically for mounting modular electrical components within the Hensel EnyStar enclosure system (such as Size 3 and Size 4 large distribution boxes). Manufactured to standard DIN EN 60715 (35 mm * 7.5 mm profile), it provides a rigid, corrosion-resistant mounting framework for DIN-rail miniature circuit breakers (MCBs), residual current devices (RCDs), terminal blocks, relays, and contactors.

Constructed from galvanized, passivated sheet steel, the FP TS 54 is engineered to withstand high vibration, mechanical shock, and humid marine or industrial atmospheres without oxidizing. Pre-punched mounting slots align perfectly with internal fixation points on EnyStar enclosure bases, allowing rapid tool-free height adjustment and solid mechanical anchoring.

Key Features

• Standard TS 35 Profile: Complies with DIN EN 60715 (35 mm width) for universal compatibility with standard modular electrical devices.

• Corrosion-Resistant Galvanized Steel: High-grade zinc-plated steel construction guards against corrosion in humid, marine, and industrial environments.

• Pre-Slotted Mounting Hole Pattern: Enables fast, alignment-free installation on internal EnyStar support posts and brackets.

• High Load Capacity: Rigid cross-section prevents flexing under heavy banks of large gauge terminal blocks, contactors, or power supplies.
