Lowrance 000-12570-001 HDI Skimmer 9-Pin Transducer

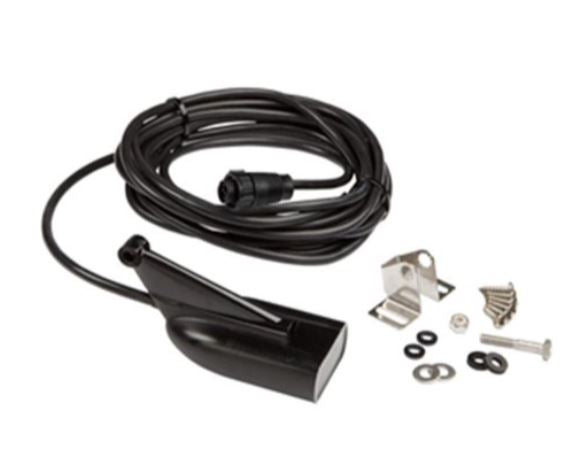

Lowrance HDI Skimmer M/H 455/800 xSonic 9-Pin Transducer (000-12570-001)

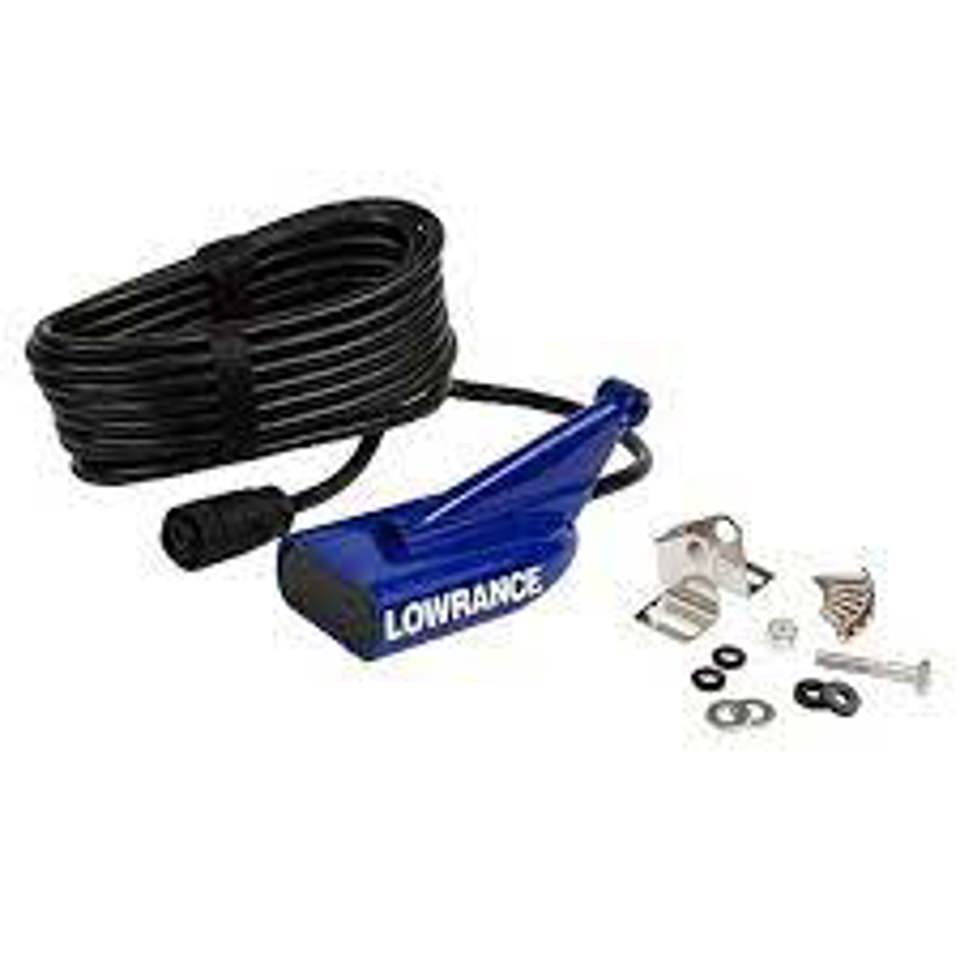

The Lowrance 000-12570-001 is an OEM HDI (Hybrid Dual Imaging) Skimmer Transom-Mount Transducer engineered to combine traditional 2D Broadband sonar with high-frequency DownScan Imaging™. Equipped with a black xSonic 9-pin connector featuring a blue locking collar keying mechanism, it plugs directly into modern Lowrance HDS LIVE, HDS Carbon, Elite FS, Elite Ti2, and Hook Reveal displays without requiring adapter cables.

By integrating Medium CHIRP (85-145 kHz) and High CHIRP (130-210 kHz) capabilities alongside 455/800 kHz DownScan Imaging, this transducer allows anglers to view crisp target separation of baitfish and game fish while simultaneously revealing photo-like structural details (submerged timber, drop-offs, and weed beds) directly beneath the vessel.

Key Features

• Hybrid Dual Imaging™ (HDI): Integrates 2D CHIRP sonar for fish tracking with DownScan Imaging™ for high-resolution seabed profiling.

• Medium & High CHIRP Frequencies: Offers versatility in both shallow coastal waters and deeper inland/offshore targets down to 1,000ft.

• 455/800 kHz DownScan Imaging™: Delivers photo-like detail of underwater structure at 455 kHz (deeper coverage) and 800 kHz (maximum clarity).

• xSonic 9-Pin Connector: High-density black 9-pin connector with blue locking ring connects natively to current Navico display ports.

• Built-in Temperature Sensor: In-transducer water temperature sensor provides real-time surface temperature readouts to the display.
