Lowrance 000-13613-001 GPS-500 Antenna

Lowrance GPS-500 External GPS Antenna (000-13613-001)

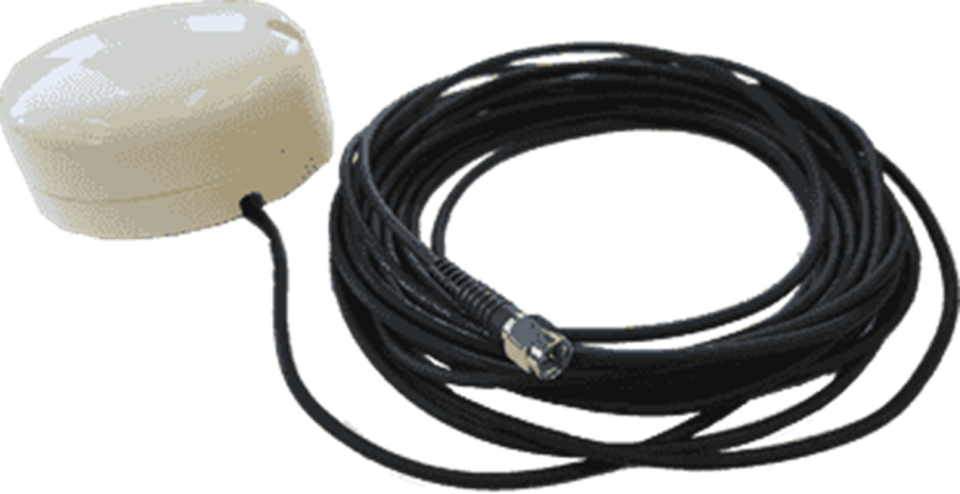

The Lowrance GPS-500 is a high-sensitivity, marine-grade External GPS Antenna specifically designed to provide high-precision satellite positioning data to the NAIS-500 Class B AIS Transceiver. Since Class B AIS transceivers require an independent GPS position source to broadcast accurate vessel coordinates to surrounding traffic, the GPS-500 ensures reliable, low-latency fix acquisition under all operating conditions.

Housed in a compact, IPX7 waterproof dome, the GPS-500 comes pre-fitted with a 10-m (33 ft) low-loss coaxial cable terminating in a male SMA connector. This allows flexible mounting high on a cabin roof, arch, or mast pole clear of local structural obstructions, delivering optimal sky-view exposure for high-accuracy positioning.

Key Features

• Dedicated NAIS-500 Compatibility: Engineered exclusively to meet Class B AIS transceiver timing and satellite position requirements.

• Integrated 10m Coaxial Cable: Factory-fitted 10 m (33 ft) cable provides ample reach for elevated deck, arch, or mast installations.

• Precision Male SMA Connector: Direct plug-and-play thread-on SMA connector attaches seamlessly to the dedicated GPS port on the NAIS-500.

• IPX7 Waterproof Enclosure: Fully sealed, UV-stabilized composite housing protects internal elements against heavy seas and sun exposure.

• Flexible Mounting Options: Supports standard pole mounting (1"- -14 TPI) or flush deck surface mounting configurations.

Specifications
