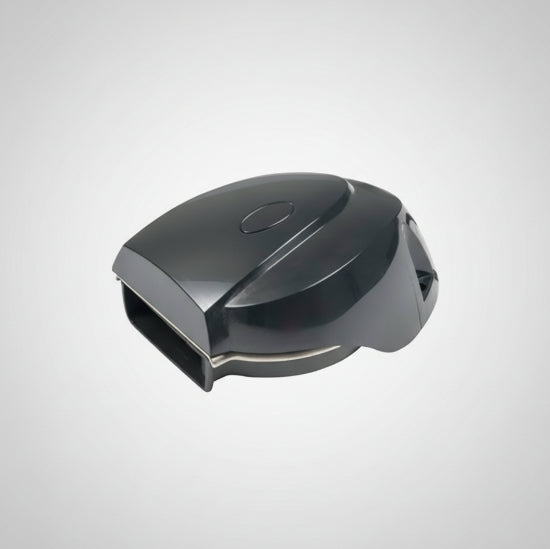

Marinco 11098 12V MiniBlast Compact Horn Black Cover
Marinco 11098 12V MiniBlast Compact Horn Black Cover
Low stock: 3 left
Couldn't load pickup availability
Marinco 12V MiniBlast Compact Single Horn with Black Cover
The Marinco 11098 is a space-saving, high-decibel 12V DC compact single electric marine horn designed for smaller powerboats, center consoles, skiffs, and inflatable craft (RIBs) up to 12 meters (39 feet) in length. Enclosed in a rugged, UV-stabilized impact-resistant black polymer cover, it provides maximum protection against salt spray, water ingress, and atmospheric corrosion in exposed helm or bow positions.
Delivering a sound output rating of 108 dB(A) at 1 meter, the MiniBlast produces a sharp, highly audible acoustic warning signal to meet ABYC and US Coast Guard navigation safety requirements for small craft. Its drop-in low-profile footprint allows installation in tight exterior spaces, while the sealed diaphragm housing ensures long-term reliability in damp marine conditions.
Key Features
-
108 dB(A) Acoustic Power: High-output single-tone diaphragm delivers reliable signaling for small powercraft navigational safety.
-
Compact Low-Profile Design: Engineered for tight mounting spaces on consoles, arches, deck steps, or bow surfaces.
-
UV-Resistant Black Cover: Tough thermoplastic enclosure guards internal acoustic components from direct sunlight, salt spray, and physical impacts.
-
Corrosion-Resistant Internals: Features a sealed diaphragm and coated steel mounting bracket to resist marine environment breakdown.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Marinco (Advanced Systems Group / Navico Group) |
| Part Code / SKU | 11098 |
| Component Type | Compact Electric Single Marine Horn |
| Operating Voltage | 12 V DC Nominal |
| Max Current Draw | Approx. 3.5 A @ 12 V DC |
| Sound Output Level | 108 dB(A) at 1 Meter (3.3 Feet) |
| Fundamental Frequency | Approx. 440 Hz ± 20 Hz (High Pitch) |
| Vessel Length Suitability | Powerboats and RIBs under 12 Meters (39 Feet) |
| Housing / Cover Material | UV-Stabilized High-Impact ABS / Polycarbonate Polymer |
| Cover Color / Finish | Black (Matte) |
| Dimensions (L * W * H) | 80 mm * 84 mm * 51 mm (3.15 in * 3.30 in * 2.00 in) |
| Mounting Hardware / Bracket | Includes Integrated Stainless Steel / Coated Mounting Bracket |
| Electrical Termination | Dual 1/4'' (6.3 mm) Male Spade Terminals |
| Compliance / Approvals | USCG, ABYC A-23, CE Approved |
