Marinco 199114 16A 230V Shore Power Connector Kit

Marinco 16A 230V Shore Power Connector Kit (199114)

The Marinco 199114 is a marine-grade 16A 230V Female Shore Power Connector Kit designed for wiring boat-side shore power cables and replacement extension cords. Engineeered for 50 Hz European and global 230 V AC electrical marine systems, it provides a safe, low-resistance connection to compatibility-matched stainless steel or non-metallic 16-amp power inlets.

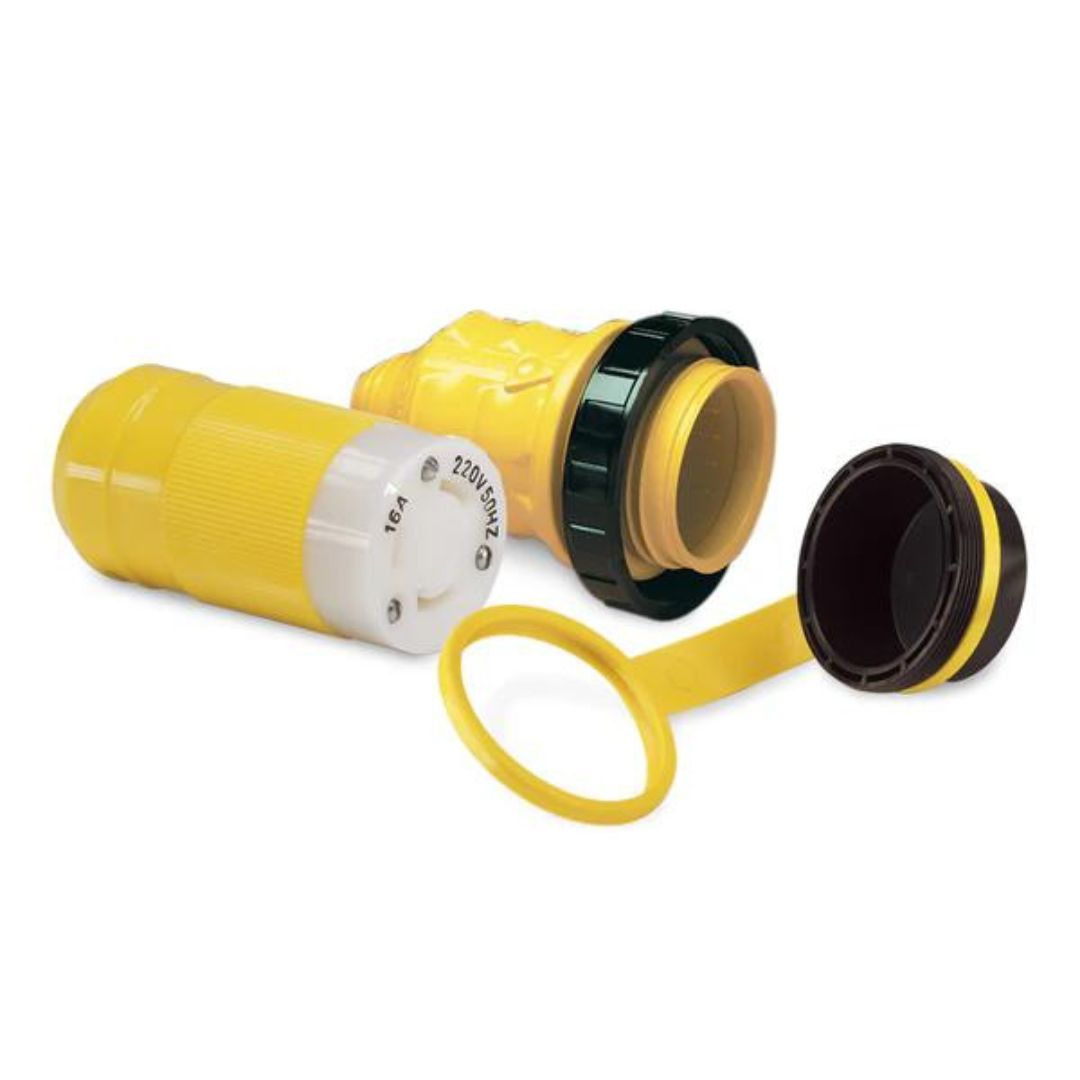

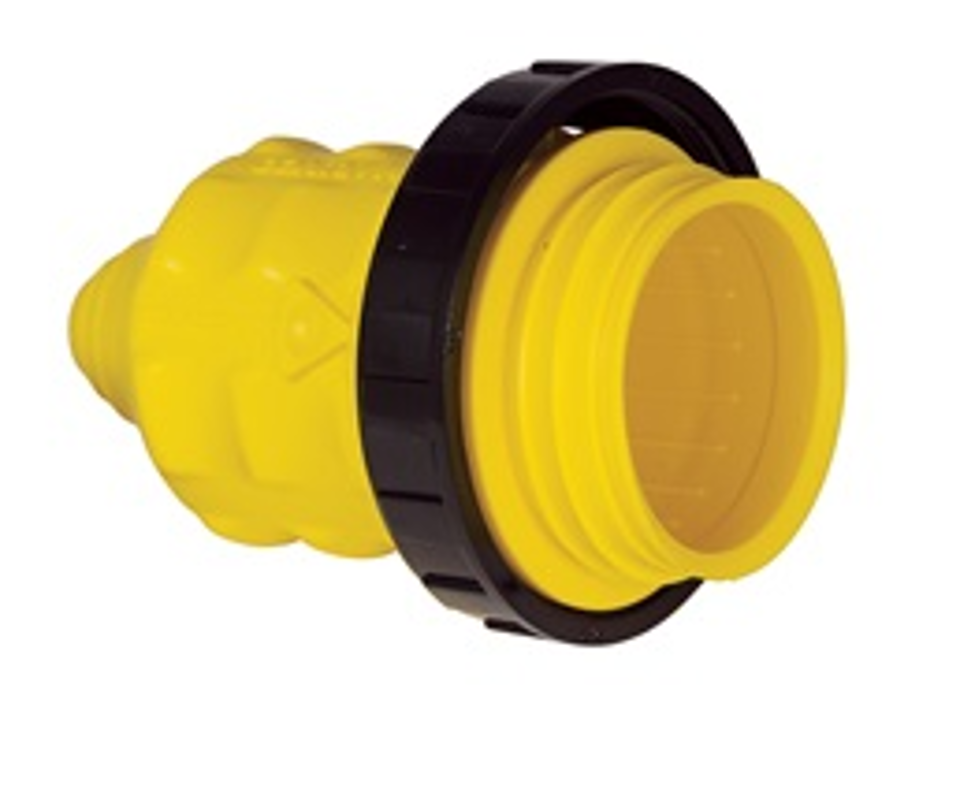

The kit features corrosion-resistant, nickel-plated brass contacts housed in a high-impact, UV-stabilized composite shell. It includes a contoured weatherproof cover with an integrated threaded sealing ring to establish an IP56-rated watertight seal when mated with a shore power inlet, as well as a protective end cap to guard terminal pins from moisture and corrosion when disconnected.

Key Features

• Complete Field Assembly Kit: Includes the 16A female connector core, weatherproof cover with threaded locking ring, and protective end cap.

• IP56 Weatherproof Rating: Provides watertight sealing against heavy sea spray and rain when securely threaded to the vessel inlet.

• Corrosion-Proof Terminals: Solid nickel-plated brass contacts resist oxidation, pitting, and voltage drop in saltwater environments.

• Cable Range Compatibility: Designed to accept flexible 3-conductor marine power cables up to 16 mm outer diameter.

• Integrated Protective Cap: Seals the female connector face from salt crust and debris when the shore power cable is disconnected.
