Mastervolt - 35513000 - CombiMaster Inverter/Charger 12/3000-160 (120V)
Mastervolt - 35513000 - CombiMaster Inverter/Charger 12/3000-160 (120V)
Low stock: 2 left
Couldn't load pickup availability

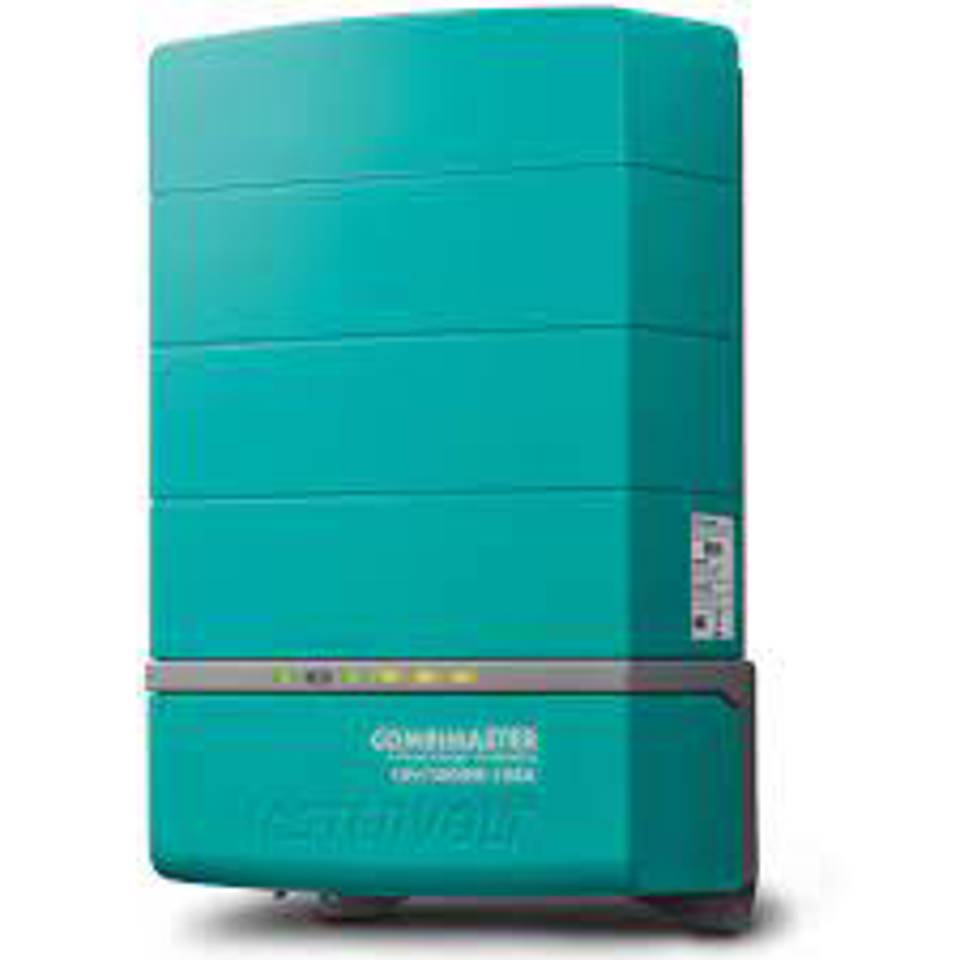

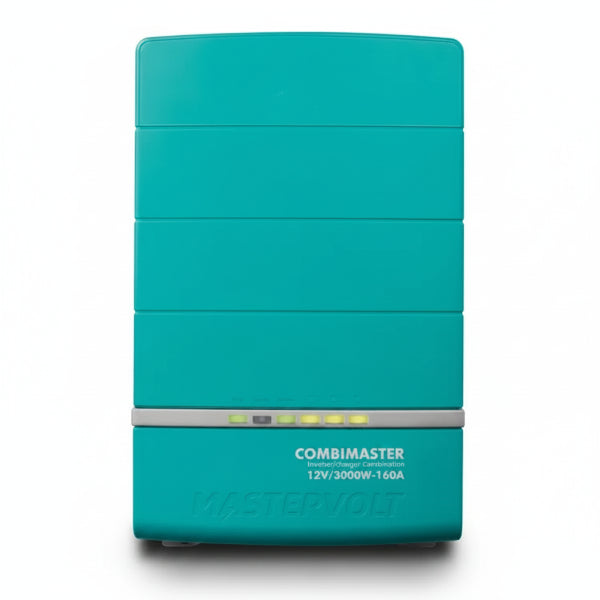

Mastervolt CombiMaster 12/3000-160 (120V) Inverter / Battery Charger
The Mastervolt 35513000 (Model: CombiMaster 12/3000-160) is a premium, high-output 12V sine wave inverter and automatic multi-stage battery charger engineered for North American and 120V / 60Hz marine, RV, and mobile power architectures. Delivering 3000 VA (2600 W continuous at 40°C) pure sine wave AC power alongside a powerful 160 A 3-stage+ battery charger, it effortlessly powers heavy AC loads—such as air conditioners, microwaves, and power tools—directly from a 12 V battery bank.
Featuring an ultra-fast 50 A automatic transfer switch, the unit transitions instantaneously between shore power/generator and battery inverter output with zero drop-out time for onboard electronics. Equipped with integrated Power Assist technology, it prevents shore power circuit breakers from tripping by supplementing weak grid inputs with battery power. Native MasterBus, CZone, and NMEA 2000 communication interfaces allow seamless integration into modern digital control and monitoring networks.
Key Features
-
High Continuous Output (2600W / 3000VA): Delivers clean pure sine wave power capable of starting high-surge inductive loads like air conditioners and refrigeration compressors.
-
160A Ultra-Fast Battery Charger: 3-Stage+ charging algorithm rapidly replenishes large AGM, Gel, Flooded, and Lithium-Ion (LiFePO4) battery banks.
-
Power Assist & Power Sharing: Auto-supplements limited shore power or generator capacity with inverter power to eliminate tripped breakers.
-
Integrated 50A Transfer Switch: Ultra-fast automatic relay transfer ensures uninterrupted power to sensitive AC equipment.
-
Network Compatible (MasterBus / CZone / N2K): Full plug-and-play communication for digital switching networks, MFDs, and remote touchscreens.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Mastervolt |
| Part Code / SKU | 35513000 |
| Series | CombiMaster (120V Series) |
| Nominal DC Voltage | 12 V DC (9.5-16V DC Operating Range) |
| Continuous Power Rating (40°C) | 2600 W (3000 VA) |
| Peak / Surge Rating | 4500 W (1.5 seconds) |
| AC Output Voltage / Frequency | 120 V AC (± 2%) / 60 Hz (± 0.1%) |
| Output Waveform | Pure Sine Wave (THD < 3%) |
| Maximum Battery Charger Output | 160 A DC at 14.25 V |
| Charge Algorithm | 3-Stage+ (Bulk, Absorption, Float) + Custom Li-Ion Profile |
| AC Input Voltage Range | 90-140 V AC (60 Hz) |
| Integrated Transfer Switch | 50 A (Fast automatic transfer relay) |
| Power Assist Function | Yes (Supplements AC input with inverter power) |
| Efficiency (Inverter Max) | ≥93% |
| No-Load / Standby Consumption | < 30 W (Normal) / < 2 W (Energy Save Mode) |
| Communication Interfaces | MasterBus, CZone, NMEA 2000 (via adapter) |
| Cooling Method | Variable Speed Temperature-Controlled Fan |
| Operating Temperature Range | -25°C to +60°C(Derating above 40°C) |
| Dimensions (H * W * D) | 448 mm * 284 mm * 155 mm (17.6'' * 11.2'' * 6.1'') |
| Weight | 9.3 kg (20.5 lbs) |
| Ingress Protection Rating | IP23 (Vertical Mount) |
| Compliance / Approvals | UL 458, UL 1741, CSA C22.2 No. 107.1, ABYC A-31, FCC Class B |
