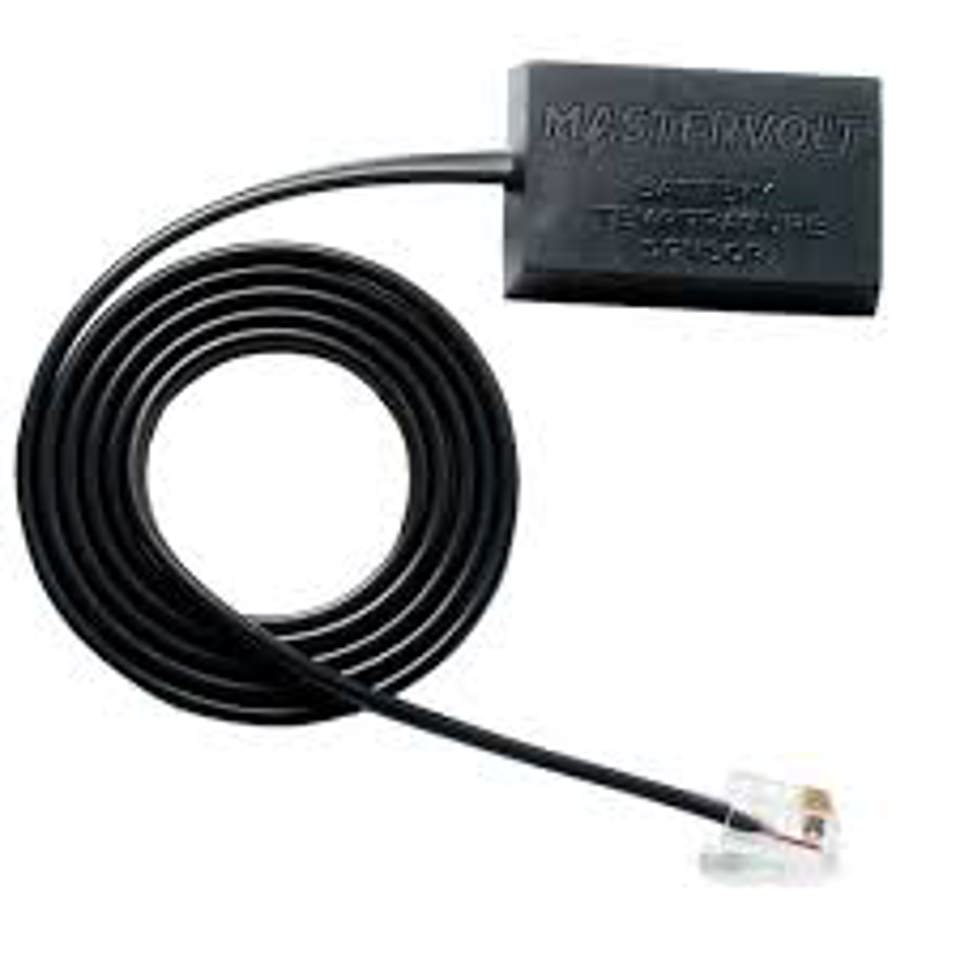

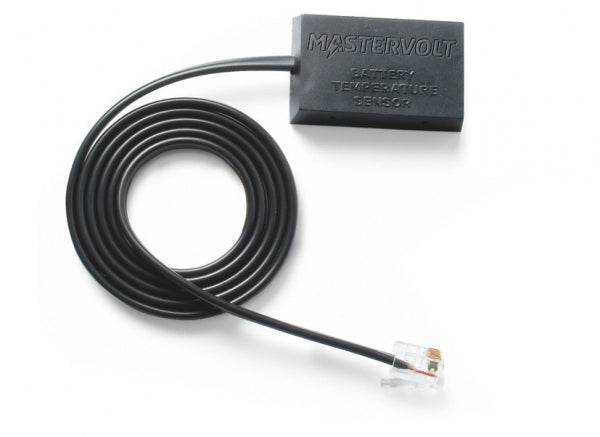

Mastervolt 41500500 Battery Temperature Sensor 6m

Mastervolt Battery Temperature Sensor (6m Cable)

The Mastervolt 41500500 is a 6-meter battery temperature sensor designed to enable dynamic temperature-compensated battery charging. By continuously monitoring the surface temperature of the battery bank, it allows compatible Mastervolt chargers, combi inverters, and DC-DC converters to automatically adjust output charging voltages (typically -30mV°C for 12V systems / -60mV°C for 24V systems). This prevents dangerous thermal runaway in high-ambient engine rooms and eliminates undercharging in cold climates.

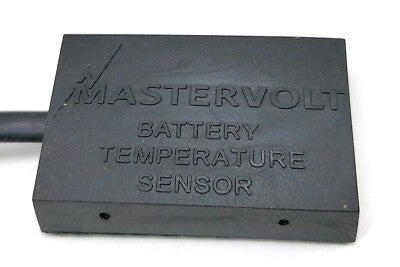

The sensor probe features a ring terminal lug format intended for direct mounting onto the negative battery terminal post, ensuring maximum thermal transfer. Pre-terminated with a 6-m (19.7 ft) flexible cable and standard 6P6C (RJ11) modular plug, it provides plug-and-play integration across the entire Mastervolt marine power ecosystem.

Key Features

• Automatic Temperature Compensation: Adjusts absorption and float charge voltages based on real-time battery thermal readings, extending battery service life.

• Ring Terminal Probe: Heavy-duty sensor lug mounts directly onto battery terminal studs for fast and accurate thermal responsiveness.

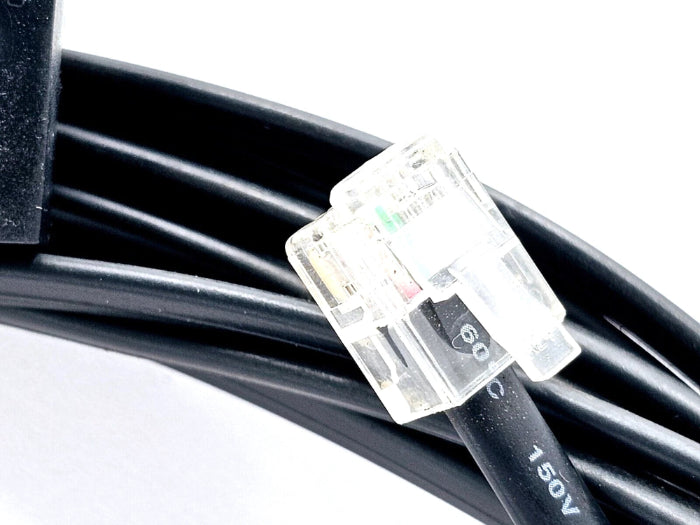

• Plug-and-Play RJ11 Connector: Pre-terminated with a 6P6C modular connector for quick insertion into dedicated sensor ports on Mastervolt chargers.

• Broad System Compatibility: Standard accessory for ChargeMaster, ChargeMaster Plus, Mass Charger, CombiMaster, and Mass Combi units.

• Engine Room Durability: Oil-resistant cable jacket and sealed probe body designed to withstand harsh marine bilge and battery locker environments.

Specifications
