Mastervolt

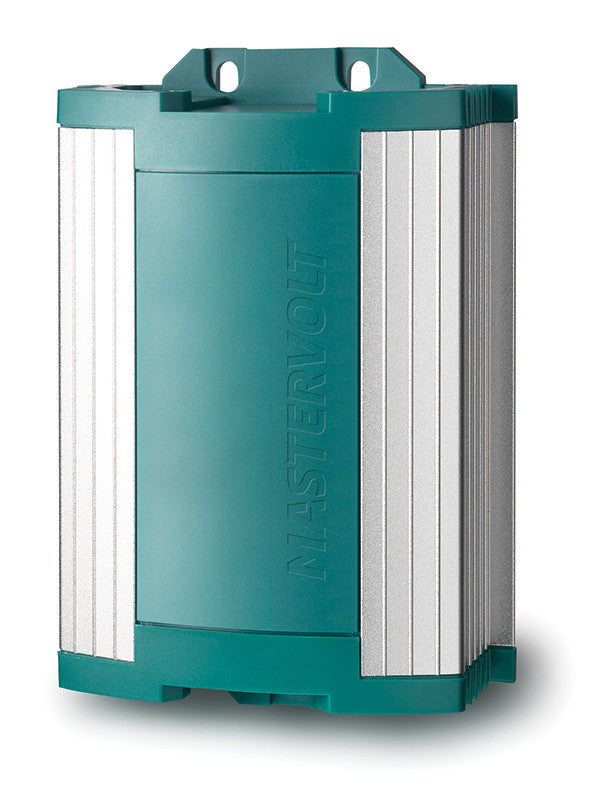

Mastervolt - 43020600 - ChargeMaster 24/6, sealed (IP65)

Mastervolt - 43020600 - ChargeMaster 24/6, sealed (IP65)

Pre order

Regular price $ 253.63 USD
Regular price Sale price $ 253.63 USD
Sale Pre Order
Shipping calculated at checkout.

ChargeMaster 24/6



Power you can rely on

  • 3-Step+ charging technology for fast and complete charging.
  • Safe and complete charging due to standard safety features.
  • Memory function prevents overcharging in case of an unstable power supply.
  • Clear control panel.
  • Easy to install.
  • Built-in system functionality (MasterBus) in combination with other Mastervolt products.

Always on course with Mastervolt…

Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent.

ChargeMaster battery chargers

Make the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. The ChargeMaster can charge multiple battery banks simultaneously thanks to its combined functionality. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection. You also have the option of central, local or remote monitoring, configuration and control of your system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.





Charging your batteries with every voltage

The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.

Sturdy connections

Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.

Charging multiple battery banks

The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.

General specifications
Nominal output voltage 24 V
Total charge current 6 A
Number of battery outlets 1
Battery capacity range 25-70 Ah
Nominal input voltage 230 V (180-265 V), 50/60 Hz
AC connection socket
Supplies your system without battery no
Display/read-out 1 LED
Dimensions, hxwxd 180 x 121 x 50 mm
7.1 x 4.8 x 2.0 inch
Weight 1 kg
2.2 lb
Fastening 4x screw
Approvals CE, ABYC A-31

Technical specifications
Charge characteristic IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion
Charge voltage Bulk 28.5 V
Charge voltage Absorption 28.5 V
Absorption time 6 hours
Charge voltage Float (wet batteries) 26.5 V
Charge voltage Float (gel/AGM batteries) 27.6 V
Temperature compensation no
Voltage compensation automatic
Power consumption (DC side) < 1 mA
Full load consumption (230 V AC) 210 W
Current Control function no
Power factor control > 0.95
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C
-13 to 140 °F
Sound level < 30 dBA at 1 mtr
Protection degree IP65
CSI/DC alarm yes, open collector output
Protections over temperature, over load, short circuit, high/low battery voltage
Cooling natural cooling
MasterBus compatible no
