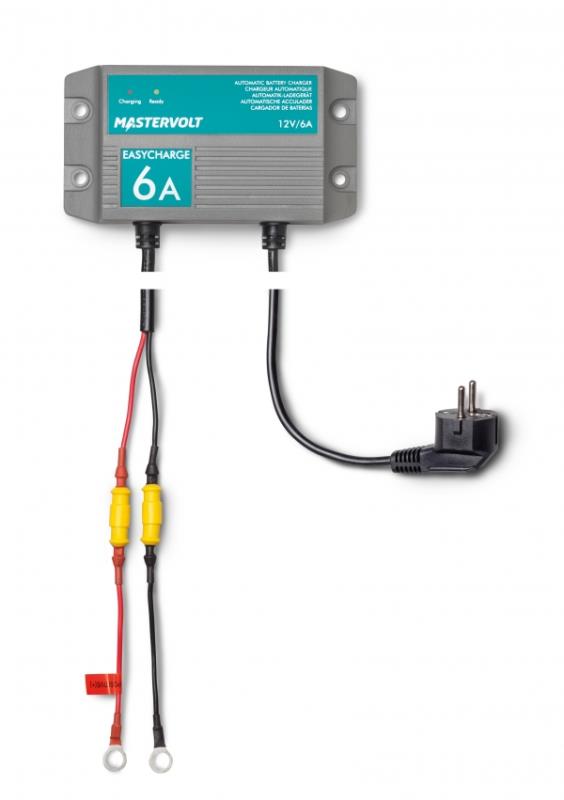

Mastervolt EasyCharge 6A-1 Waterproof Fixed-Mount Battery Charger (EU Plug)
IP68 Waterproof 12V Single-Bank Marine & Mobile Battery Charger
Engineered for permanent installation in demanding marine and mobile environments, the Mastervolt EasyCharge 6A-1 (Part No. 43310600) is a rugged, single-bank waterproof battery charger fitted with a European plug. Fully sealed inside an epoxy-filled, non-corrosive enclosure and built to strict IP68 waterproofing standards, it easily meets international regulations including CE, CSA, CEC, and ABYC.
Its completely isolated output can be wired in series or parallel for higher voltage or current configurations when paired with compatible units. Highly efficient and straightforward to use, the EasyCharge 6A-1 is thoroughly salt, shock, and vibration tested for offshore vessels, commercial vehicles, and recreational craft. It safely charges and maintains 12 V wet, AGM, and gel lead-acid batteries using Mastervolt’s automatic 3-step+ IUoUo charging curve, while a wide universal AC input (90–265 V, 50/60 Hz) ensures dependable operation worldwide.
- Spark-free operation with integrated reverse polarity, over-voltage, and short-circuit protection
- IP68 waterproof, epoxy-filled non-corrosive housing built for harsh marine conditions
- Charges and maintains 12 V wet, AGM, and gel lead-acid batteries up to 120 Ah
- Automatic 3-step+ IUoUo charge characteristic maximizes performance and extends battery life
- Wide universal input voltage range (90–265 V AC, 50/60 Hz) with pre-wired 1.2 m Euro plug cable
| General Specifications | |
| Part Number / SKU | 43310600 |
| Total Charge Current | 6 A at 12 V (1 output) |
| Recommended Battery Capacity (Charge) | Up to 120 Ah (based on 50% discharged battery) |
| Nominal Input Voltage | 120/230 V (90–265 V), 50/60 Hz |
| AC Connection | 1.2 m (4 ft) cable with Euro plug |
| DC Connection | Ring terminals |
| Dimensions (H × W × D) | 76 × 152 × 51 mm (3.0 × 6.0 × 2.0 in) |
| Weight | 1.8 kg (4.0 lb) |
| Approvals | CE, ABYC |
| Technical Specifications | |
| Charge Characteristic | IUoUo, automatic 3-step+ for gel / AGM / wet |
| Ambient Temperature Range | -20 °C to 50 °C (-4 °F to 122 °F) |
| Protection Degree | IP68 |
| Protections | Spark free, short circuit, reverse polarity, over voltage, current limited, over temperature |
