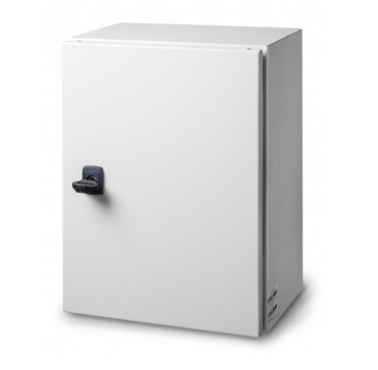

Mastervolt Mass GI 6 Isolation Transformer (55010600)

Name: Mastervolt Mass GI 6 Isolation Transformer (55010600)
Brand: Mastervolt
SKU: 55010600
Price: 1703.02 USD
Availability: InStock

$ 1,703.02 USD

Sale Pre Order

Shipping calculated at checkout.

Product variants

Quantity

Mastervolt Mass GI 6 Isolation Transformer - 6 kW 120/230 V (55010600)

The Mastervolt Mass GI 6 (Part Number: 55010600) is a high-performance, compact $6.0\text{ kW}$ High-Frequency Isolation Transformer designed to safely isolate a vessel's AC electrical system from shore power supplies operating at either $120\text{ V}$ or $230\text{ V AC}$ ( $50/60\text{ Hz}$ ). Shore power connections present significant galvanic corrosion risks to underwater metal fittings (propellers, shafts, thru-hulls, and sterndrives) due to stray DC earth currents flowing between the shore ground and the vessel's hull.

By employing advanced high-frequency switch-mode technology rather than traditional heavy copper/iron low-frequency core designs, the Mass GI 6 delivers maximum power density in an ultra-lightweight ( $10\text{ kg}$ ) package—saving up to $80\%$ of the weight compared to standard toroidal transformers. It ensures complete electrical safety aboard, prevents dangerous shore-to-boat ground loops, and includes built-in soft-start control to eliminate AC shore breaker tripping caused by high startup inrush currents.

Key Features

Galvanic Corrosion Protection: Safely isolates onboard ground from shore ground, preventing stray current electrolysis from destroying underwater hull metals.
Ultra-Lightweight & Compact: High-frequency technology reduces weight to just $10.0\text{ kg}$ ( $22\text{ lbs}$ ), making it ideal for performance yachts and weight-sensitive hulls.
Auto-Ranging Multi-Voltage Compatibility: Supports $120\text{ V}$ and $230\text{ V}$ shore power grid inputs ( $50\text{ Hz}$ or $60\text{ Hz}$ ) for global cruising capability.
Integrated Soft-Start Control: Inhibits high current spikes on initial connection to prevent tripping dockside AC shore circuit breakers.
Seamless Parallel Operation: Two or more Mass GI 6 units can be connected in parallel to expand total onboard AC power capacity up to $12\text{ kW}$ or higher.

Specifications

Feature	Specification
Brand / Part SKU	Mastervolt / 55010600
Product Series	Mass GI Series (Galvanic Isolation)
Technology Type	High-Frequency Switch-Mode Transformer
Continuous Power Rating	$6,000\text{ Watts}$ ( $6.0\text{ kW}$ )
Peak Power Rating (10 sec)	$12,000\text{ Watts}$ ( $12.0\text{ kW}$ )
Input AC Voltage	$90\text{ to } 255\text{ V AC}$ ( $120\text{V / 230\text{V}}$ Nominal)
Input Frequency Range	$45\text{ to } 65\text{ Hz}$
Output AC Voltage	Matched to Input Voltage ( $120\text{V or } 230\text{V AC} \pm 5\%$ )
Continuous Output Current	$26\text{ A}$ at $230\text{ V AC}$ / $50\text{ A}$ at $120\text{ V AC}$
Efficiency	$> 93\%$ at full load
No-Load / Idle Power Consumption	$< 35\text{ Watts}$
Inrush Current Protection	Integrated Auto-Soft Start System
Cooling Method	Thermostatically Controlled Variable-Speed Internal Fan
Operating Temperature	$-20^\circ\text{C to } +40^\circ\text{C}$ (Derating above $40^\circ\text{C}$ )
Ingress Rating	IP23 (Dry Compartment Installation)
Dimensions (H $\times$ W $\times$ D)	$340.0\text{ mm} \times 261.0\text{ mm} \times 144.0\text{ mm}$ ( $13.4\text{"} \times 10.3\text{"} \times 5.7\text{"}$ )
Weight	$10.0\text{ kg}$ ( $22.05\text{ lbs}$ )
Certifications & Compliance	CE Marked, ABYC A-28 Compliant, IEC 60945 Marine, RoHS
