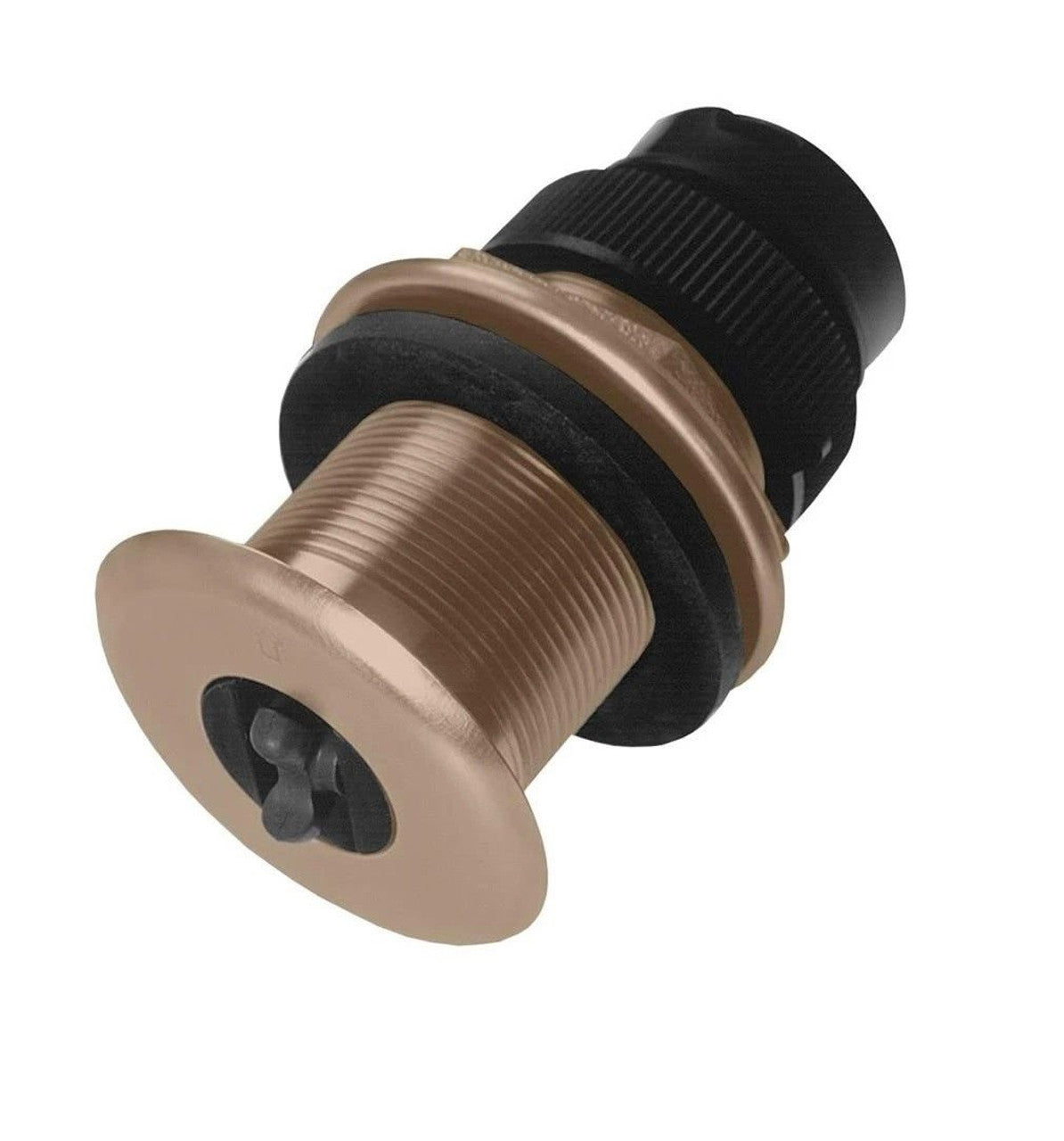

Navico DST-810 Bronze Depth Speed Temp Sensor 000-15736-001
Navico DST-810 Bronze Depth Speed Temp Sensor 000-15736-001
Low stock: 1 left
Couldn't load pickup availability
Navico DST-810 Depth/Speed/Temp Sensor (Bronze)
The Navico DST-810 (Part Number: 000-15736-001) is an advanced thru-hull Smart™ multi-sensor transducer manufactured by Airmar for Navico brands (Simrad, Lowrance, B&G). Encased in a rugged bronze housing suitable for fiberglass or wooden hulls, it measures depth, speed-through-water (STW), and water temperature in a single compact hull penetration.
The DST-810 features an upgraded 5 Hz paddlewheel update rate (five updates per second) for exceptionally smooth speed data, along with integrated Bluetooth® connectivity for wireless calibration using the Airmar CAST™ app. It includes an integrated attitude sensor for heel and trim measurement and outputs processed NMEA 2000 data directly to the vessel backbone without requiring an intermediate signal processing box.
Key Features
-
5Hz Fast-Response Paddlewheel: Increases speed sampling to 5 times per second for smooth, accurate speed-through-water calculations on sailing and high-speed vessels.
-
Integrated Wireless Bluetooth® Calibration: Connects directly to smartphones/tablets via the Airmar CAST™ app to calibrate speed at multiple heel angles and speeds.
-
Built-in Attitude Sensor: Measures vessel heel and trim angles to allow advance sail performance calculations and speed compensation.
-
NMEA 2000® Smart Transducer: Signal processing is handled inside the housing, broadcasting standard PGNs directly to NMEA 2000 networks via Micro-C connector.
-
Self-Closing Water Valve: Removable transducer insert features an internal valve to minimize water ingress during paddlewheel cleaning or servicing.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Navico Group / Manufactured by Airmar |
| Part Code / SKU | 000-15736-001 |
| Housing Material | Heavy-Duty Cast Bronze (For Fiberglass and Wooden Hulls) |
| Transducer Functions | Depth, Speed-Through-Water (STW), Water Temperature, Heel & Trim |
| Depth Frequency | 235 kHz (Prevents interference with 50/200 kHz fishfinders) |
| Max Depth Range | 0.5 m to 100 m (1.6 ft to 330 ft) |
| Speed Range / Update Rate | 0.2 to 45 Knots / 5 Hz (5* per second) |
| Operating Frequency / Data | NMEA 2000® CAN Bus (Direct Micro-C Connection) |
| Wireless Interface | Bluetooth® 4.0 LE (Airmar CAST™ App Compatible) |
| Hull Hole Cutout Size | 51 mm (2-Inch) Standard Thru-Hull Fitting |
| Usable Hull Deadrise | Up to 22 with Included Housing Fairing/Spacer |
| Cable Length | 6 Meters (20 Ft) with NMEA 2000 Micro-C Connector |
| Operating Voltage | 9 V DC to 16 V DC (Powered by NMEA 2000 Network) |
| NMEA 2000 Network Load (LEN) | 3 LEN (150 mA max) |
| Ingress Protection Rating | IPX8 Submersible Transducer Insert |
| Compliance / Approvals | CE, FCC, NMEA 2000 Certified, RoHS |
