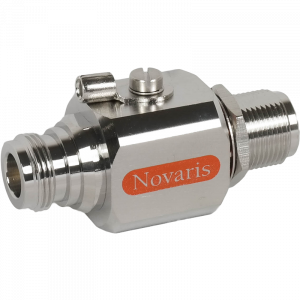

Novaris CU-MF-90-3 UHF M-F 90V 20kA 3GHz RF Surge Protector

Novaris CU-MF-90-3 UHF (M-F) Coaxial RF Surge Protector

The Novaris CU-MF-90-3 is a heavy-duty coaxial RF surge protector designed to protect sensitive radio communications gear, cellular receivers, AIS transponders, and marine VHF/UHF radio systems from transient overvoltages caused by direct/indirect lightning strikes and electrostatic discharge (ESD). Featuring a high-capacitance Gas Discharge Tube (GDT) rated for 20 kA (8/20μs) maximum discharge current, it clamps dangerous transients before they reach delicate receiver front-ends.

Terminated with a UHF Male (PL-259) connector on one port and a UHF Female (SO-239) connector on the other, the CU-MF-90-3 allows direct inline installation between antenna feedlines and transceiver panels. Its wideband operation ({DC to 3.0 GHz) and low insertion loss ensure excellent signal throughput and minimal VSWR degradation across standard marine VHF (156-162 MHz), UHF, and 2.4 GHz ISM communications bands.

Key Features

• High Surge Capacity (20 kA): Heavy-duty gas tube divert architecture safely clamps high-energy lightning transients to ground (8/20μs impulse wave).

• Wideband Operation (DC to 3 GHz): Covers marine VHF, UHF, AIS, cellular, and 2.4 GHz Wi-Fi bands with minimal insertion loss (< 0.2 dB).

• Direct Inline Mounting: UHF Male to Female configuration connects directly to transceivers or bulkheads without extra patch cables.

• Replaceable Gas Discharge Tube: Field-serviceable GDT capsule permits fast maintenance after a high-energy suppression event.

• Rugged Metallic Housing: Weather-resistant metal enclosure with low contact resistance ground stud ensures long-term reliability in salt fog and high-vibration marine environments.

Specifications
