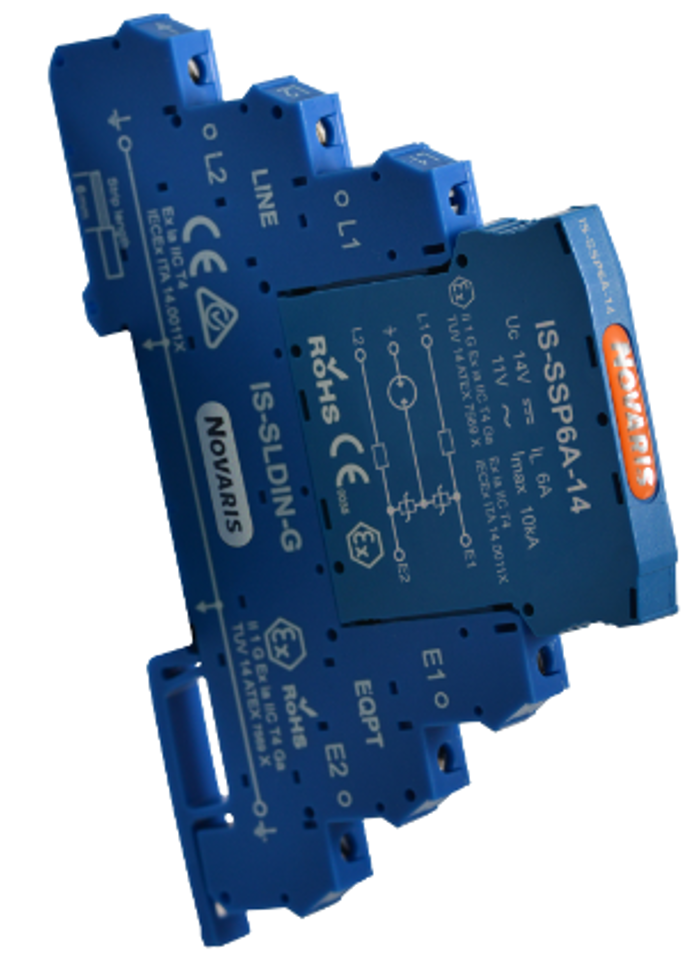

Novaris SSP6A-14-G Slimline 14V Surge Protector

Novaris SSP6A-14-G Slimline Series Signal & Power Surge Protector (14V)

The Novaris SSP6A-14-G is an industrial-grade 14V DIN rail surge protection device (SPD) from the high-density Slimline Series. Designed to protect sensitive process instrumentation, 12V/14V DC power feeds, telemetry loops, and signal lines from transient overvoltages, lightning surges, and induced electrical spikes, the SSP6A-14-G provides multi-stage protection in a ultra-compact 6.2 mm wide DIN module.

Featuring a high-capacity 6 Ampere continuous current rating, the SSP6A-14-G utilizes a multi-stage hybrid circuit combining fast-acting silicon avalanche diodes (SAD) and gas discharge tubes (GDT) to clamp destructive voltage spikes without interrupting normal circuit operation. Its integrated earth/grounding connection via the DIN rail foot simplifies panel wiring while providing a low-impedance path to earth for transient energy dissipation.

Key Features

• Ultra-Slim 6.2mm Width: Saves valuable enclosure DIN rail space, allowing high-density signal line protection in compact control panels.

• Multi-Stage Hybrid Protection: Combines gas discharge tubes (GDT) and transient voltage suppression diodes for ultra-fast response times (<1 ns).

• High 6A Continuous Current Rating: Suitable for both low-voltage sensor signal loops and direct 12V/14V DC power supply lines.

• DIN Rail Mounting with Auto-Grounding: Snaps directly onto standard 35 mm DIN rail with automatic earth grounding through the mounting foot.

• Vibration and Harsh Environment Tested: Enclosed in a rugged, flame-retardant thermoplastic housing designed for industrial and marine applications.
