OceanLED 2010 XFM HD Gen 2 White/Blue/Green

OceanLED 2010 XFM HD Gen 2 White/Blue/Green

Regular price USD $2,112.00 USD
Regular price Sale price USD $2,112.00 USD
Sale Sold out
Shipping calculated at checkout.
Select White/Blue/Green

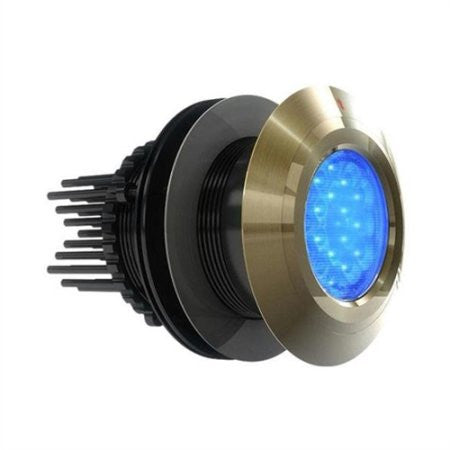

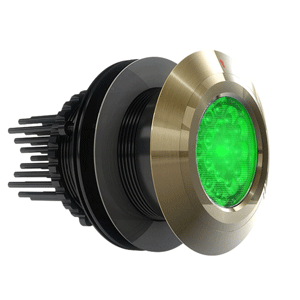

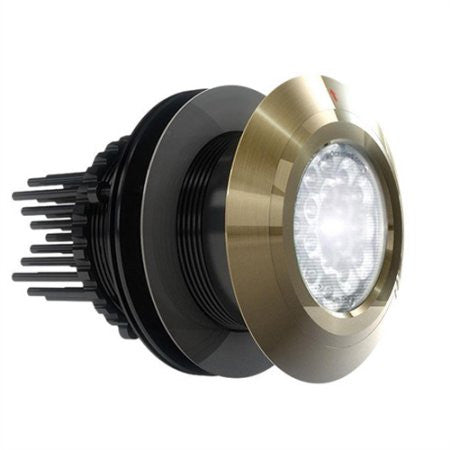

OCEAN LED 001-500744 OCEANLED 2010 XFM HD GEN2 ULTRA WHITE, Midnight Blue and Sea Green


2010XFM HD Gen2
High Definition Underwater Lighting Excellence

XFM models, or Xchangeable Flush Mounts, are just that - they're exchangeable without hauling should servicing ever be needed. Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.

At 7,000-fixture lumen brightness the 2010XFM HD Gen2 model is 67% brighter than its predecessor by exploiting the next generation of High Definition LEDs from Cree.

Suitable for all hull types up to and over 65' (20m) using 2-6 lights with spacing of 3-5' (1-1.5m) - for metal hulls, add the Delrin Isolation Sleeve accessory. Deutsch plug-and-play quick connectors make this light a quick fit.

Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium™ glass lens.

Mounting Recommendations 2010XFM HD
Boat size up to and over 65' (20m)
Transom / Hull spacing 3-5' (1-1.5m)
Transom quantity 2-6
Hull quantity 4+/side
Maximum hull thickness 4" (100mm)
Installation depth (to top of fixture) 10-12in (250-300mm)
Light output equivalent to 250W HID Metal Halides
Fixture Lumens* (total light output from a finished fixture) 7000
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 9-32V DC
Minimum-Maximum operating voltage AC (AC/optional) 90-270V AC
Current / Amp draw (DC) 12V DC 5.8A 24V DC 2.9A
Current / Amp draw (AC/optional) 110V AC 50/60HZ 0.76A 240V AC 50/60HZ 0.35A
Approx. light penetration (avg. water quality) 59' (18m)
Approx. Light penetration (perfect water quality) up to 140' (45+m)
Driver type External
Driver size (L x W x H) TBA
Diameter of fixture 619/64" (160mm)
