OceanLED 3010 XFM HD Gen 2 White/Blue/Green

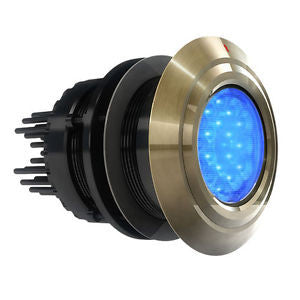

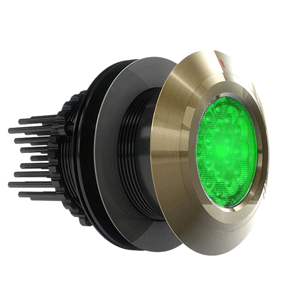

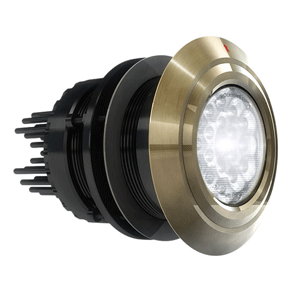

OCEANLED 3010 XFM HD GEN2 ULTRA WHITE, MIDNIGHT BLUE, SEA GREEN
XFM models, or Xchangeable Flush Mounts, are just that - they're exchangeable without hauling should servicing ever be needed. Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.
At 10,000-fixture lumen brightness the 3010XFM HD Gen2 model is 43% brighter than its predecessor by exploiting the next generation of High Definition LEDs from Cree.
Suitable for all hull types over 65' (20m) using 4 or more lights with spacing of 3-6' (1-1.8m) - for metal hulls, add the Delrin Isolation Sleeve accessory. Deutsch plug-and-play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium™ glass lens. Three super bright LED color options.
|Mounting Recommendations||3010XFM HD|
|Boat size||over 65' (20m)|
|Transom / Hull spacing||3-6' (1-1.8m)|
|Maximum hull thickness||4" (100mm)|
|Installation depth (to top of fixture)||10-12" (250-300mm)|
|Light output equivalent to||2 x 100W HID Metal Halides|
|Fixture Lumens* (total light output from a finished fixture)||10000|
|Typical LED life expectancy||40,000+ Hours|
|Minimum-Maximum operating voltage DC||9-32V DC|
|Minimum-Maximum operating voltage AC (AC/optional)||90-270V AC|
|Current / Amp draw (DC)||12V DC 10A24V DC 5A|
