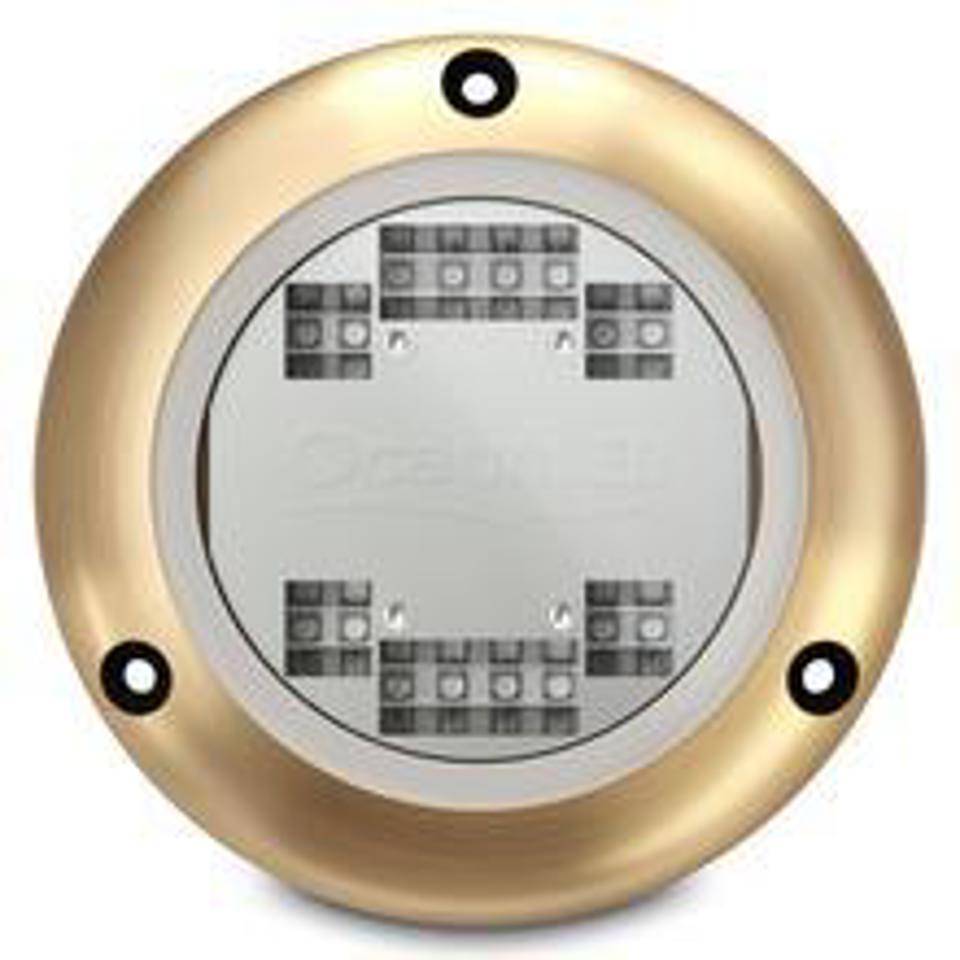

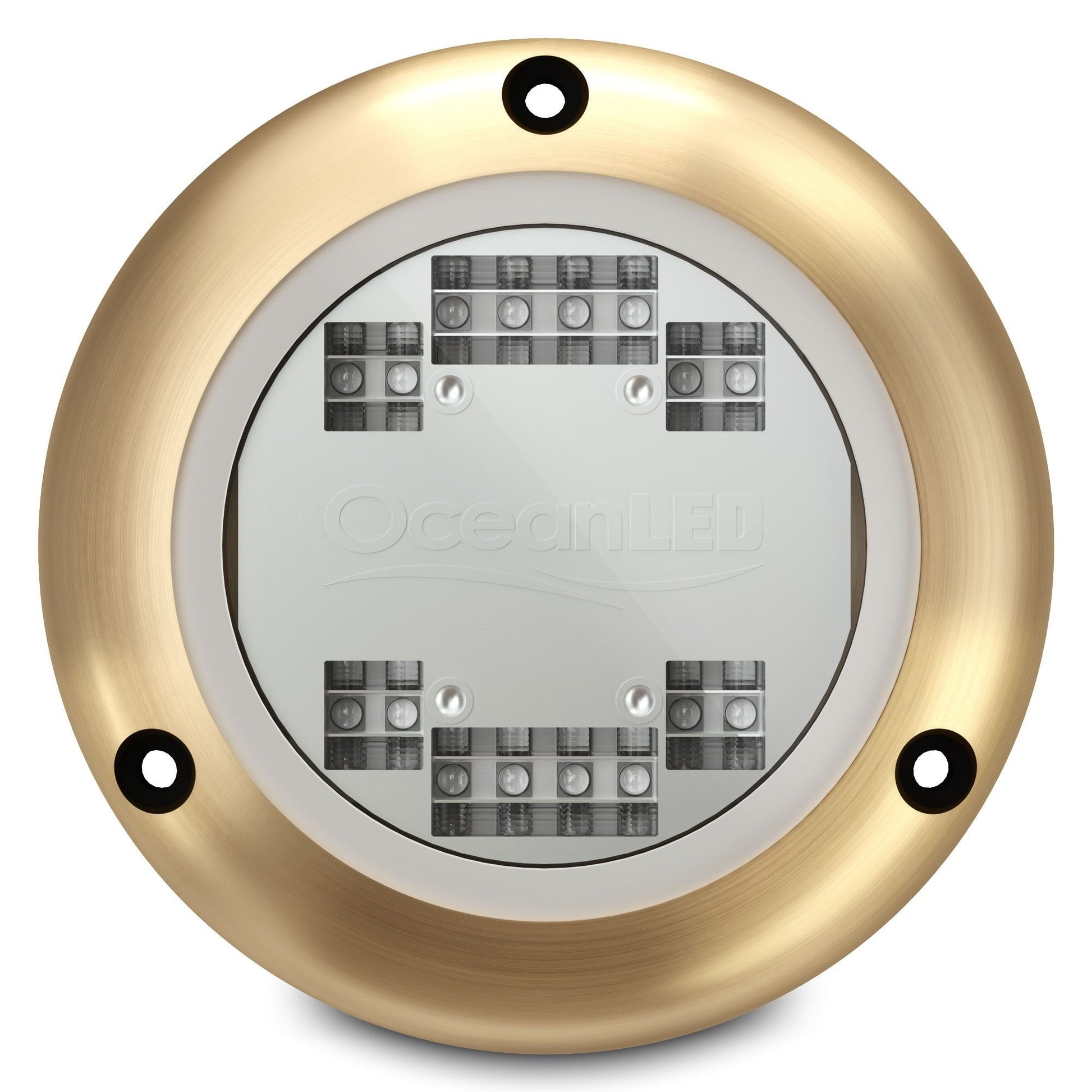

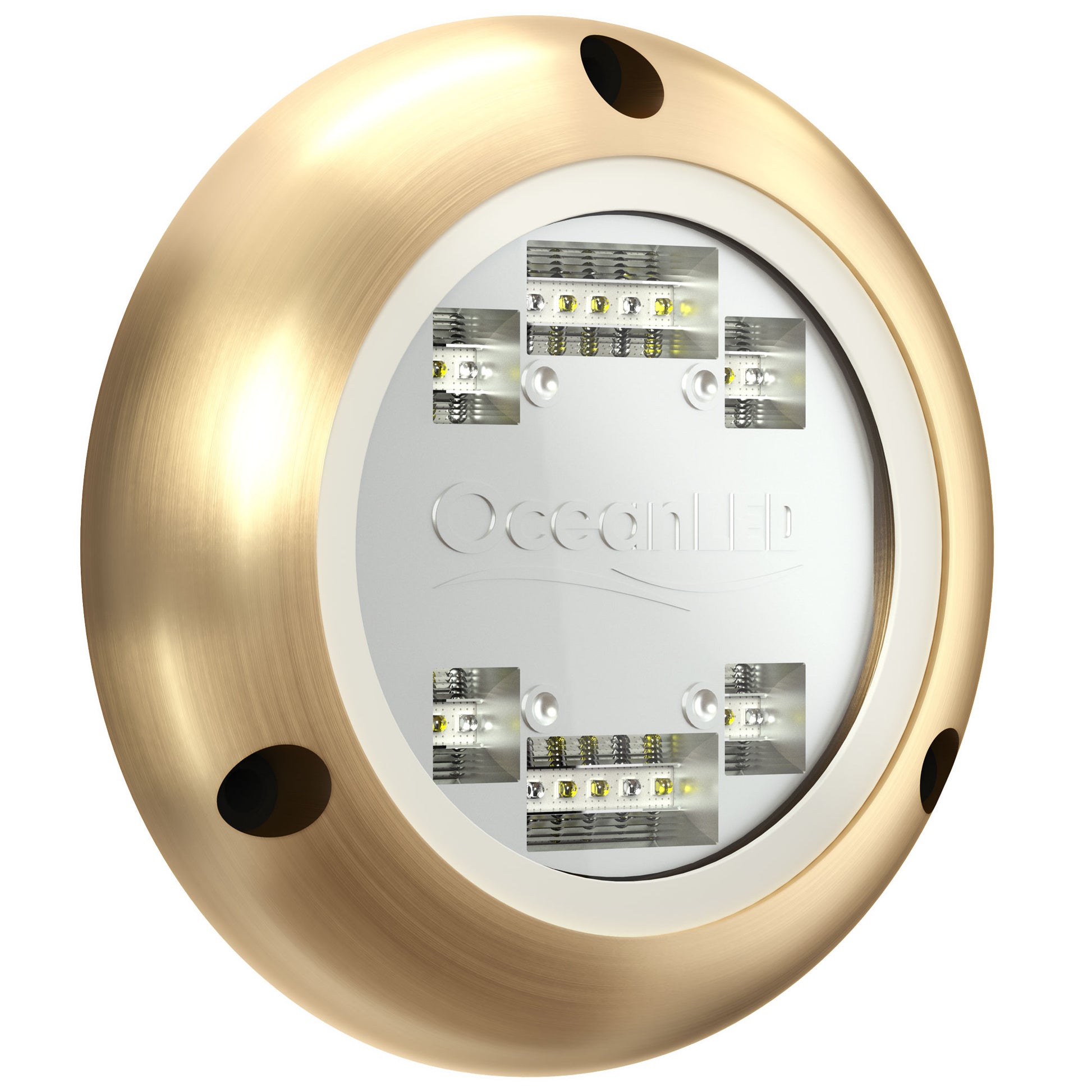

OceanLED Sport S3124s Dual White / Blue 012103BW
OceanLED Sport S3124s Dual Colour White / Blue 012103BW
Advanced optics, designed exclusively by OceanLED create an optically efficient 90˚ top beam angle with a focused 20˚ side beam displaying a striking amount of water penetration and a significantly larger illuminated area. With twice the amount of LEDs as its competitors, the dual colour S3124s is the leader in its class. Simply toggle the power between white, blue, strobe and fade modes.
• Twice the amount of LEDs than its competitors, illuminating a larger area.
• 60% narrower focused side beam angle providing greater water penetration.
• True 90˚ beam angle with no fading at the edge gives better illumination
5,600 LUMENS / 3,000 FIXTURE LUMENS
Outstanding performance from this small, bright light makes it the obvious choice for those who want to stand out from the crowd.
90˚/20˚ BEAM ANGLE
A true wide-angled, focused beam lights up a large area of the water.
COMPACT AND SIMPLE DESIGN
Made from corrosion resistant Alu Bronze, there is a lot packed into this 10cm light.
SIMPLE TO INSTALL 12.5mm hole in the hull to feed the cable through and 3 screws to hold in place. No bonding required.
EASY TO CLEAN
Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use it.
ADVANCED MODES Randomised strobing with fish-strobe and fade between blue/white. Select your desired startup colour.
ACTIVE THERMAL CONTROL
ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely.
90° Top Beam Angle Up to 3000 Fixture Lumens
20° Side Beam Angle Rectangular Beam
- 60% narrower focused side beam angle providing greater water penetration.
- True 90˚ beam angle with no fading at the edge gives better illumination.
- Twice the amount LEDs than its competitors, illuminating a significantly larger area.
- Compact and simple design
- Simple to install
- Easy to clean
- Fish-Strobe Mode
- Midnight Blue / Ultra White
Sport Series LED Light and Cable
In-line Fuse Kit
Quick Install Guide
|Typical LED life expectancy||40,000+ Hours|
|Minimum-Maximum operating voltage DC||9-32V DC|
|Current / Amp draw (DC)||12V DC 3.6A / 24V DC 1.7A|
|Boat size||up to 65’ (20m)|
|Transom / Hull spacing||2-4’ (0.5-1.2m)|
|Installation depth (to top of fixture)||8-10” (20-25cm)|
|Extension cable length (standard)||9.84’ (3m)|
|Hole cut-out for cable entry||1/2” (12.5mm)|
|Material||AB2 Aluminium Bronze|
Sport Series Installation Manual
Sport Quick Start Guide
