OceanLED

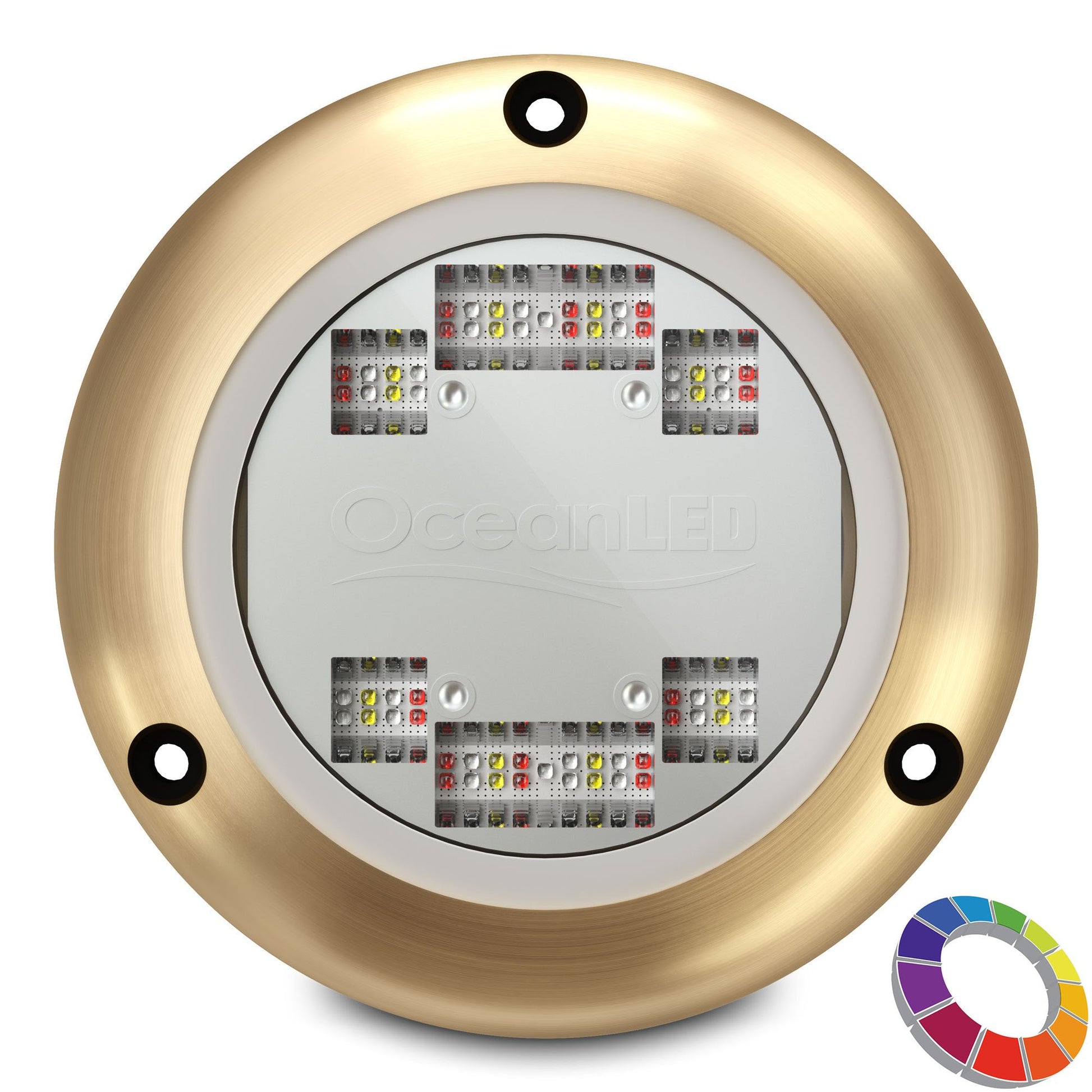

OceanLED Sport S3166s Colours - 012110C

OceanLED Sport S3166s Colours - 012110C

Pre order

$ 749.00 USD
$ 749.00 USD $ 749.00 USD
Sale Pre Order
Shipping calculated at checkout.
Color

Sport S3166s

OVERVIEW

The OceanLED Sport series is the perfect choice for fishing and cruising in small to medium sized boats.

FULL RGBW MULTI-COLOUR

Whether fishing or enjoying time on the water with friends of family, you can choose the perfect colour.

ADVANCED OPTICS

  • Narrower focused side beam angle providing greater water penetration.
  • True 90˚ beam angle with no fading at the edge gives better illumination.

Up To 3,500 Fixture Lumens Up To 3,500 Fixture Lumens90° Top Beam 90° Top Beam
Rectangular Beam Rectangular Beam               20° Side Beam 20° Side Beam

  • Full RGBW Multi-Colour
  • Compact and simple design
  • Narrower focused side beam angle providing greater water penetration.
  • True 90˚ beam angle with no fading at the edge gives better illumination.
  • Simple to install
  • Easy to clean
  • Fish-Strobe Mode
  • Active Thermal Control

Technical

Lumens 8448
Fixture Lumens 3500
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 9-32V DC
Current / Amp draw (DC) 12V DC 5.5A / 24V DC 2.4A
Driver type Internal, Reverse Polarity Protected

Mounting Recommendations

Boat size Up to 65’ (20m)
Transom / Hull spacing 2-4’ (0.5-1.2m)
Transom quantity 2-6
Installation depth (To top of fixture) 8-10” (20-25cm)

Physical

Total weight 700g
Extension cable length (standard) 9.84’ (3m)
Hole cut-out for cable entry 0.5” (12.5mm)
Material AB2 Aluminium Bronze

Accessories

4 Way V DC Power Junction Box 019901



PDF icon Sport S3166s Marine Spec Sheet

View full details
