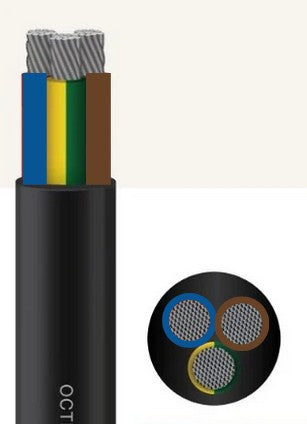

Octeve SH-3C2.5-TXL-A3BK Marine Power Cable

Octeve SH Series 3-Core 2.5mm² Flexible Marine AC Power Cable

The Octeve SH-3C2.5-TXL-A3BK is a heavy-duty, 3-core 2.5mm² flexible tinned copper AC power cable engineered for main shipboard AC power distribution, branch circuit wiring, shore power feeds, and marine generator interconnections. Rated at 0.6/1kV, it features flexible Tinned Annealed Copper Wire (TACW) conductors to minimize electrical resistance and prevent inter-strand oxidation in humid, salt-air marine environments.

Insulated with high-grade, halogen-free cross-linked High-Elastic Polypropylene Rubber (HEPR) and encased in a low-smoke zero-halogen (LSHF) flame-retardant SHF-1 outer sheath, this cable withstands direct sunlight, ozone exposure, and high operating temperatures. Its core configuration features standard AC phase coloring (Brown = Active/Live, Blue = Neutral, Yellow/Green = Earth/Ground) for reliable installations.

Key Features

• Tinned Annealed Copper Conductor: High-flexibility Class 5 stranded tinned copper offers maximum protection against moisture degradation and galvanic corrosion.

• High-Temp HEPR Insulation: Halogen-free, water-resistant insulation with high dielectric strength and continuous rating up to +110°C.

• LSHF & Flame Retardant (SHF-1): Low-smoke halogen-free outer sheath minimizes toxic gas emissions and satisfies IEC 60332-3-22 flame-spread standards.

• Standard Marine AC Core Identification: Color-coded cores (Brown/Blue/Yellow-Green) streamline connection to main AC breaker panels and inverter transfer switches.

• Sunlight & Ozone Resistant: Outer jacket designed for routing through engine rooms, humid bilges, or open deck conduits without thermal or UV degradation.
