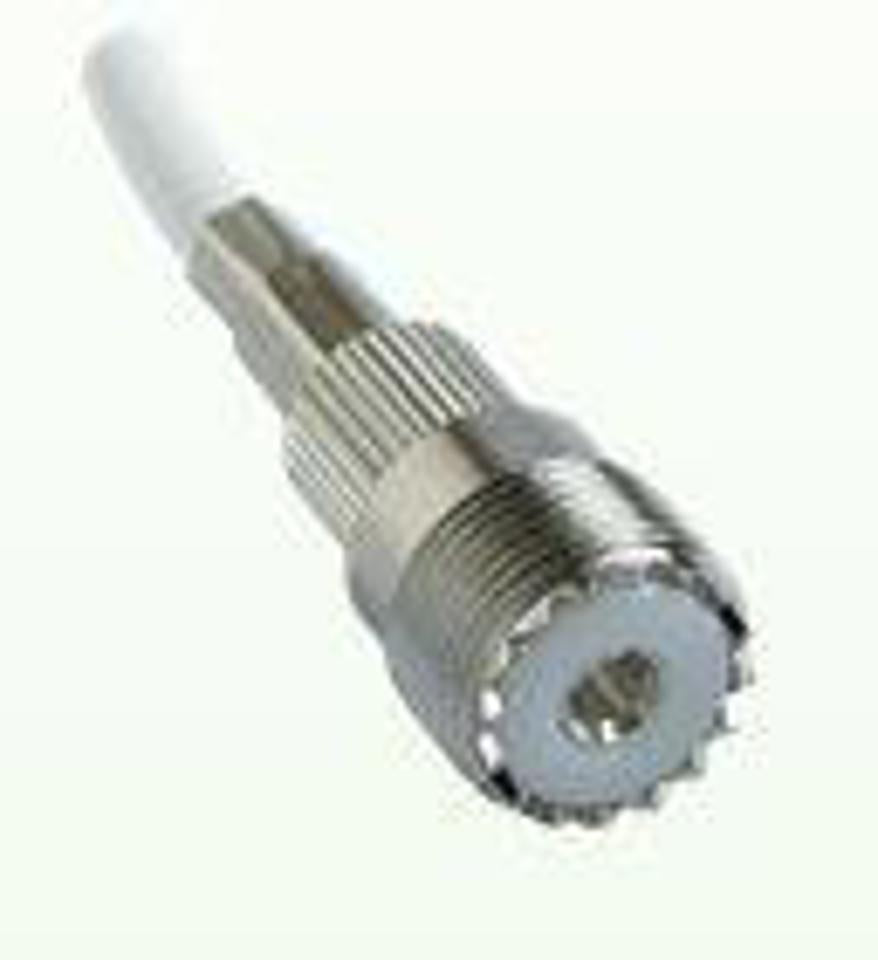

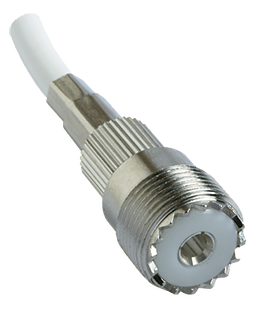

Pacific Aerials P1080 SO239 Jack Connector

Pacific Aerials P1080 SO239 Inline Crimp Jack for RG-58 Coaxial Cable

The Pacific Aerials P1080 is a marine-grade SO239 (UHF Female) coaxial connector designed for inline termination onto standard 5 mm (0.195 in) RG-58 50 Ω coaxial cable. It provides a reliable RF interface to connect marine VHF, AIS, and UHF/CB radio installations to antenna feedlines, extension leads, or deck pass-through fittings.

Constructed with a nickel-plated brass body and a gold-plated center socket contact, the P1080 utilizes a crimp-ferrule attachment system combined with a solder or crimp center pin to ensure a stable, low-loss RF connection. Built specifically to endure harsh marine environments, it delivers maximum corrosion resistance and mechanical strain relief when properly sealed with heat-shrink tubing.

Key Features

• Direct RG-58 Fitment: Engineered specifically for 50 Ω RG-58 5 mm outer diameter coaxial cable.

• High-Conductivity Gold-Plated Center Pin: Minimizes signal loss and contact resistance across marine VHF (156-162 MHz) and UHF frequencies.

• Corrosion-Resistant Nickel Plating: Heavy-duty nickel-plated brass body protects against saltwater spray and atmospheric oxidation.

• Secure Crimp Attachment: Crimp ferrule provides high tensile strength, holding the cable sheath firmly against mechanical strain.
