Pacific Aerials P1147 N Jack Crimp RG-58 Connector

Pacific Aerials N Jack Crimp Connector for RG-58 Cable

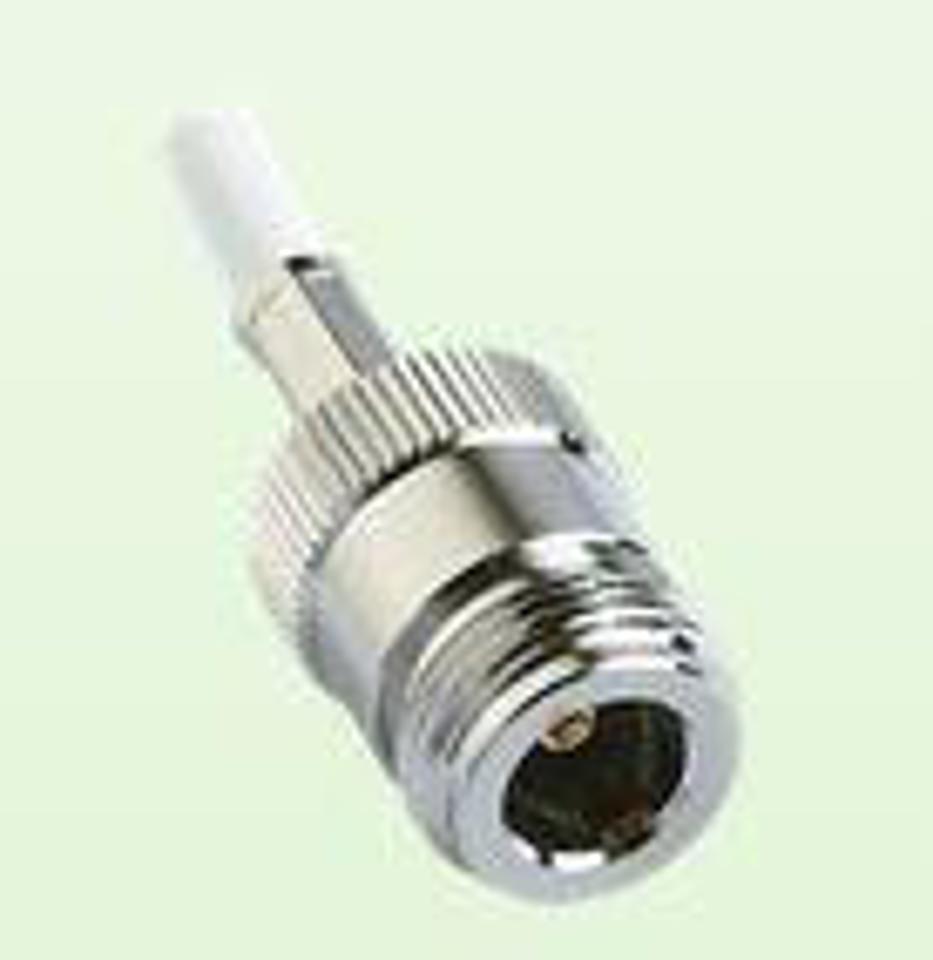

The Pacific Aerials P1147 is a precision-engineered 50-ohm N female (jack) coaxial crimp connector designed for termination onto 50 Ω RG-58 C/U and RG-58A/U marine coaxial cables. High-frequency RF equipment—such as marine AIS transponders, cellular boosters, radar systems, and high-gain VHF installations—frequently utilizes Type N connectors to minimize insertion loss and maintain constant 50-ohm impedance across extended frequency bands (0-6 GHz).

Constructed with a nickel-plated brass body and gold-plated center pin contacts, the P1147 ensures maximum signal conductivity and corrosion resistance in marine environments. The crimp-style design utilizes a crimp ferrule over the cable shield and a solder-or-crimp center pin to deliver strong mechanical retention and consistent RF performance under vessel vibration.

Key Features

• Low-Loss 50-Ohm Impedance: Engineered for low-loss RF energy transfer across VHF, AIS, cellular, and low-band microwave frequency spectrums.

• Corrosion-Resistant Plating: Nickel-plated brass shell and gold-plated pin resist tarnish and oxidation in humid salt-air environments.

• Crimp-Style Outer Ferrule: Provides high mechanical pull-off strength and 360-degree shielding protection against RF interference (RFI).

• High-Frequency Handling: Suitable for frequencies up to 6 GHz, outperforming standard UHF (PL-259/SO-239) connectors in loss critical networks.

• PTFE/Teflon Dielectric: High-temperature insulator ensures stable performance during pin soldering and high-power RF transmission.
