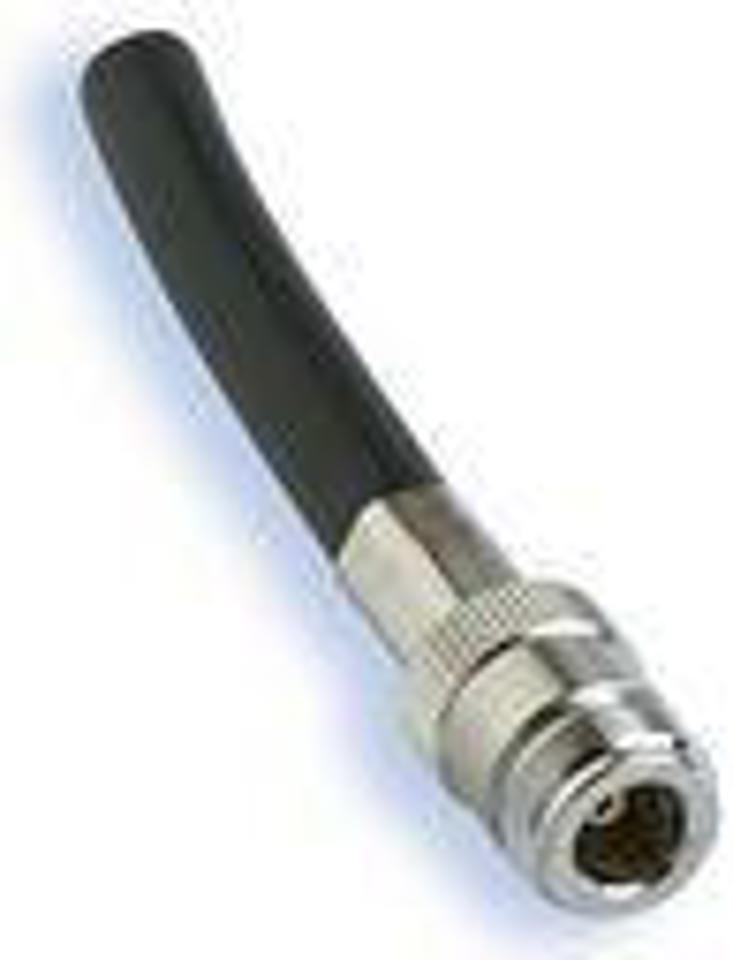

Pacific Aerials P1161 N-Type Female Jack Connector

Pacific Aerials P1161 N-Type Female Jack Connector (LMR-400)

The Pacific Aerials P1161 is a high-performance, 50-Ohm N-type female jack coaxial connector engineered specifically for termination onto low-loss 10.3 mm (0.400 in) coaxial cables such as LMR-400, RG-213, and Marine 400. Designed for critical marine VHF, AIS, cellular booster, and satellite radio antenna drops, it provides robust mechanical coupling and ultra-low signal attenuation across high-frequency RF networks.

Constructed from nickel-plated brass with a gold-plated center pin contact and PTFE (Teflon) dielectric insulation, the P1161 maintains structural integrity and low VSWR in high-vibration, salt-spray marine environments. Its heavy-duty clamp/solder design delivers superior RF shielding and pull-off strain relief, preventing water migration into the inner cable core when installed on deck or masthead terminations.

Key Features

• Ultra-Low Loss RF Transmission: Optimized internal impedance profile ensures maximum signal transfer up to 6 GHz with minimal return loss.

• Corrosion-Resistant Nickel/Gold Plating: Heavy nickel-plated brass body with gold-plated central female receptacle resists marine oxidation and contact wear.

• High-Grade PTFE Dielectric: Teflon insulator maintains stable dielectric constant under extreme temperature swings and high transmit power.

• Heavy-Duty Strain Relief: Secure clamp assembly retains heavy LMR-400 cable jackets under intense wind vibration and mast whipping forces.

• Weatherproof Marine Architecture: Internal silicone rubber sealing gasket prevents moisture intrusion into the coaxial junction.
