Pacific Aerials P1213 FastFit BNC Male Connector

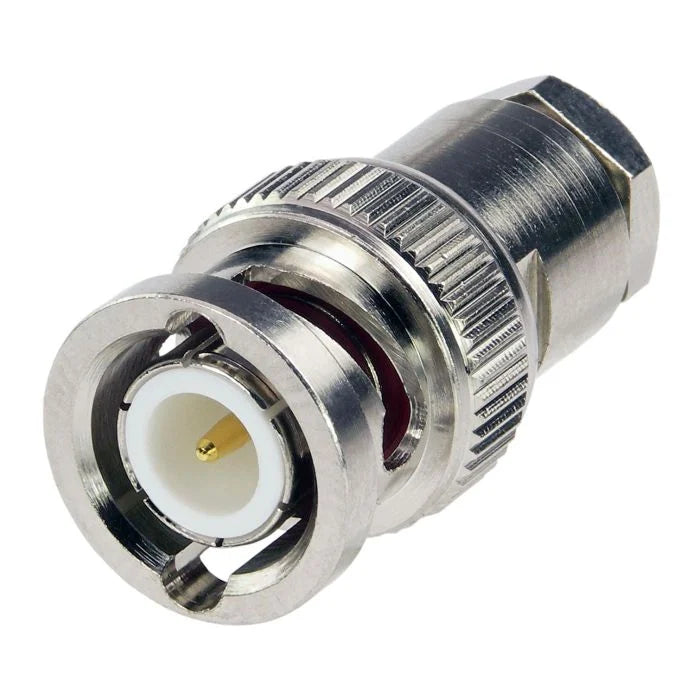

Pacific Aerials P1213 FastFit BNC Male Connector Plug

The Pacific Aerials P1213 is a high-grade BNC male coaxial connector plug featuring Pacific Aerials' FastFit solderless cable termination system. Engineered for fast, tool-efficient field termination directly onto standard 5 mm (0.200 in) RG-58 coaxial cable, it eliminates the need for soldering irons or specialized crimping tools during installation.

Designed for 50 Ω RF signal integrity, the P1213 features a classic quarter-turn bayonet coupling mechanism for rapid, tool-free connection and disconnection. It is widely used in marine GPS receivers, portable VHF transceivers, AIS receivers, RF test equipment, and deck-mounted antenna feedlines where quick-disconnect capability and robust strain relief are required.

Key Features

• Solderless FastFit System: Fast, clean field termination on RG-58 cable without heating tools or soldering irons.

• Quarter-Turn Bayonet Coupling: Locks securely onto BNC female sockets with a simple twist, preventing accidental disconnection under severe vibration.

• Nickel-Plated Brass Body: Offers superior resistance to marine salt spray, oxidation, and mechanical wear.

• Gold-Plated Center Pin: Delivers ultra-low contact resistance and prevents fret corrosion at the RF signal contact.

• Precision 50 Ω Impedance: Ensures minimal signal attenuation across VHF (156-162 MHz), GPS (1575.42 MHz), and general RF communications bands.
