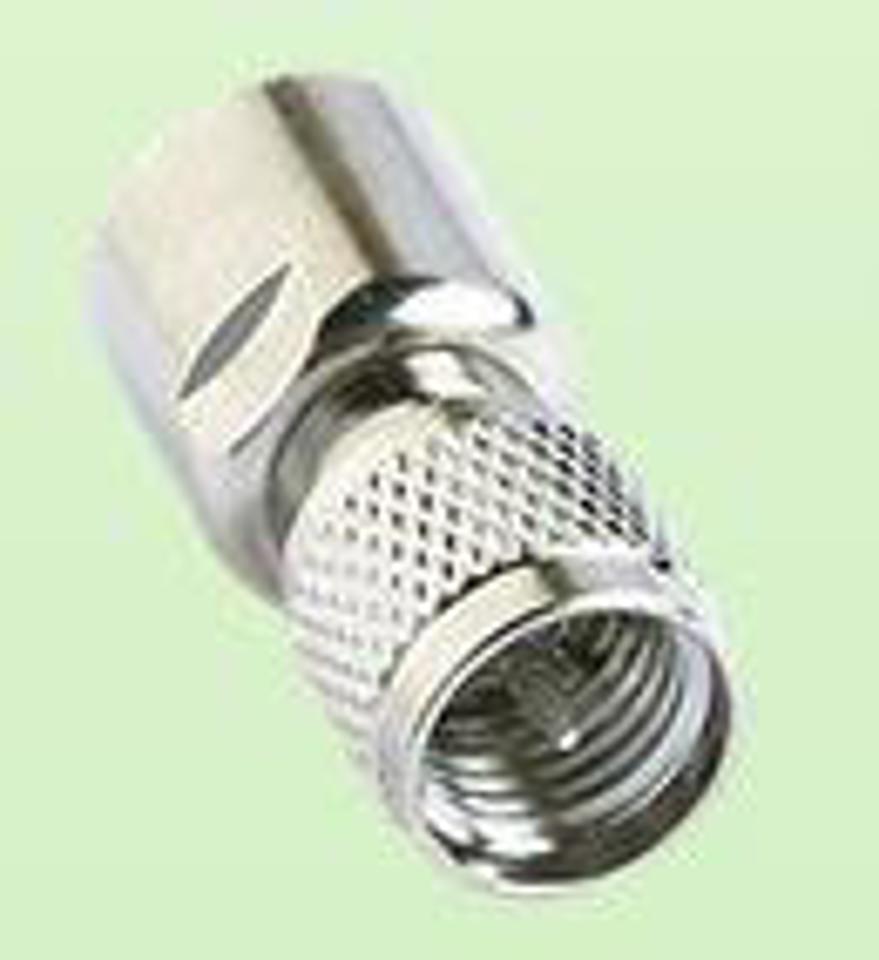

Pacific Aerials P1214 FastFit Mini-UHF Male Connector

Pacific Aerials P1214 FastFit Mini-UHF Male Connector Plug

The Pacific Aerials P1214 is a high-grade Mini-UHF male coaxial connector plug featuring Pacific Aerials' FastFit solderless cable termination design. Engineered as a compact, space-saving alternative to standard PL259 UHF connectors, it delivers low-loss 50 Ω RF signal transmission in tight bulkheads, mobile radio dashboards, and marine console installations where connector clearance is restricted.

Designed specifically for standard 5 mm (0.200 in) coaxial cables such as RG-58, RG-58AU, and Low-Loss LMR-195, the P1214 FastFit system eliminates the requirement for soldering fine conductors on site. Constructed from nickel-plated brass with a fine-threaded 3/8-24 UNS coupling nut and a high-conductivity center pin, it resists corrosion, salt spray, and vibration-induced loosening in marine and commercial mobile radio environments.

Key Features

• Compact Form Factor: Scaled-down profile provides maximum clearance behind dash panels, commercial mobile radios, and compact VHF transceivers.

• Solderless FastFit Termination: Enables fast, tool-efficient field installation onto RG-58 cable without needing a soldering iron on site.

• Nickel-Plated Brass Body: Protects against environmental oxidation, marine salt air, and mechanical wear.

• Fine Threaded Coupling Ring: 3/8-24 UNS threaded locking design ensures a positive, vibration-proof connection to female Mini-UHF jacks.

• Low RF Insertion Loss: Maintains stable impedance (50 Ω) across marine VHF (156-162 MHz) and commercial UHF/VHF two-way radio bands.
