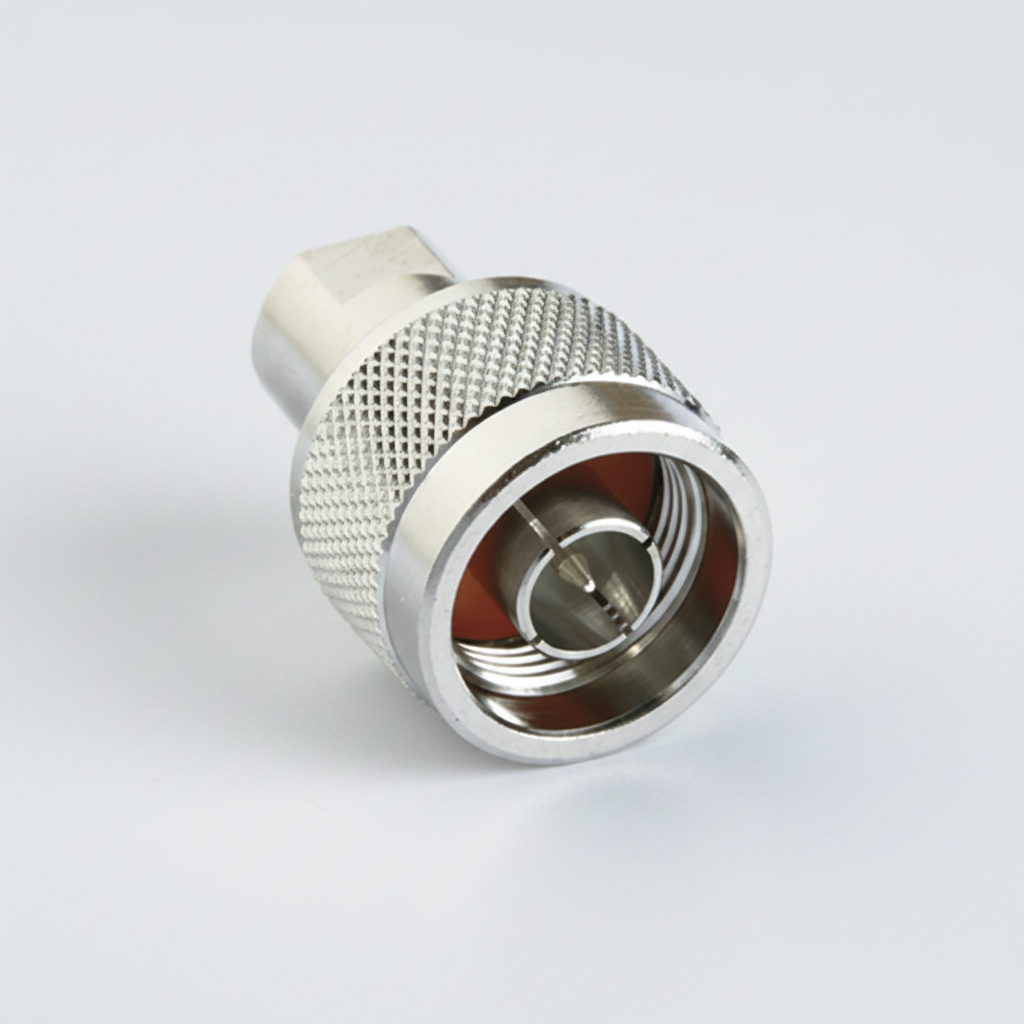

Pacific Aerials P1215 FastFit N-Type Male Connector

Pacific Aerials P1215 FastFit N-Type Male Connector Plug

The Pacific Aerials P1215 is a high-grade N-type male coaxial connector plug featuring Pacific Aerials' proprietary FastFit solderless/crimp termination architecture. Engineered for high-frequency marine VHF, AIS, 4G/5G cellular boosters, and wireless communications equipment operating up to 6 GHz, it provides low-loss 50 Ω RF signal transmission in demanding marine environments.

Designed specifically for standard 5 mm (0.200 in) coaxial cables such as RG-58, RG-58AU, and Low-Loss LMR-195, the P1215 FastFit system eliminates the need for soldering fine conductors on deck or at the masthead. Constructed from nickel-plated brass with a stainless steel threaded coupling nut and a gold-plated center pin, it provides high resistance to saltwater spray, corrosion, and contact degradation. An internal rubber O-ring seal delivers an IP67 waterproof barrier when fully mated to female N-type deck sockets or antenna bases.

Key Features

• Solderless FastFit System: Allows quick, tool-efficient field installation directly onto RG-58 cable without requiring a soldering iron on site.

• High-Frequency RF Performance: Engineered for operation up to 6 GHz with minimal SWR and low insertion loss across VHF (156-162 MHz) and Cellular/LTE (700-2700 MHz) bands.

• Corrosion-Resistant Hardware: Heavy nickel-plated brass body with a stainless steel threaded coupling nut for long-term marine durability.

• Gold-Plated Pin: Ensures low contact resistance and prevents fret corrosion at the signal pin interface.

• Weatherproof IP67 Seal: Built-in internal rubber gasket seals out moisture, condensation, and salt air when mated to female N-type connectors.
