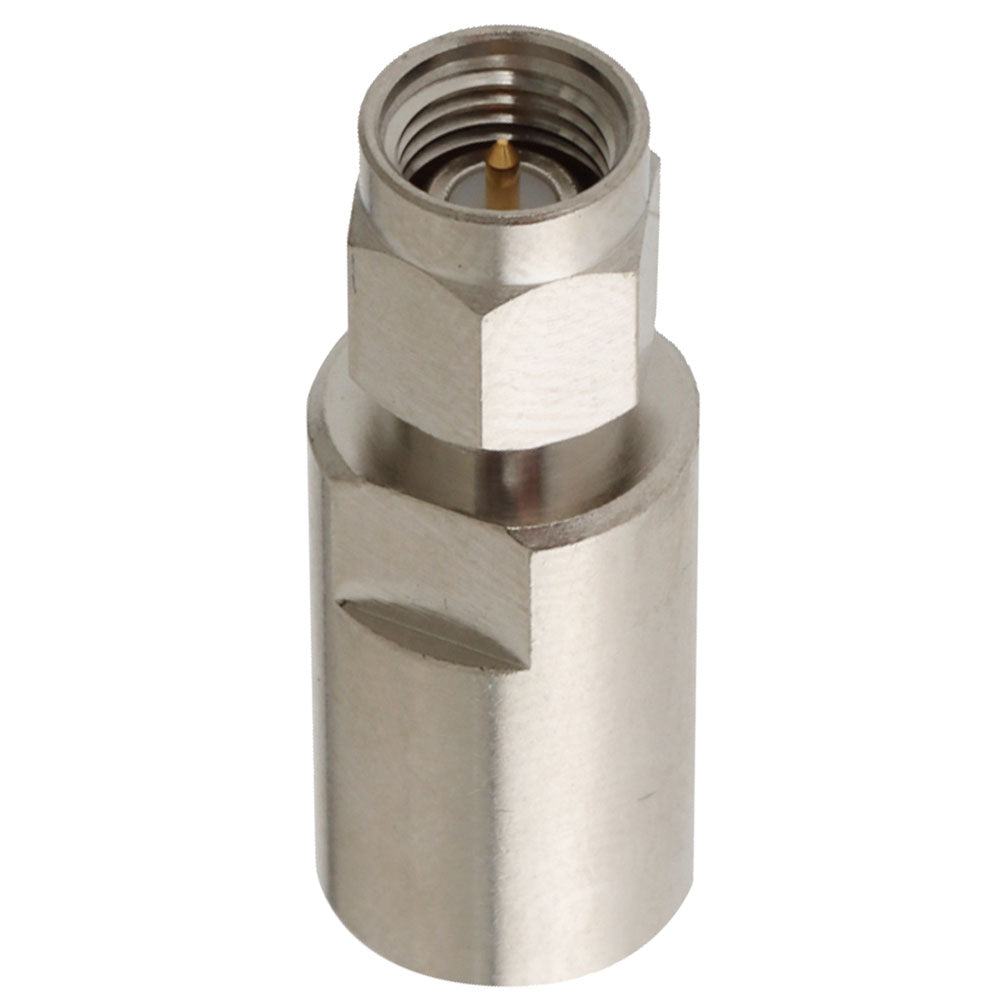

Pacific Aerials P1218 FastFit SMA Male Connector

Pacific Aerials P1218 FastFit SMA Male Connector Plug

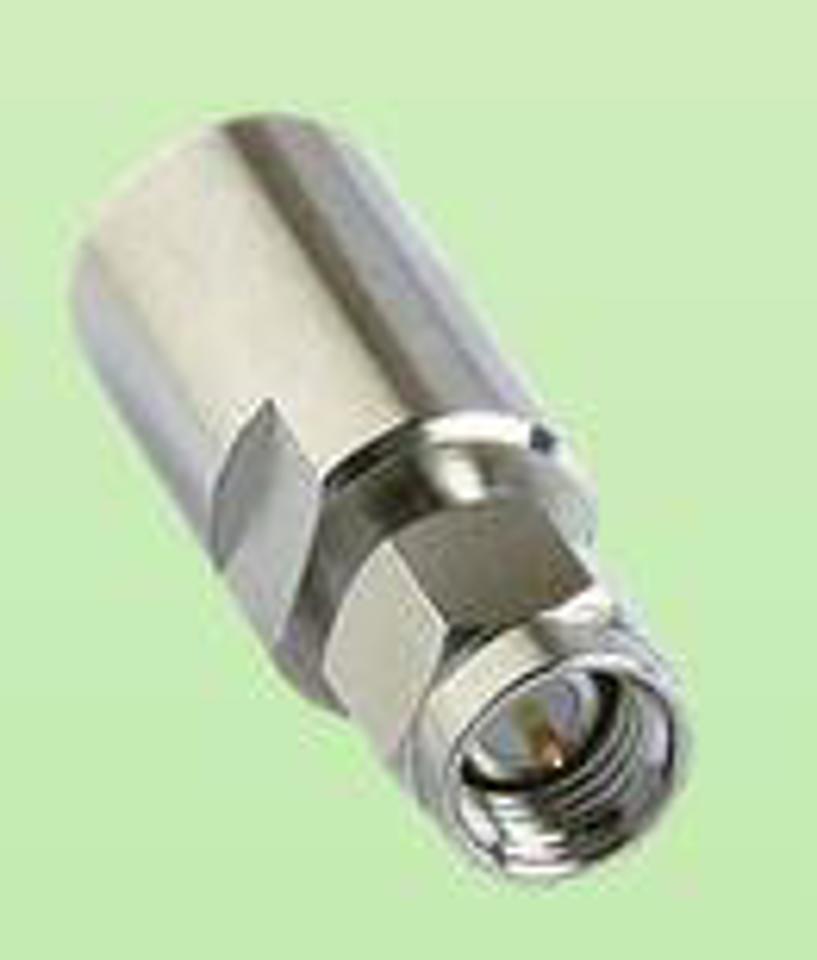

The Pacific Aerials P1218 is a compact SMA male coaxial connector plug featuring Pacific Aerials' FastFit solderless cable termination system. Designed for rapid, tool-efficient field termination directly onto standard 5 mm (0.200 in) RG-58 coaxial cable, it eliminates the need for soldering irons or specialized crimping equipment during on-site installations.

Featuring a sub-miniature 1/4 in-36 threaded coupling mechanism, the P1218 delivers exceptional high-frequency performance and mechanical stability up to 18 GHz. Its small physical clearance allows RG-58 feedlines to be pulled through narrow deck glands, cable tracks, and bulkheads prior to attaching the connector body. It is widely used for interfacing marine GPS receivers, AIS transponders, 4G/5G cellular gateways (e.g., Teltonika, Peplink), and handheld VHF antenna adapters.

Key Features

• Solderless FastFit Termination: Fast, tool-free assembly onto RG-58 cable requiring no heat, solder, or heavy crimping dies.

• Sub-Miniature Threaded Interface: Threaded 1/4 in-36 coupling nut prevents signal degradation or accidental disconnection caused by engine and hull vibration.

• Small Clearance Cable Routing: Allows RG-58 coaxial cable to be routed through tight deck seals and cable paths before snapping on the connector body.

• Corrosion-Resistant Finish: Plated brass construction engineered to withstand salt-air exposure and harsh marine environments.

• High Frequency Capability: Precision 50 Ω impedance rating ideal for high-frequency GPS (1575.42 MHz), Wi-Fi, cellular (698-2700 MHz), and marine VHF/AIS applications.
