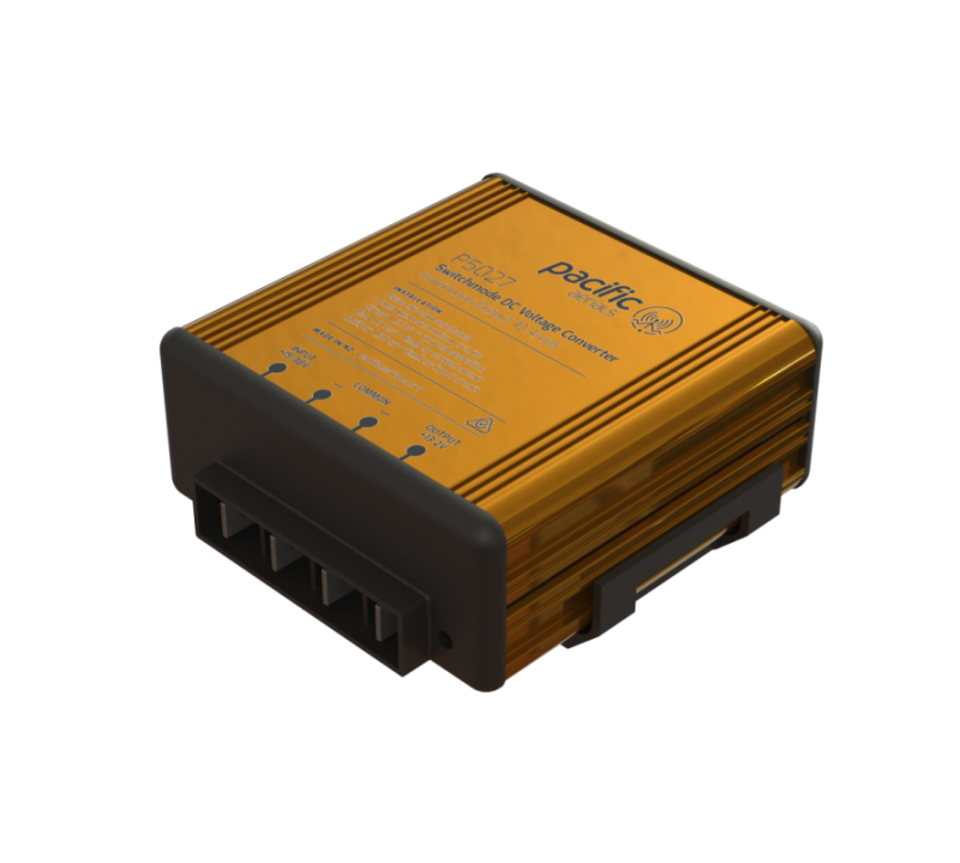

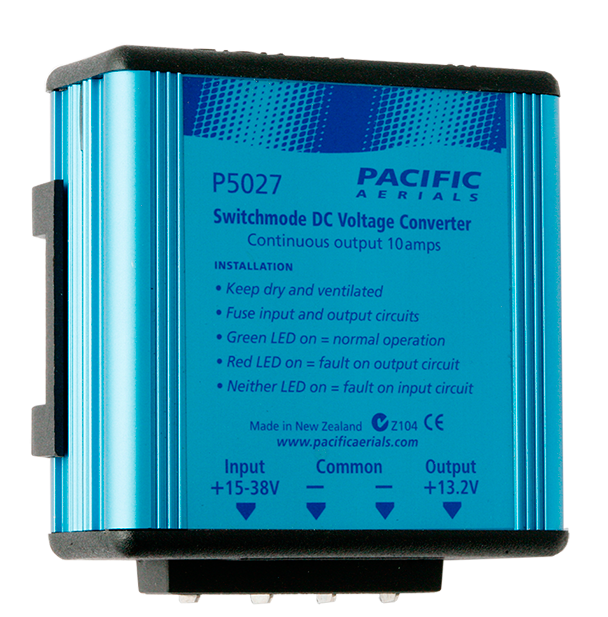

Pacific Aerials P5027 24/12V Switchmode Converter

Pacific Aerials 24/12V Switchmode DC-DC Converter (P5027)

The Pacific Aerials P5027 is a compact, high-efficiency 24V DC to 12V DC Switchmode Voltage Converter engineered to power 12V marine communications equipment, electronics, and navigation instruments directly from 24V vessel, truck, or industrial battery systems. Delivering a steady 10 A continuous output and up to 14 A peak output, it provides clean, regulated power for high-demand electronics like VHF radios, stereo systems, and multifunction displays.

Housed in a blue anodized T6063 marine-grade aluminum chassis, the P5027 is built to withstand extreme vibration, impact, and high-humidity marine conditions. Operating with >90% efficiency, it generates minimal heat and incorporates comprehensive electronic protections against short circuits, over-voltage, reverse polarity, and thermal overloading.

Key Features

• High Efficiency (>90%): Switchmode design minimizes thermal output and power consumption, drawing only ~ 15 mA under no-load conditions.

• 10A Continuous / 14A Peak Load: Supports continuous 10 A power draw with headroom up to 14 A peak for high-power radio transmissions.

• Anodized Marine Aluminum Enclosure: T6063 marine-grade blue anodized casing protects internal circuitry against corrosion, humidity, and vibration.

• Comprehensive Electrical Protection: Protected against reverse input connection, output over-current, over-voltage transients, and thermal overload.

• Status LED Indicators: External green and red LED indicators provide immediate visual status for power output and fault conditions.
