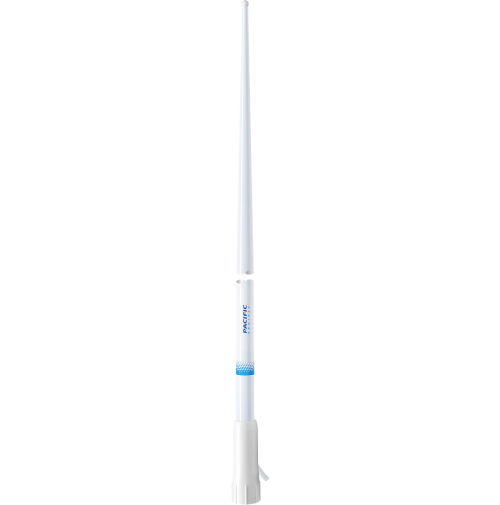

Pacific Aerials P6004 VHF 2.5m UltraGlass Antenna

Pacific Aerials P6004 2.5m VHF UltraGlass Antenna (SeaMaster Classic Range)

The Pacific Aerials P6004 is a rugged, high-performance 2.5-meter (8-foot) VHF marine antenna designed for powerboats, commercial craft, and fishing vessels operating in coastal and offshore environments. As part of the SeaMaster Classic range, it features an UltraGlass radome for superior environmental protection and durability under heavy vibration and high wind speeds.

Constructed with a half-wave design, the P6004 delivers 3 dBi gain (6 dB Marine Gain) with low VSWR across the entire 156–162 MHz marine VHF frequency band. The antenna comes hardwired with a 5m RG-58 coaxial cable and features a glass-filled nylon ferrule for mounting directly onto Pacific Aerials SeaMaster series mounts.

Key Features

• High Marine Gain Performance: Provides 6 dB Marine Gain (3 dBi) for long-range offshore VHF radio communication.

• UltraGlass Radome Construction: Highly durable, UV-stabilized composite radome resists harsh marine weathering and salt spray.

• Integrated Hardwired Cable: Pre-wired with 5.0 meters of RG-58 marine coaxial cable for fast installation.

• Glass-Filled Nylon Ferrule: Robust mounting ferrule designed to attach to standard SeaMaster fold-down and rail mounts.

• Half-Wave Design: Ground-plane independent half-wave configuration ensures stable performance across variable mounting locations.

Specifications
