Pacific Aerials P6034 LongReach 1.8m AM/FM Antenna
Pacific Aerials P6034 LongReach 1.8m AM/FM Antenna
Couldn't load pickup availability

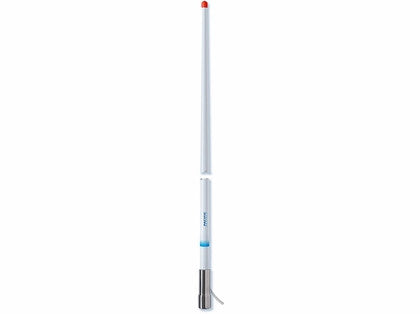

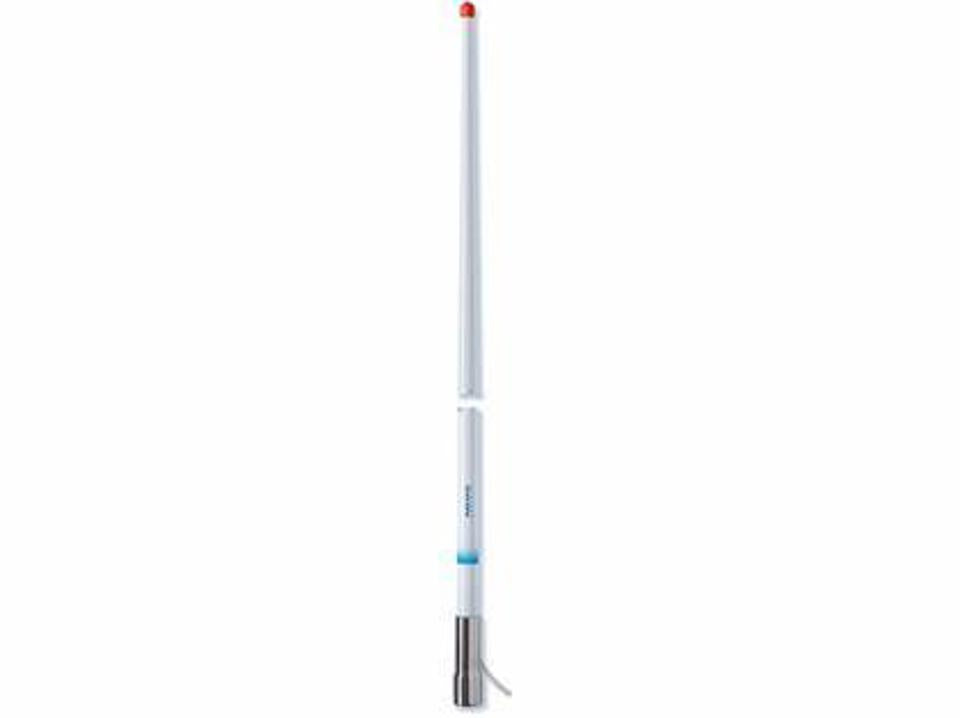

Pacific Aerials P6034 1.8m LongReach AM/FM Marine Antenna
The Pacific Aerials P6034 is a high-performance 1.8-meter (6-ft) AM/FM marine entertainment antenna from the LongReach series. Designed to deliver clear broadcast radio reception onboard powerboats, yachts, and commercial vessels, it picks up weak AM and FM signals over long distances at sea.
Constructed with a UV-inhibited, ultra-smooth white fiberglass radome, the P6034 features an internal wound element engineered specifically for broadcast radio spectrum frequencies. It utilizes a heavy-duty stainless steel ferrule with standard 1"-14 thread mounting and integrates Pacific Aerials' Pro-Set connector system, allowing quick, solderless cable termination during installation.
Key Features
-
Optimized Dual-Band Reception: Engineered internal winding maximizes sensitivity across both AM medium-wave and FM broadcast bands.
-
Pro-Set Solderless Cable System: Fast, reliable cable termination simplifies wire routing through tight bulkheads and decks.
-
UV-Inhibited White Radome: High-gloss fiberglass radome resists yellowing, chalking, and environmental breakdown under harsh UV exposure.
-
Rugged Stainless Steel Ferrule: Precision-machined 1"-14$ threaded stainless steel base provides structural stability in high wind speeds.
-
VHF Match Aesthetic: Matches the physical design profile of standard 1.8m (6ft) VHF antennas for a balanced helm/arch appearance.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Pacific Aerials |
| Part Code / SKU | P6034 |
| Component Category | Marine RF Communications / AM/FM Entertainment Antennas |
| Frequency Coverage | AM: 535 kHz to 1605 kHz / FM: 88 MHz to 108 MHz |
| Impedance | 93 Ohms (Optimized for Marine Stereo Tuners) |
| Radome Material | UV-Stabilized White Gloss Fiberglass Composite |
| Ferrule / Base Fitting | Stainless Steel with Standard 1"-14 Female Thread |
| Termination System | Pro-Set Solderless Connector System |
| Cable Connection | Low-Loss Coaxial Cable Lead (via Pro-Set Plug) |
| Overall Length | 1.8 m (∼ 6.0 ft) |
| Unit Weight | 0.45 kg (∼ 0.99 lbs) |
| Compliance & Approvals | RoHS Compliant, CE Marine Standards |
