Pacific Aerials P6116 AM/FM Through-Deck Mount

Pacific Aerials SeaMaster Pro AM/FM Through-Deck Mount

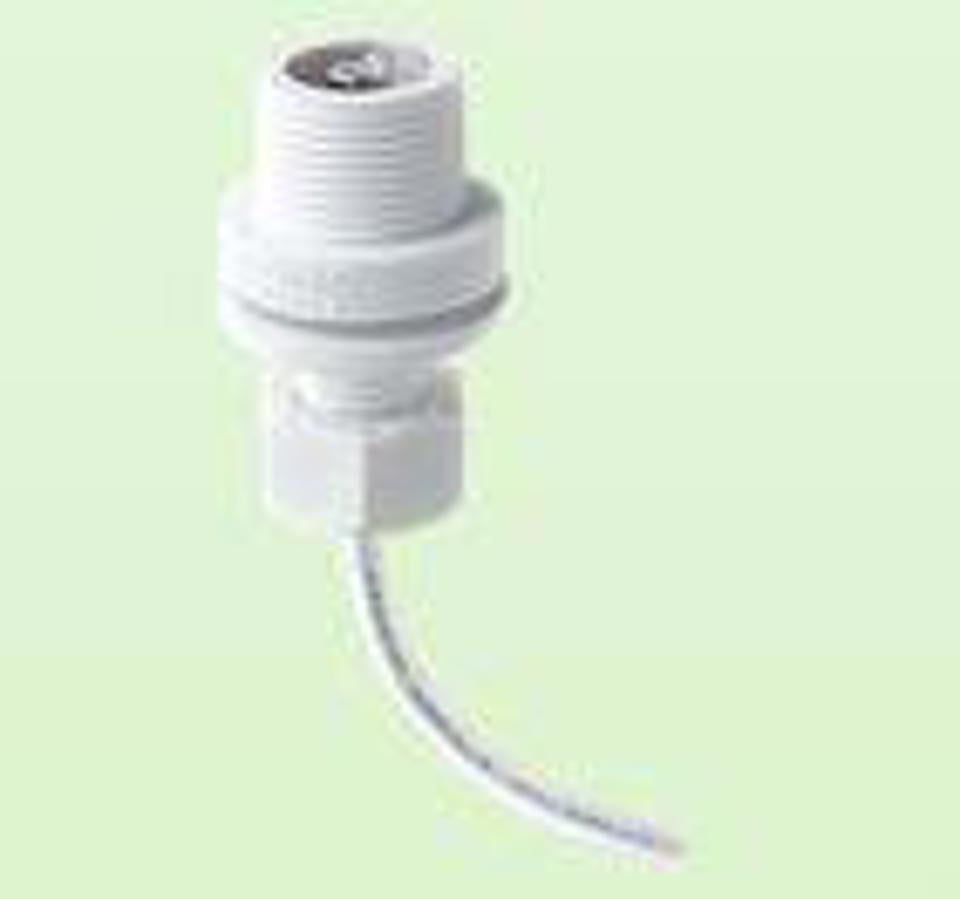

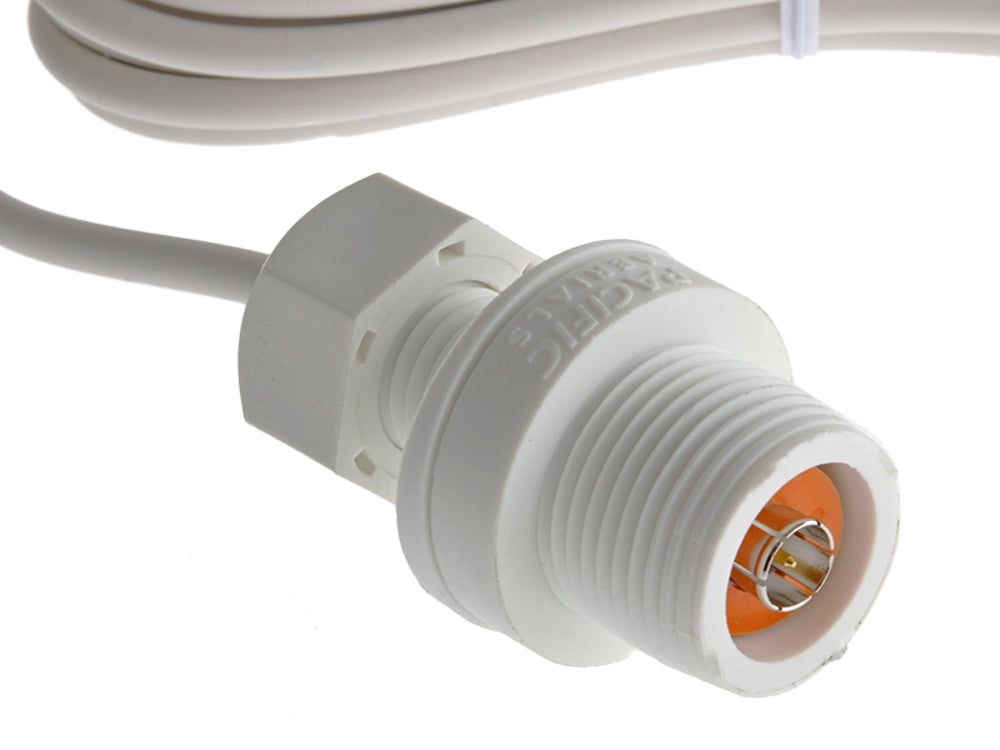

The Pacific Aerials P6116 is a low-profile through-deck antenna mount engineered specifically for the cableless SeaMaster Pro Series AM/FM marine antennas (such as the P6103, P6107, and P6183). Designed for sleek, flush installations on cabin tops, flybridges, or hardtops, the P6116 routes the coaxial lead directly through the deck core, leaving no exposed cabling or surface-mounted junction boxes.

Molded from UV-stabilized, glass-filled nylon, the P6116 features a 16mm threaded mounting stem that secures through the deck via an under-deck locknut. The mount comes factory pre-wired with 5.0 meters (16.4 ft) of RG62 low-loss coaxial cable terminated with a standard DIN/Motorola automotive radio plug, providing a plug-and-play connection to marine stereo receivers.

Key Features

• Through-Deck Concealed Cabling: Routes the signal lead completely beneath the mounting surface for a watertight, tamper-proof installation.

• SeaMaster Pro Quick-Connect Interface: Cableless top thread allows SeaMaster Pro AM/FM antennas to be screwed on or removed in seconds.

• Factory-Fitted 5m RG62 Cable: Low-attenuation 93 Ω RG62 coaxial cable minimizes signal loss across AM and FM broadcast bands.

• Pre-Terminated Motorola Plug: Includes a pre-fitted DIN/Motorola car radio plug for direct connection to marine stereo head units.

• Glass-Filled Nylon Construction: Non-corrosive, high-strength polymer body resists saltwater, UV degradation, and physical strain.
