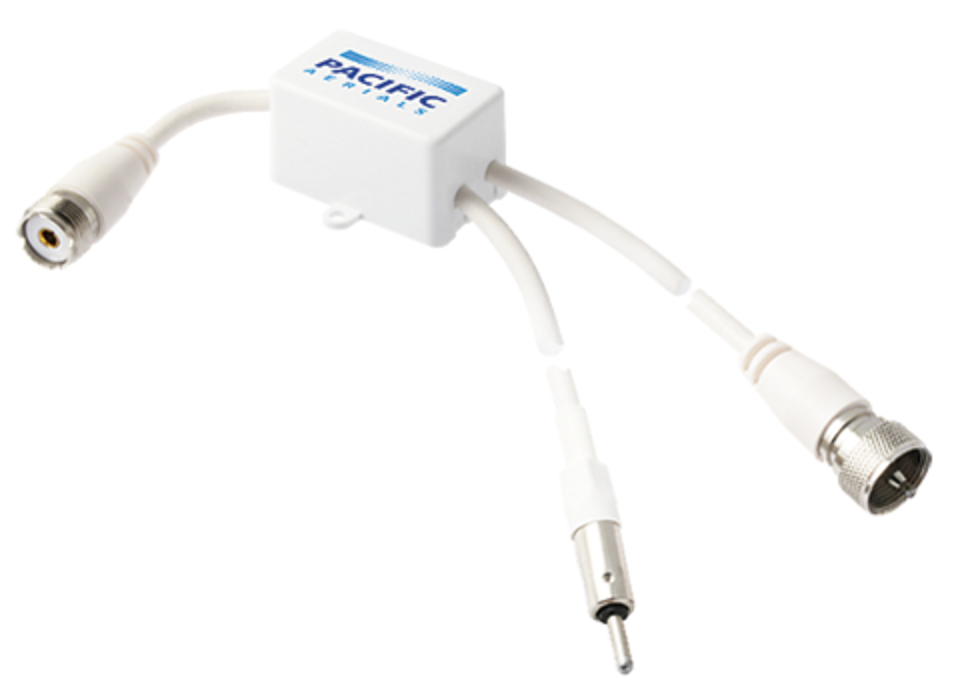

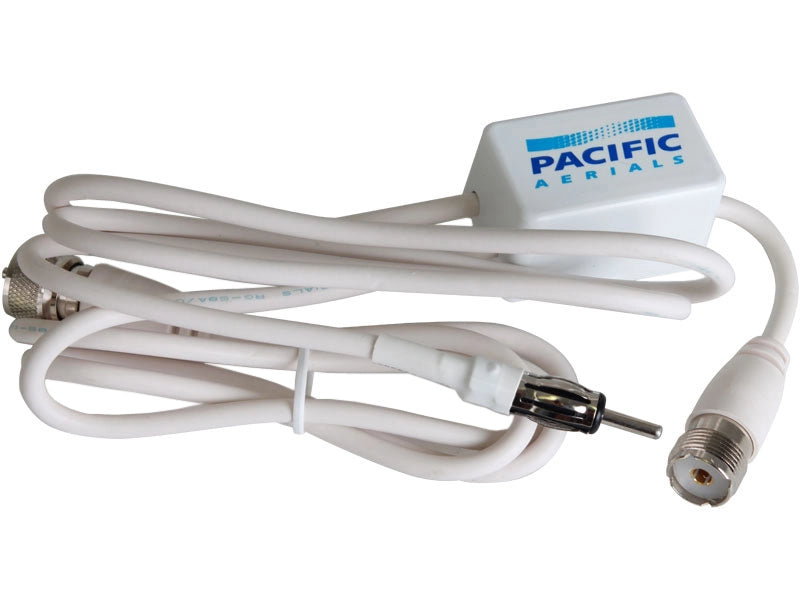

Pacific Aerials P7101 VHF AM FM Band Splitter

Pacific Aerials P7101 VHF / AM / FM Marine Band Splitter

The Pacific Aerials P7101 is an active internal RF signal band splitter engineered to route signals from a single marine VHF antenna to both a primary VHF transceiver and an onboard AM/FM entertainment stereo. By tapping into the existing VHF antenna, it eliminates the requirement for a separate dedicated broadcast radio antenna on the radar arch or cabin top.

The P7101 features internal frequency-selective filter circuitry that isolates two radio bands without degrading main VHF communication power or reception quality. Supplied pre-wired with standard marine connectors—including a PL259 plug for the VHF radio and a Motorola plug for the AM/FM receiver—the compact module provides a clean, space-saving installation behind dash panels.

Key Features

• Single Antenna Operation: Drives both marine VHF transceiver and AM/FM broadcast stereo from a single high-gain VHF antenna.

• Frequency Isolation Filtering: Prevents high-power VHF transmission energy from damaging sensitive AM/FM stereo tuner front-ends.

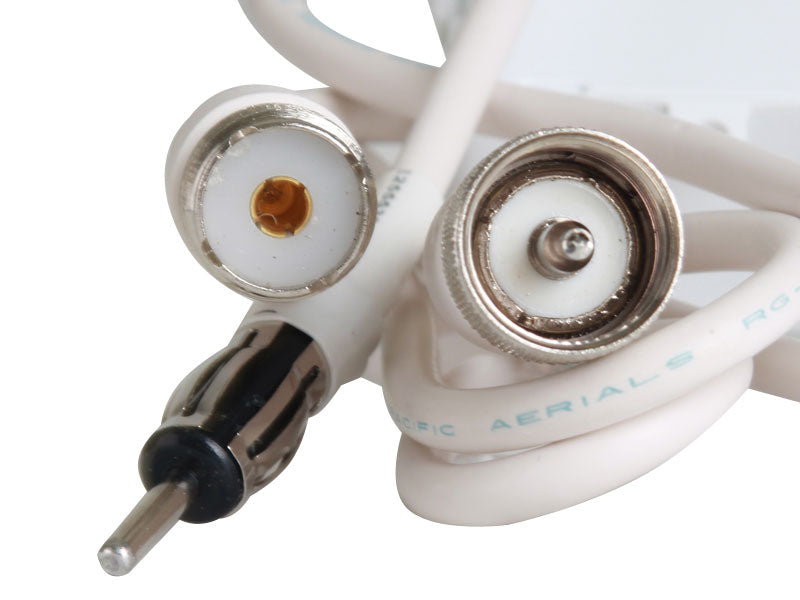

• Pre-Terminated Cabling: Pre-wired leads equipped with PL259 and Motorola plugs for immediate plug-and-play installation.

• Compact Footprint: Ultra-lightweight housing installs easily inside helm consoles or dashboard spaces.

• Universal Radio Compatibility: Compatible with all standard 50 Ω marine VHF radios and standard 93 Ω AM/FM entertainment head units.
