Peplink ANT-MB-42G-S-B-6 Mobility 42G Antenna

Peplink Mobility 42G 7-in-1 Combo Antenna (ANT-MB-42G-S-B-6)

The Peplink ANT-MB-42G-S-B-6 (Mobility 42G) is an enterprise-grade, IP68-rated 7-in-1 Combination Antenna engineered for mobile, marine, and public safety vehicular applications. Combining four cellular elements (4 * 4 MIMO LTE/5G), two dual-band Wi-Fi elements (2 * 2 MIMO Wi-Fi 6), and an active GPS/GLONASS element into a single low-profile housing, it eliminates roof clutter while maximizing signal gain across ultra-wideband cellular frequencies ranging from 600 MHz to 6000 MHz.

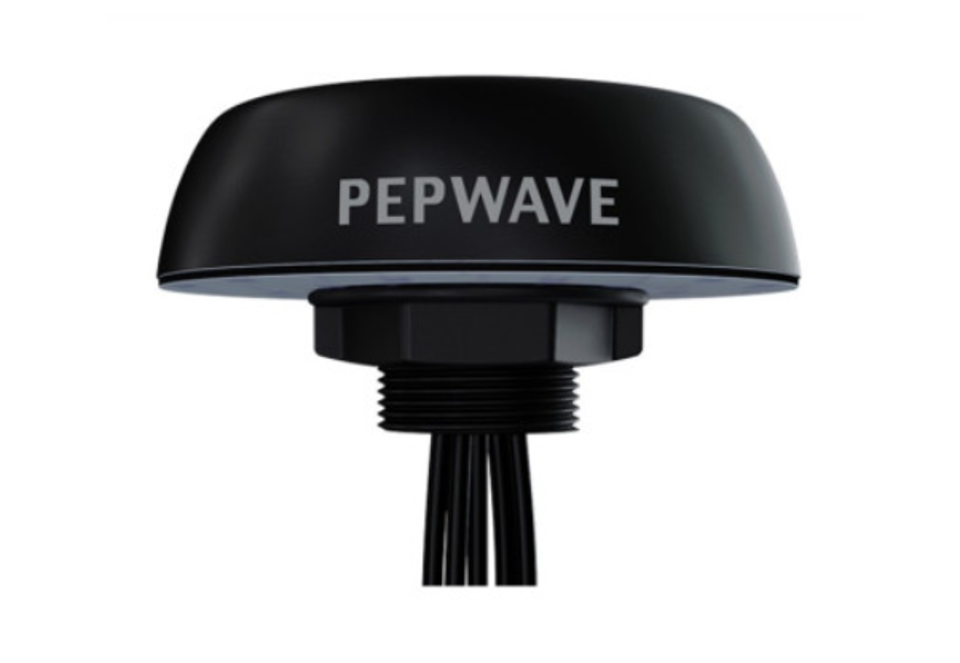

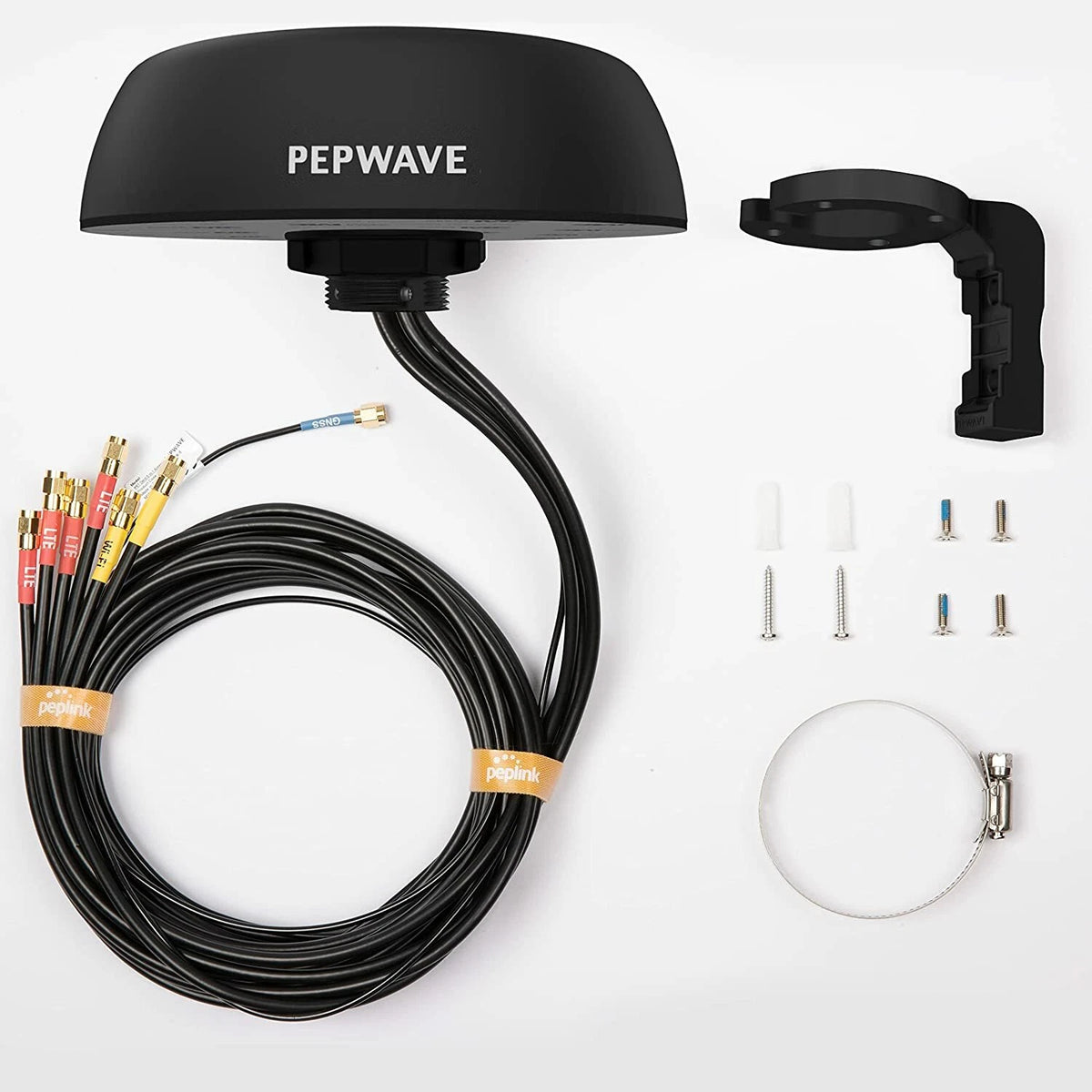

Housed in a UV-stable, vandal-resistant black dome, the ANT-MB-42G-S-B-6 comes pre-terminated with low-loss 6.5 ft (2 m) cable assemblies and SMA/RP-SMA connectors for direct plug-and-play attachment to Peplink MAX and Pepwave routers (such as the MAX BR1, Transit, or HD2/HD4 series). Its heavy-duty bolt-through mounting architecture ensures a watertight seal on boat hardtops, vehicle roofs, and outdoor enclosures.

Key Features

• 7-in-1 High-Density Integration: Houses 4  5G/LTE elements, 2  Wi-Fi elements, and 1  GPS element inside a single aerodynamic dome.

• 5G & Wi-Fi 6 Ready: Covers 600 - 6000 MHz cellular bands (including C-band and CBRS) and 2.4/5.0 GHz dual-band Wi-Fi.

• IP68 Submersible Waterproofing: Fully sealed against dust and continuous high-pressure water submersion for marine and outdoor vehicle environments.

• Active High-Gain GPS/GLONASS: Integrated active LNA GPS receiver ensures accurate location tracking for fleet management and AV systems.

• Vandal-Resistant Design: High-impact UV-resistant enclosure withstands physical impacts, tree branch strikes, and severe weather exposure.

Specifications
