Peplink ANT-MR-40G-S-W-6 Maritime 40G Antenna

Peplink Maritime 40G 5-in-1 Marine Antenna (ANT-MR-40G-S-W-6)

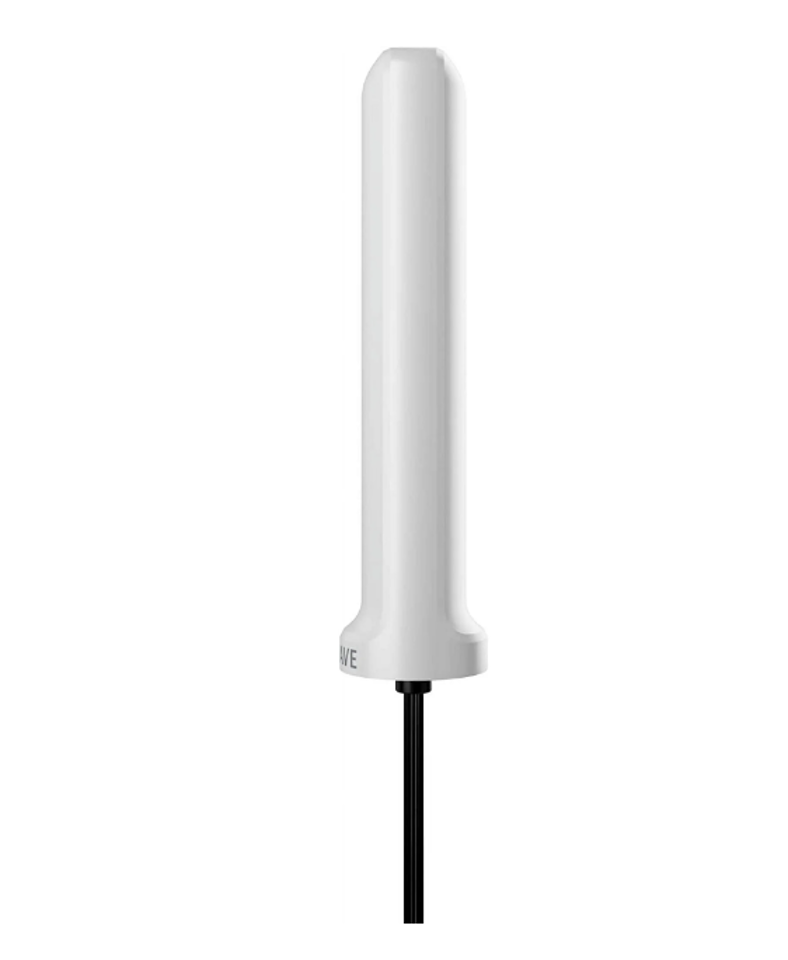

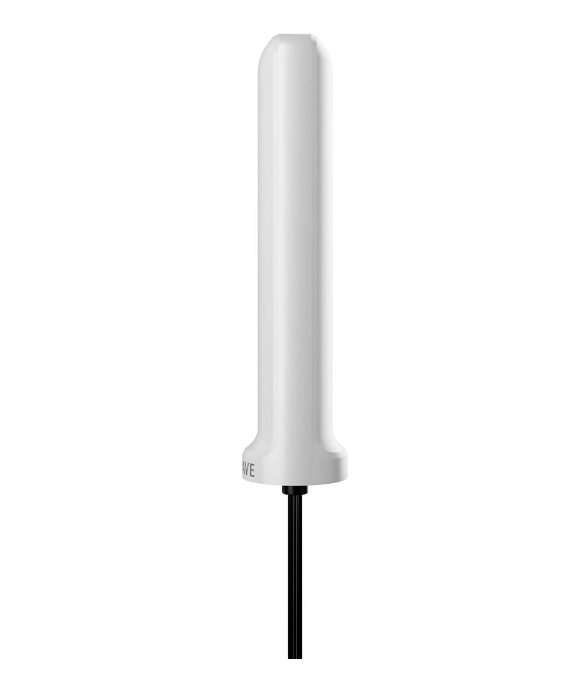

The Peplink ANT-MR-40G-S-W-6 (Maritime 40G) is a heavy-duty, marine-grade 5-in-1 Omnidirectional Antenna designed specifically for high-performance cellular data communication on yachts, commercial vessels, and offshore platforms. Housing four high-gain cellular elements (4 * 4 MIMO LTE/5G) and an active GPS/GLONASS element inside a UV-resistant radome, it delivers long-range offshore connectivity across ultra-wideband frequencies spanning 600 MHz to  6000 MHz.

Built to endure harsh salt-spray and high-wind environments, the Maritime 40G features an IP68 waterproof rating and an integrated marine 1- 14 TPI thread mount base for standard marine deck and mast fittings. Pre-terminated with low-loss 6.5 ft (2 m) LMR-200 equivalent coaxial cable assemblies and SMA connectors, it interfaces directly with Peplink MAX BR1, Transit, and HD-series multi-LTE/5G routers.

Key Features

• 5-in-1 Marine Integration: Combines 4 * 5G/LTE elements and 1 * GPS element inside a single aerodynamic marine radome.

• Global 5G & LTE Band Support: Wideband coverage from 600 MHz to  6000 MHz supports global 5G, LTE-A Pro, C-band, and CBRS frequency bands.

• High Offshore Gain Profile: Omnidirectional radiation pattern engineered for stable high-seas cellular reception during vessel pitch and roll.

• IP68 Submersible Sealing: Built with a hermetically sealed enclosure resistant to salt air, UV yellowing, and continuous water immersion.

• Standard Marine Mounting Base: Features an integrated 1"-14 TPI female thread mount compatible with standard marine antenna ratchets, extension masts, and deck mounts.
