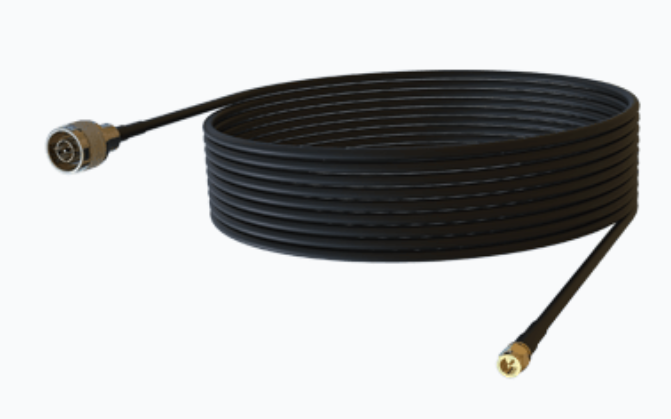

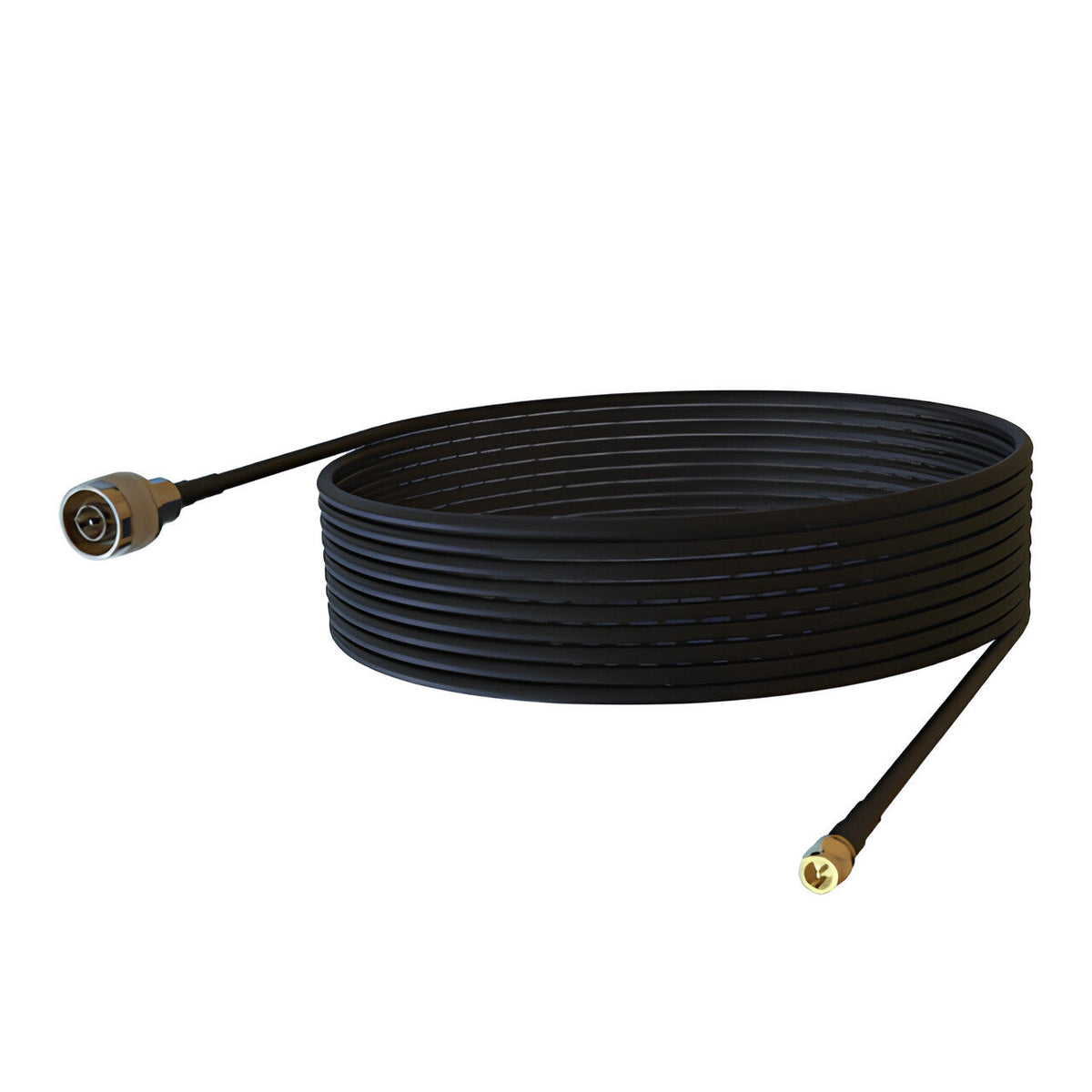

Poynting A-CAB-049 10m HDF-195 Low-Loss Cable Assembly
The Poynting A-CAB-049 is a 10-m (32.8 ft) high-performance HDF-195 low-loss coaxial cable assembly designed for cellular (LTE/5G), Wi-Fi, and marine RF antenna installations. Terminated with a weather-resistant N-Type Male connector on one end and a precision SMA Male connector on the other, this cable connects outdoor marine and omni-directional antennas (such as Poynting OMNI and OMNI-291 series) directly to onboard cellular routers, 5G gateways, and modems.
Utilizing a double-shielded construction (aluminum foil wrap plus high-density tinned copper braid), the HDF-195 dielectric core offers significantly lower signal attenuation compared to standard RG-58 cable over long physical runs. The UV-stabilized, weather-resistant outer jacket ensures long-term durability when routed through vessel cable conduits, arches, and exterior masts exposed to severe marine environment conditions.
Key Features
-
Low-Loss HDF-195 Dielectric: Superior attenuation characteristics compared to RG-58, maximizing signal integrity for high-frequency 4G/5G and 2.4/5 GHz Wi-Fi bands.
-
Double-Shielded RF Isolation: Aluminum foil layer and tinned copper braid shield eliminate external electromagnetic interference and prevent RF signal leakage.
-
Direct Antenna-to-Router Extension: Interconnects female N-Type marine antennas directly to female SMA cellular router ports without additional intermediate adapters.
-
UV & Marine-Grade Weather Resistance: Black PE/PVC outer jacket resists continuous UV radiation, salt spray, moisture, and mechanical strain.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Poynting Antennas |
| Part Code / SKU | A-CAB-049 |
| Cable Type | HDF-195 Low-Loss Coaxial Cable |
| Cable Length | 10.0 m (32.8 ft) |
| Connector A Interface | N-Type Male (Plug) with Brass/Nickel Plating |
| Connector B Interface | SMA Male (Plug) with Gold-Plated Center Pin & Threaded Ring |
| Impedance | 50 Ω Nominal |
| Frequency Range | DC to 6.0 GHz (Optimized for 698-3800 MHz 4G/5G) |
| Attenuation (Approx. @ 900 MHz) | Approx. 0.25 dB/m (Approx. 2.5 dB total cable loss) |
| Attenuation (Approx. @ 2500 MHz) | Approx. 0.45 dB/m (Approx. 4.5 dB total cable loss) |
| Outer Cable Diameter | Approx. 4.95 mm (0.195 in) |
| Minimum Bend Radius | 25 mm (0.98 in) |
| Outer Jacket Material | UV-Stabilized Black Polyethylene (PE) / PVC |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Compliance & Approvals | CE, RoHS, MIL-STD-810G Environmental Testing |
