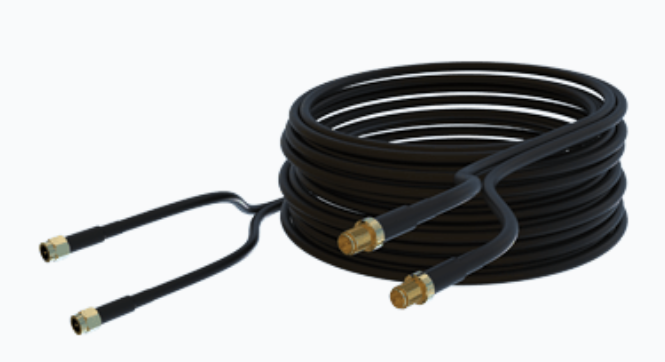

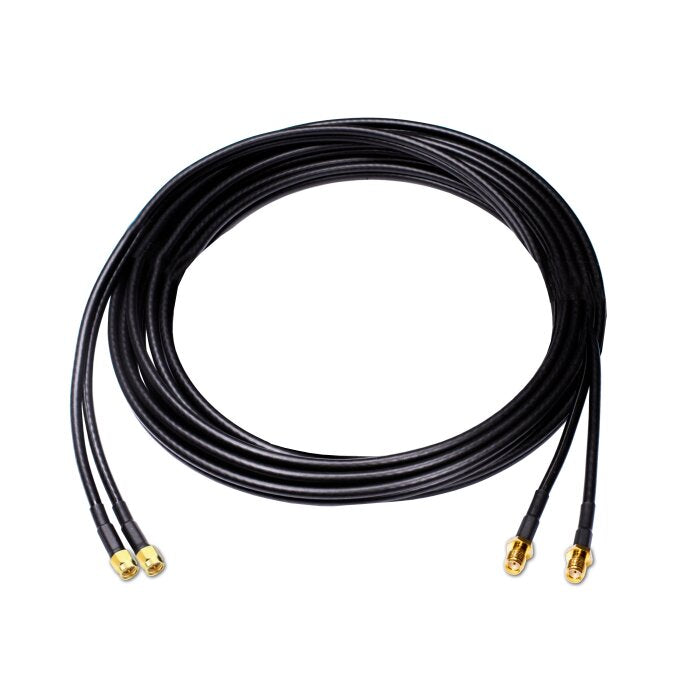

Poynting A-CAB-109 10m Twin HDF-195 Cable SMA Male to Female

Poynting A-CAB-109 10m Twin HDF-195 Low-Loss Cable Assembly

The Poynting A-CAB-109 is a 10-meter (32.8 ft) high-performance twin (dual-run) HDF-195 low-loss coaxial extension cable assembly engineered specifically for 2 * 2 MIMO cellular (4G/5G}) and dual-band Wi-Fi antenna installations. Featuring two bonded HDF-195 coaxial lines terminated with twin SMA Male connectors on one end and twin SMA Female connectors on the other, this cable simplifies running dual antenna feeds from marine LTE/5G antennas (such as Poynting EPNT-2, OMNI-402, or OMNI-496) down to onboard routers and modems.

Utilizing bonded twin HDF-195 coaxial leads, the A-CAB-109 minimizes cable clutter and pulling friction through vessel conduits while maintaining excellent isolation between the two RF channels. Double-shielded construction (aluminum foil wrap plus tinned copper braid) over a low-density foam dielectric ensures low signal attenuation across 4G/5G frequency bands up to 6 GHz. The entire assembly is jacketed in a UV-stabilized, weather-resistant outer sheath designed for marine environments.

Key Features

• Optimized for 2 * 2 MIMO Routers: Dual-line bonded design runs two cellular/Wi-Fi feeder channels simultaneously, reducing installation effort during wire pulls.

• Low-Loss HDF-195 Dielectric: Delivers significantly lower signal attenuation than standard RG-58, preserving precious cellular signal gain over 10 m runs.

• Low Inter-Channel Crosstalk: High-isolation double shielding (foil + tinned braid) prevents signal leakage and interference between the two 2 * 2  MIMO antenna paths.

• Straightforward Line Extension: SMA Female ends mate directly to standard antenna fly-leads, while SMA Male ends plug into cellular gateways/routers (Peplink, Cradlepoint, Teltonika).

• UV & Marine-Grade Outer Jacket: Durable black PE/PVC outer jacket withstands long-term UV exposure, salt spray, moisture, and engine room ambient heat.

Specifications
